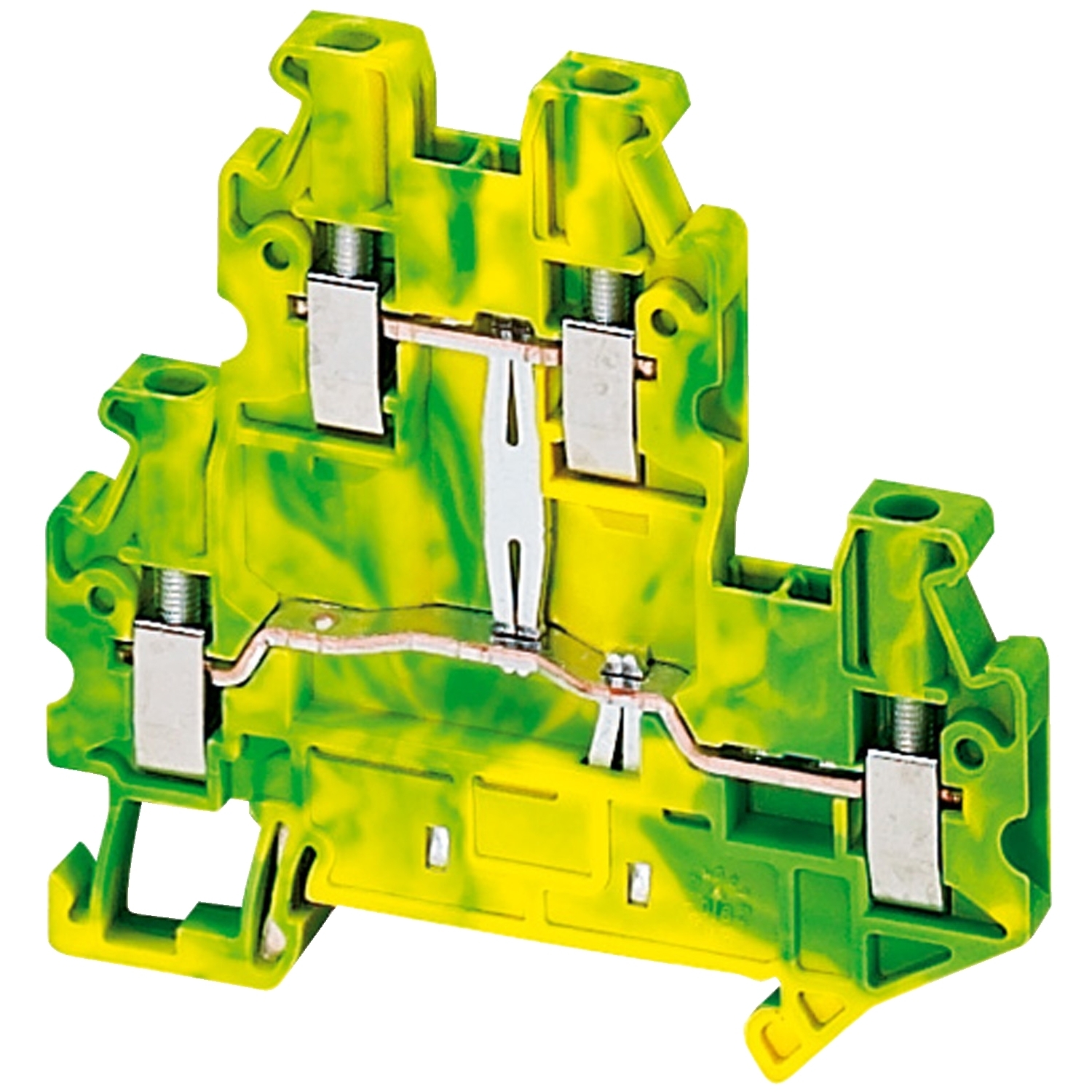

NSYTRV24DPE Linergy 2-Level 2-Terminal Grounding Terminal Block, 26 to 12 AWG Solid/Stranded Wire, 1 Poles, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV24DPE
- Item #:
- 528955
NSYTRV24DPE Linergy 2-Level 2-Terminal Grounding Terminal Block, 26 to 12 AWG Solid/Stranded Wire, 1 Poles, Clip-Fit Mount
- MFR #:
- NSYTRV24DPE
- Item #:
- 528955
Linergy TR is terminal block for protective earth. It belongs to linergy protective earth terminal block with 2.5 mm nominal cross section. Mounting by clip-on and top connection by Two-level 2x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, IECEx, GL, LR).
Manuals & Documentation
| Catalog Number | NSYTRV24DPE |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Green;yellow |
| Connection | 1 x screw terminal upstream;1 x screw terminal downstream |
| Material | Polyamide 6/6: insulating case |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403762724&lang=en-us |
| GTIN | 03606480531873 |
| Item Type | Protective earth;Terminal block;Spacial enclosures |
