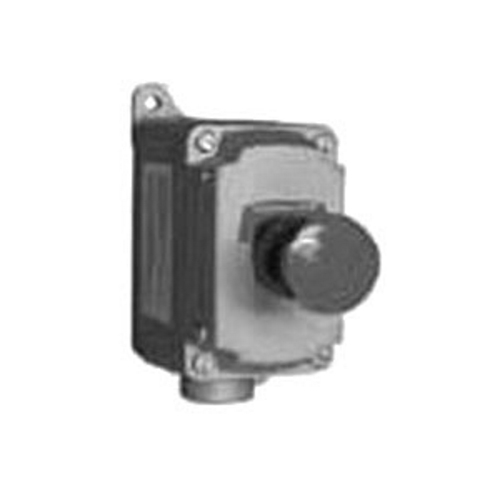

1-Circuits 1-Gang Pushbutton Switch; Maintained Action, 1 NO and 1 NC
- MFR:
- Appleton Electric
- MFR #:
- EFDCB175UM1
- UPC:
- 781381701341
- Item #:
- 528006
1-Circuits 1-Gang Pushbutton Switch; Maintained Action, 1 NO and 1 NC
- MFR #:
- EFDCB175UM1
- UPC:
- 781381701341
- Item #:
- 528006
EFDCB Series 1-Gang 1 Circuit Push Button Switch, Action: Maintained, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Red Mushroom Head, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN
Manuals & Documentation
| Catalog Number | EFDCB175UM1 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Maintained |
| Application | For Remote Control Of Motors |
| Enclosure | NEMA 3, 7CD, 9EFG |
| Mounting | Surface |
| Special Features | Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered |
| Standard | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| UPC | 781381701341 |
| GTIN | 00781381701341 |
| Item Type | EFDCB Series 1-Gang 1 Circuit Push Button Switch |
