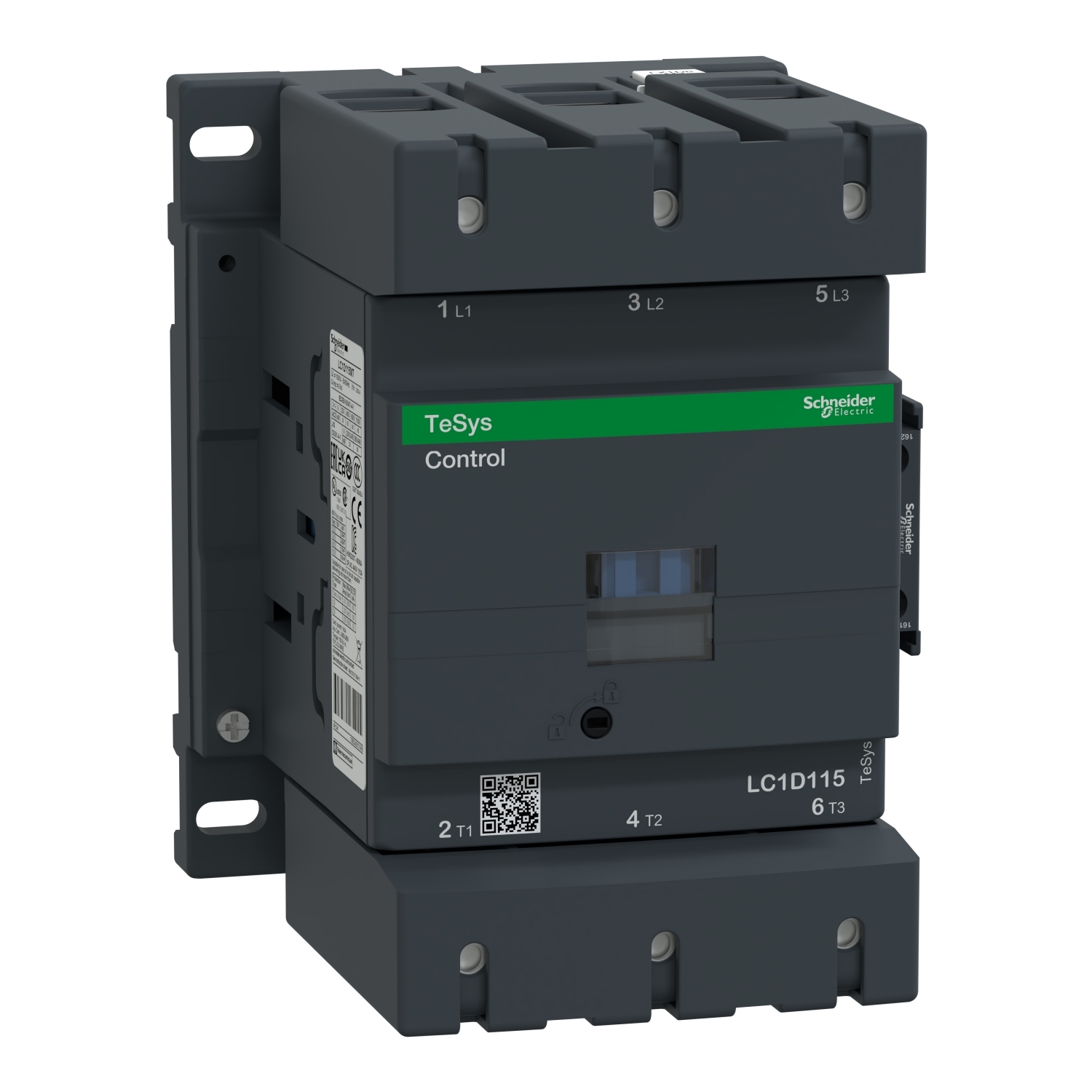

LC1D115T7 TeSys D D-Line LC1D IEC Contactor, 480/1000 V AC, 300 V DC V Coil, 155/200 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D115T7
- Item #:
- 52773
LC1D115T7 TeSys D D-Line LC1D IEC Contactor, 480/1000 V AC, 300 V DC V Coil, 155/200 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D115T7
- Item #:
- 52773
IEC contactor, TeSys D, nonreversing, 115A, 75HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 480VAC 50/60Hz coil, open
Manuals & Documentation
| Catalog Number | LC1D115T7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 480 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end;power circuit: connector 2 10-50 mm² - cable |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=612746&lang=en-us |
| GTIN | 03389110377729 |
| Item Type | Contactor |
| Cross Reference Products | Rockwell A110301151|Rockwell A75301151|Rockwell A95301151|Schneider 8910DPA122V06|Schneider 8910DPA123V06|Schneider LC1D11500T6|Schneider LC1D11500T7|Schneider LC1D115T6|Schneider LC1D115T7|Siemens 3RT10461AV60 |
