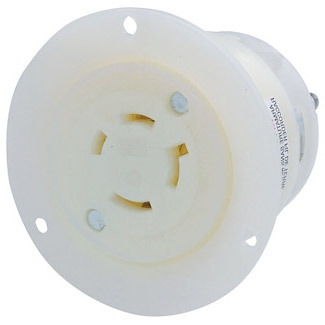

2466 3-Phase Non-Grounding Receptacle Locking Flanged Outlet, 347/600 V AC, 20 A, 4 Poles, 4 Wires, White
- MFR:
- Leviton
- MFR #:
- 2466
- UPC:
- 078477806371
- Item #:
- 524760
2466 3-Phase Non-Grounding Receptacle Locking Flanged Outlet, 347/600 V AC, 20 A, 4 Poles, 4 Wires, White
- MFR #:
- 2466
- UPC:
- 078477806371
- Item #:
- 524760
| Catalog Number | 2466 |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | White |
| Connection | Back Wired |
| Material | Nylon |
| Mounting | Flange |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | 3 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399) |
| UPC | 078477806371 |
| GTIN | 00078477806371 |
| Item Type | Locking Flanged Outlet |
| Size | 2.50 Dia x 1.78 H |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Temperature Rating | -40 to +60 DEG C |
| Voltage Rating | 347;600 |
| Wire Size | 16-8 AWG |
