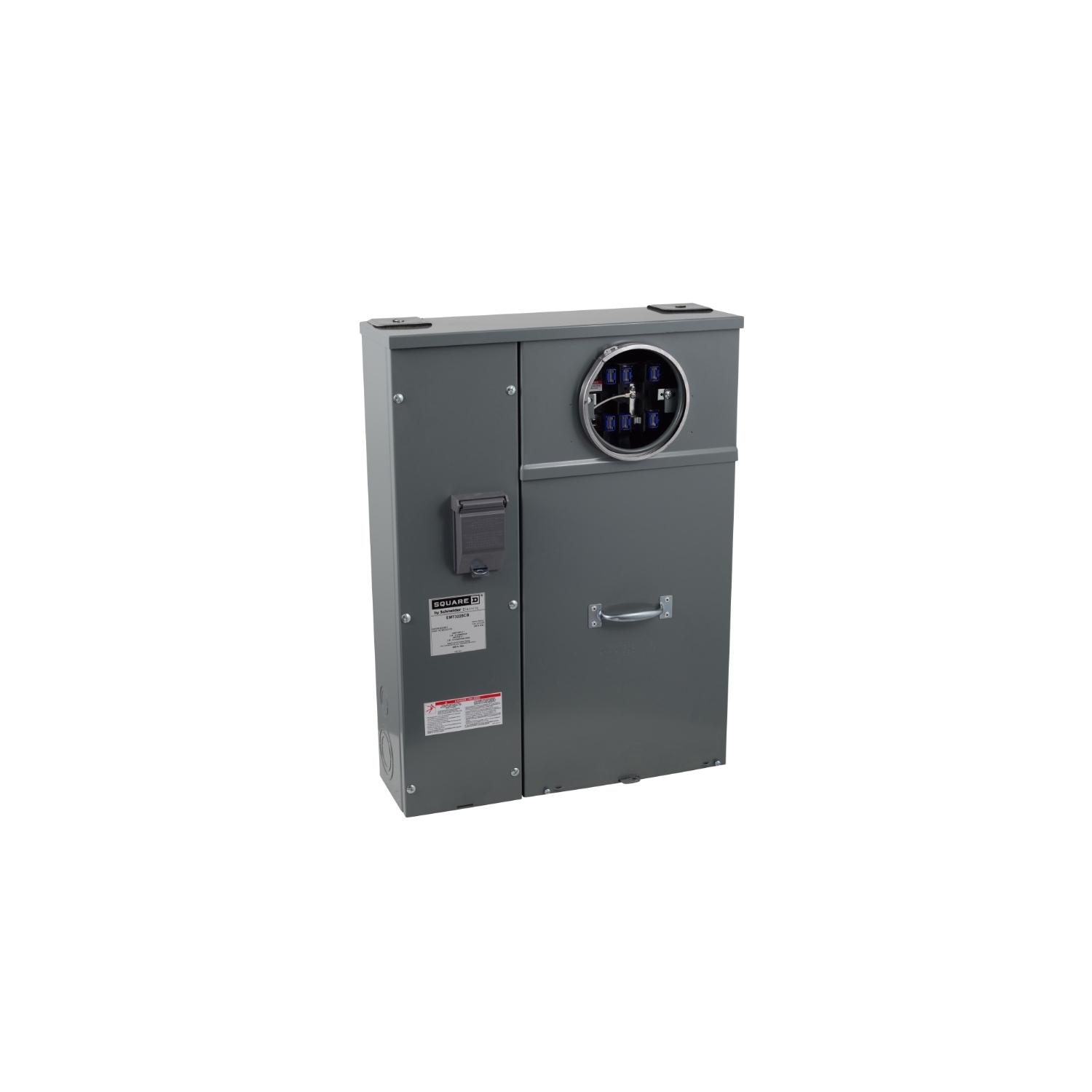

EMT3225CB Individual Meter Main, Test Block Bypass, OH, UG, 200 Amp, 3 Phase, 4 Wire, 208Y/120V or 240/120V, Delta, 7 Jaw
- MFR:
- Schneider Electric
- MFR #:
- EMT3225CB
- UPC:
- 785901574088
- Item #:
- 524145
EMT3225CB Individual Meter Main, Test Block Bypass, OH, UG, 200 Amp, 3 Phase, 4 Wire, 208Y/120V or 240/120V, Delta, 7 Jaw
- MFR #:
- EMT3225CB
- UPC:
- 785901574088
- Item #:
- 524145

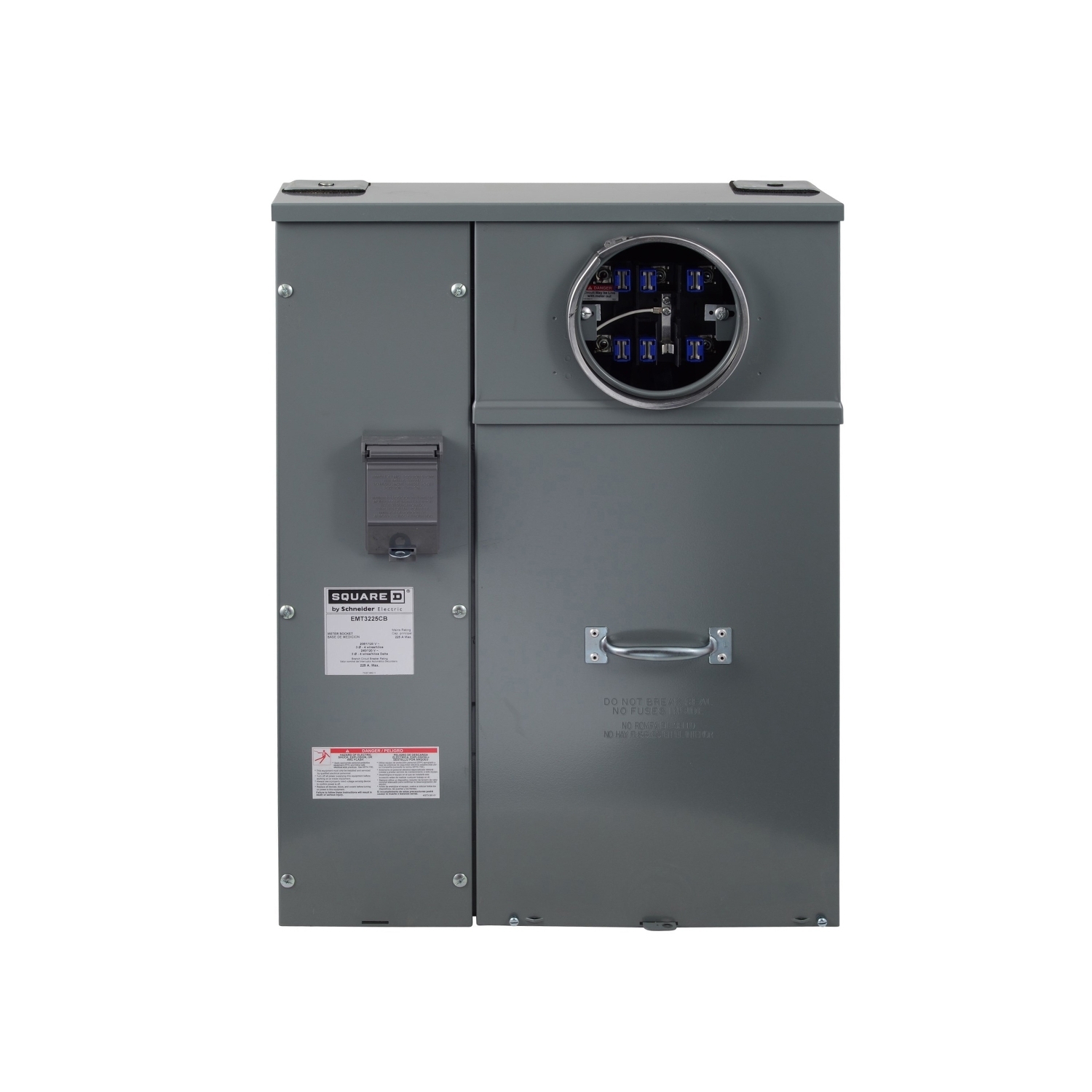

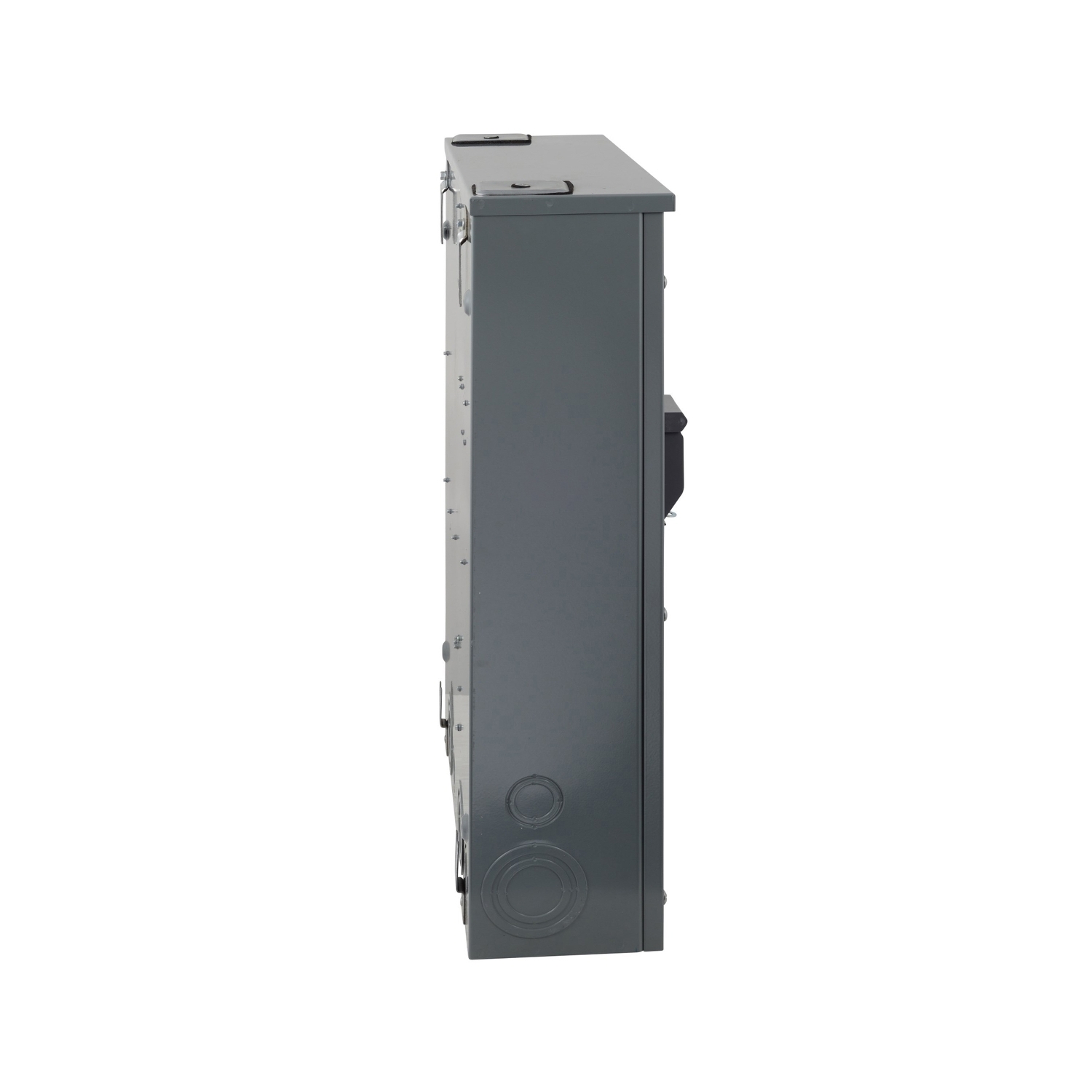

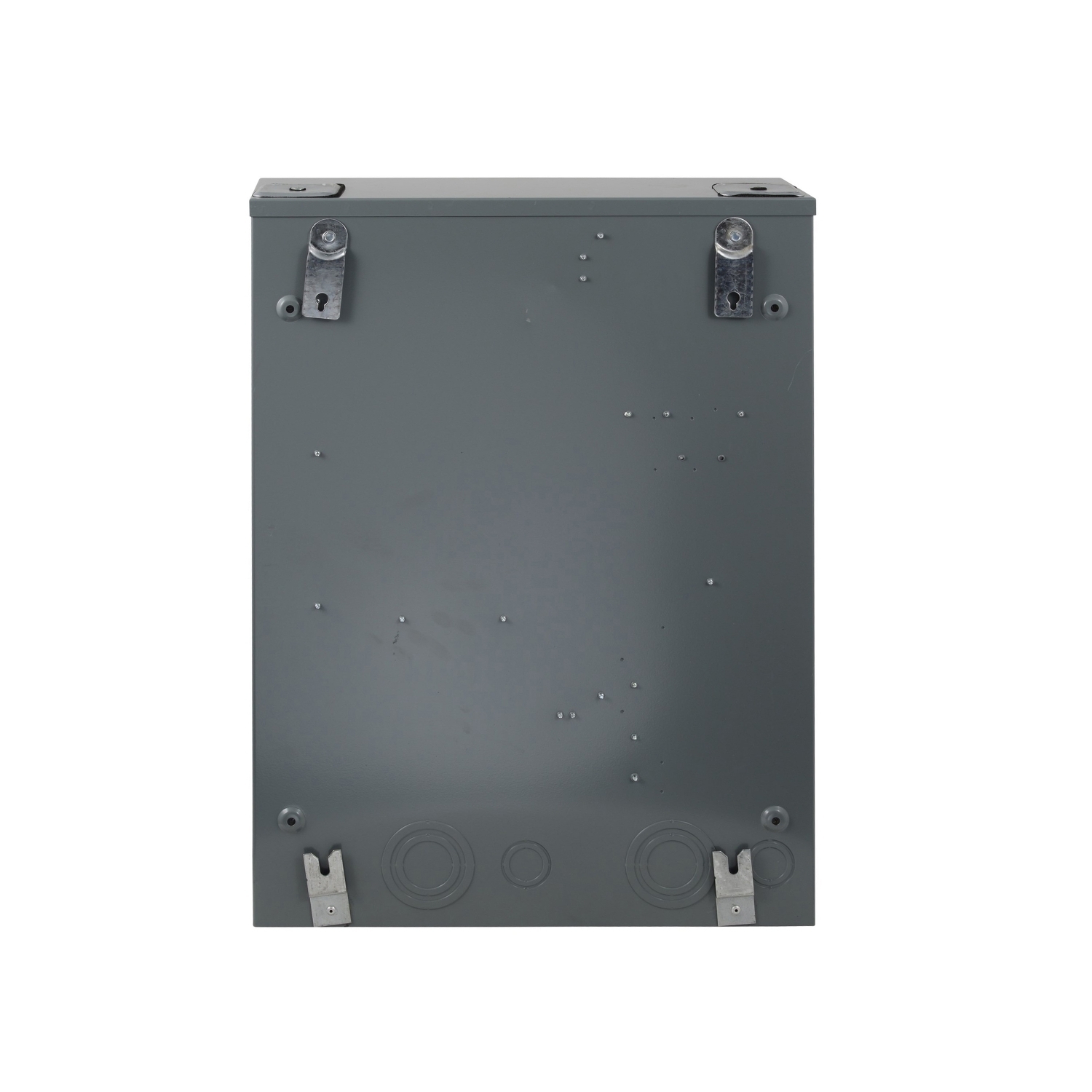

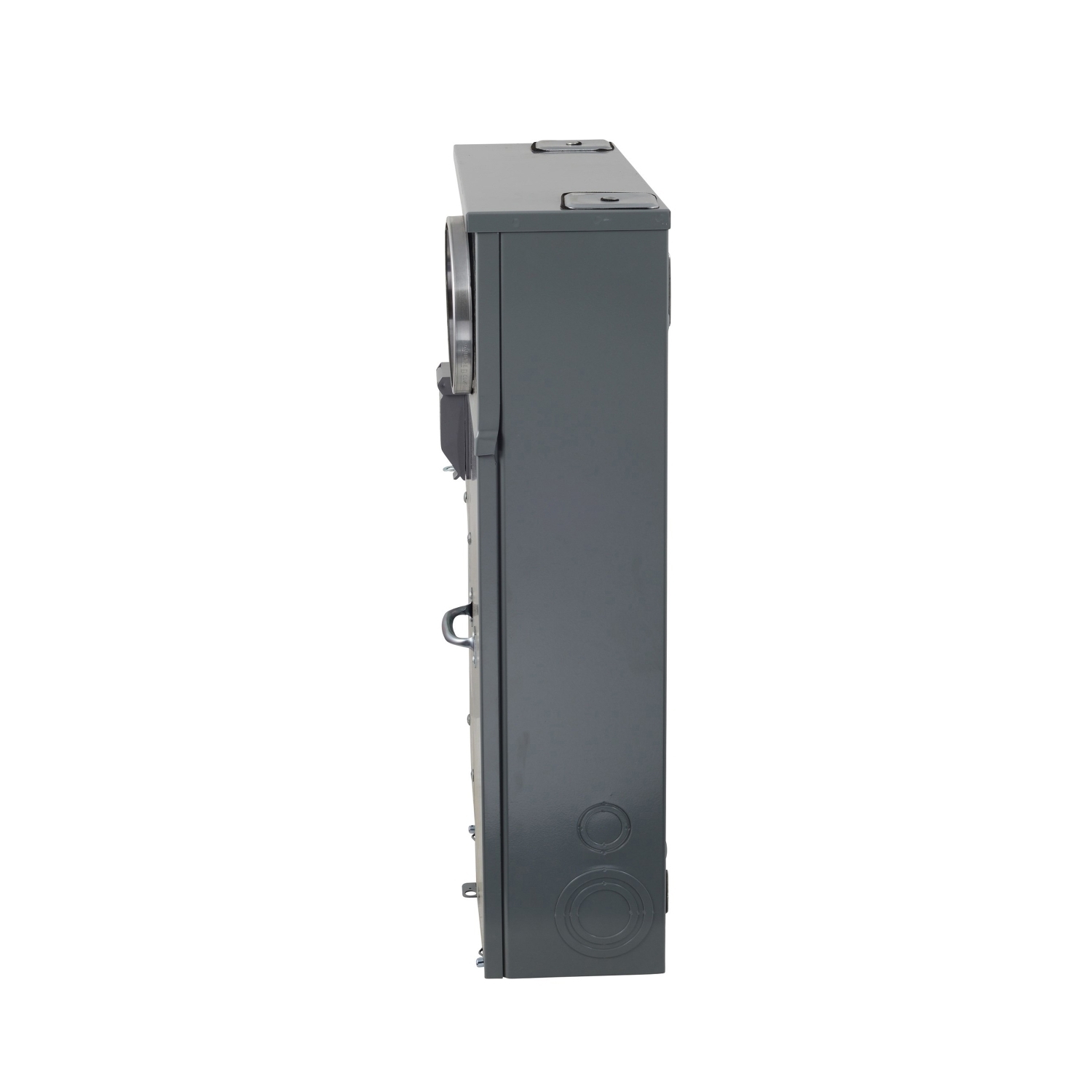

Individual meter main with test block bypass meets EUSERC requirements. This individual meter socket is designed for 3 phase 4W incoming system and outgoing service. The rated operational voltage is 208Y/120 VAC or 240/120 VAC Delta. The meter socket can be feed from an overhead or underground service. This individual meter socket has a ringed socket with 7 jaws. The meter socket is rated 200 A. The lugs will accept 6 AWG to 300 kcmil copper or aluminum wire. This unit has a NEMA 3R flush mounting enclosure that is 30.00 inches tall, 22.44 inches wide and 7.50 inches deep. This Individual meter main with test block bypass is UL listed.
Manuals & Documentation
| Catalog Number | EMT3225CB |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Bypass Type | Review |
| Enclosure | Steel |
| Mounting | Flush |
| Phase | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357255&lang=en-us |
| UPC | 785901574088 |
| GTIN | 00785901574088 |
| Item Type | Meter Socket;Ringed |
| Width | 22.44 |
| Width UOM | Inch |
| Height | 30.0 |
| Height UOM | Inch |
| Depth | 7.5 IN |
