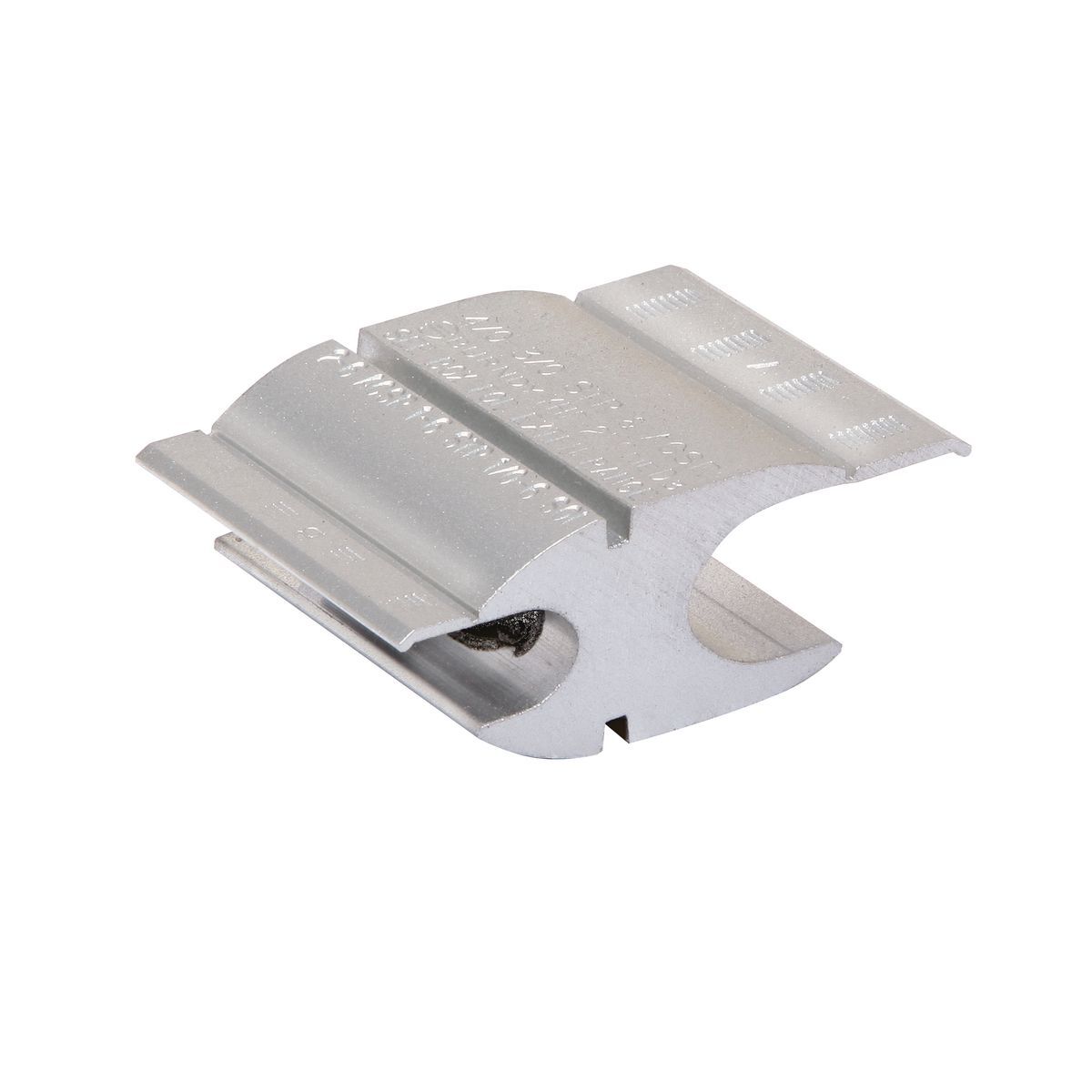

YHN450 Type YHN Compression Line Tap Connector, Figure H Shape, 4/0 AWG, 400 kcmil Min Run/Tap, 4/0 AWG, 400 kcmil Max Run/Tap, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YHN450
- UPC:
- 781810139400
- Item #:
- 519474
YHN450 Type YHN Compression Line Tap Connector, Figure H Shape, 4/0 AWG, 400 kcmil Min Run/Tap, 4/0 AWG, 400 kcmil Max Run/Tap, Aluminum
- MFR #:
- YHN450
- UPC:
- 781810139400
- Item #:
- 519474
Manuals & Documentation
| Catalog Number | YHN450 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Copper, Aluminum Or ACSR And Compact Conductors |
| Material | Aluminum |
| Special Features | Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Die Index: N Element A, Cable Diameter Range (tap): 0.522 - 0.75 IN, Installation Tool: Mechanical Or Hydraulic Installation Tooling, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-N Die, (3), Y45 Tool, S-N Die, (3), Y46 Tool, P-N Die, (3), Cable Diameter Range (run): 0.522 - 0.75 IN, Conductor Type: Run: Aluminum Stranded, Copper Stranded, Tap: Aluminum Stranded, Copper Stranded, Conductor Size (run - Range): 4/0 AWG - 400 KCMIL, Shape: H, Conductor Size (tap Range): 4/0 AWG - 400 KCMIL |
| UPC | 781810139400 |
| GTIN | 00781810139400 |
| Item Type | YHN |
