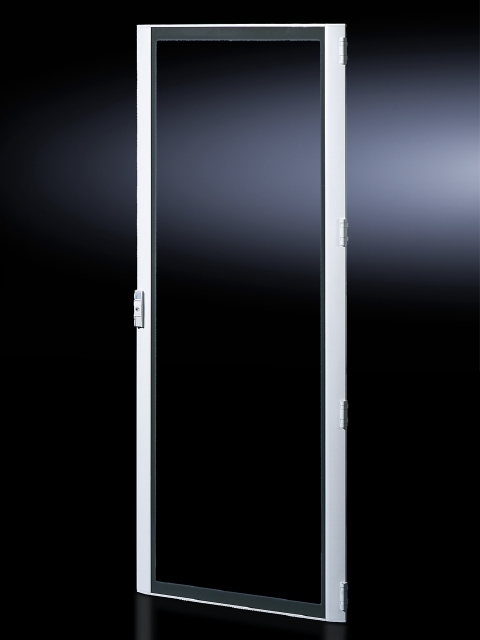

8610825 TS Series Glazed Door With 26 in W x 80 in H Viewing Area, For Use With TS, TS IT, SE8 Series 2200 mm H x 800 mm W Enclosure, Die Cast Zinc/Extruded Aluminum/Glass
- MFR:
- Rittal
- MFR #:
- 8610825
- UPC:
- 639889873803
- Item #:
- 516986
8610825 TS Series Glazed Door With 26 in W x 80 in H Viewing Area, For Use With TS, TS IT, SE8 Series 2200 mm H x 800 mm W Enclosure, Die Cast Zinc/Extruded Aluminum/Glass
- MFR #:
- 8610825
- UPC:
- 639889873803
- Item #:
- 516986
Glazed door, for TS, TS IT, SE, material: Frame: Extruded aluminium section, Corner pieces: Die-cast zinc, Viewing window: Single-pane safety glass, 3 mm, surface: Powder-coated, color: Frame: RAL 7035, Corner pieces: RAL 7035, Viewing window (printed mask on the inside): RAL 9005, supply includes: Viewing door frame with safety glass, Locking rod with double-bit insert, 180 hinges (4), description: Glazed doors for TS 8 instead of a sheet steel door or rear panel.
| Catalog Number | 8610825 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035 (Frame/Corner Pieces), RAL 9005 (Viewing Window) |
| Consist of | Glazed Door Frame with Safety Glass, Locking Rod with Double-Bit Insert, 180 Degrees Hinges (4 Pcs) |
| Material | Extruded Aluminum (Frame), Die-Cast Zinc (Corner Pieces), Single-Pane Safety Glass (Viewing Window) |
| RoHS Indicator | Yes |
| UPC | 639889873803 |
| GTIN | 00639889873803 |
| Item Type | Glazed Door |
| Length | 33.0710 |
| Length UOM | Inch |
| Width | 3.1500 |
| Width UOM | Inch |
| Height | 88.1890 |
| Height UOM | Inch |
| Weight | 44.092 |
| Weight UOM | Pounds |
