SQUARE D

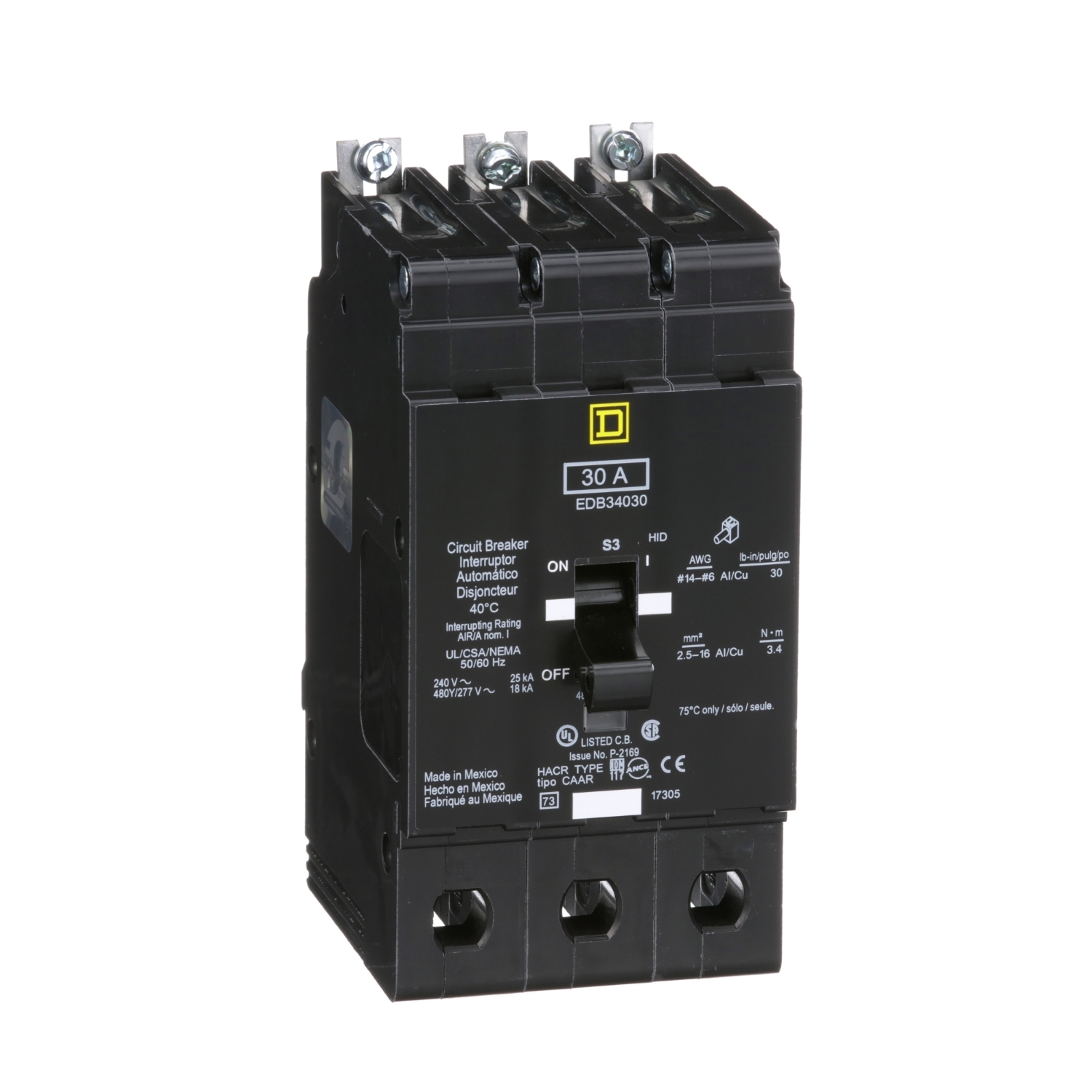

EDB34030 Type EDB Molded Case Standard E-FRAME Miniature Circuit Breaker, 277/480Y V AC, 30 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
EDB34030
UPC:
785901875260
Item #:
5162

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 30A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.

Manuals & Documentation
Catalog Number EDB34030
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396965&lang=en-us
UPC 785901875260
GTIN 00785901875260
Depth 4.05 IN
Cross Reference Products Eaton CUHGHB3030|Eaton EGB3032FFG|Eaton GHB3030|GEIndust TEY330|Grainger 3TW40|ITE BQD330|Schneider EDB34030|Siemens BQD330|SquareD EDB34030
