8800680 TS Series EMC Single Entry Gland Plate, 800 mm W, For Use With 400, 500, 600 and 800 mm D CM, TS Series Enclosure, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 8800680
- UPC:
- 639889341883
- Item #:
- 515251
8800680 TS Series EMC Single Entry Gland Plate, 800 mm W, For Use With 400, 500, 600 and 800 mm D CM, TS Series Enclosure, Sheet Steel
- MFR #:
- 8800680
- UPC:
- 639889341883
- Item #:
- 515251

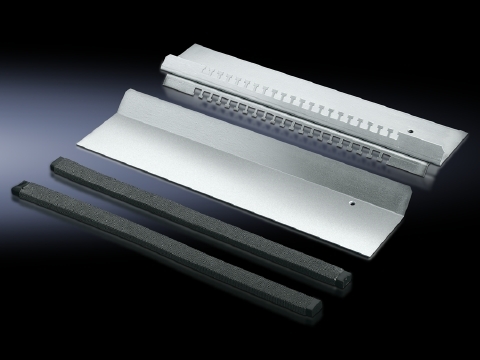

EMC gland plates, material: Sheet steel, surface: Zinc-plated, supply includes: 1 gland plate with T-head punching, 1 sliding gland plate, 2 IP/EMC gaskets, description: For shielded cables with a maximum diameter of 20 mm in conjunction with standard gland plates.
Features
- Combined EMC/IP seal provides low-resistance contact between cable shield and gland plate
| Catalog Number | 8800680 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Interior Installation |
| Finish | Zinc-Plated |
| Material | Sheet Steel |
| Special Features | Features: For Shielded Cables with Maximum 20 mm Diameter, Combined EMC/IP Seal provides for Low-Resistance Contact between Cable Shield and Base Plate |
| RoHS Indicator | Under Review |
| UPC | 639889341883 |
| GTIN | 00639889341883 |
| Item Type | EMC Base Plate |
| Length | 26.1810 |
| Length UOM | Inch |
| Width | 5.9060 |
| Width UOM | Inch |
| Height | 1.5750 |
| Height UOM | Inch |
| Weight | 5.842 |
| Weight UOM | Pounds |
