Legrand-Pass & Seymour

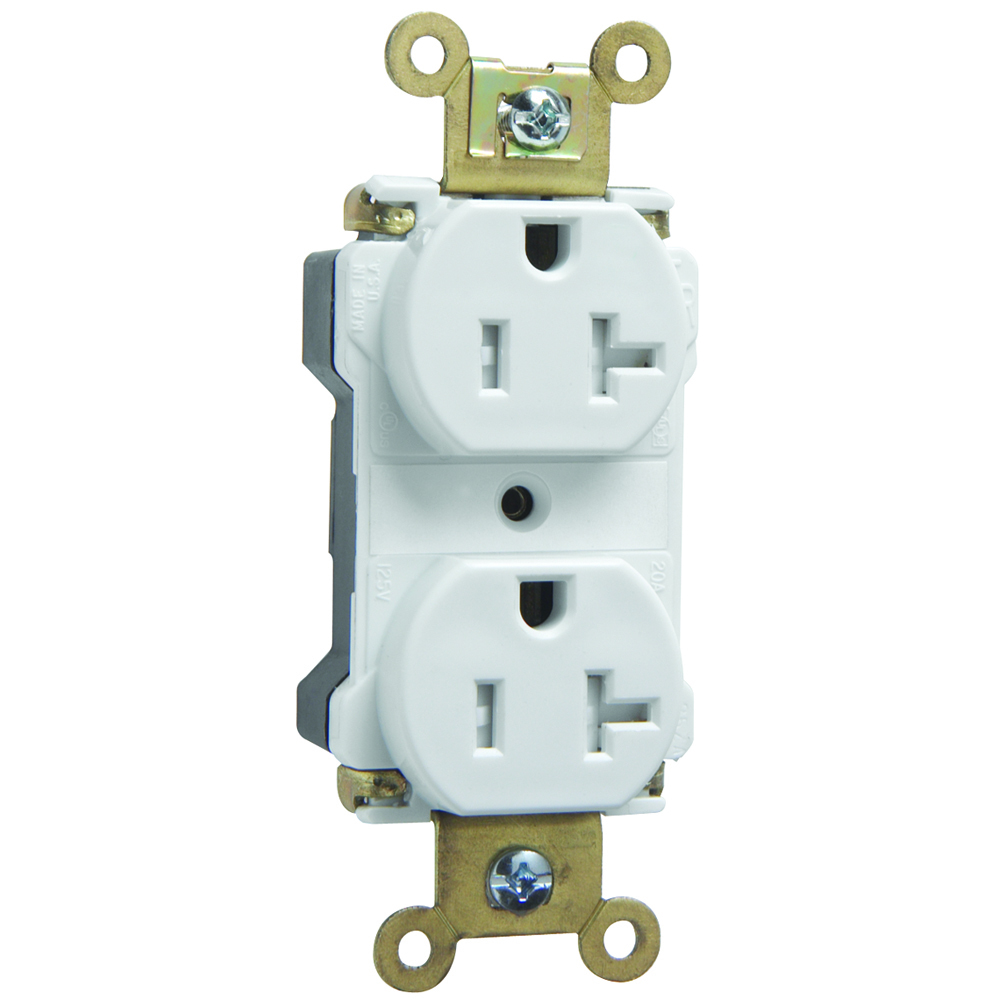

PTTR63W PlugTail Industrial Extra Heavy Duty Spec Grade Receptacle, 20 Amp, 125V, White

MFR:
Legrand-Pass & Seymour
MFR #:
PTTR63W
UPC:
785007860436
Item #:
51513

PlugTail Registered Industrial Extra Heavy-Duty Spec Grade Tamper-Resistant Receptacles, 20A, 125A

Catalog Number PTTR63W
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin United States
Made in USA Yes
Amperage Rating 20
Application Commercial
Color White
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Dual mechanical shutter system to help prevent insertion of foreign objects. Exclusive patented feature, circuit label on face allows permanent circuit identification. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground.
Standard cULus UL498
UPC 785007860436
GTIN 00785007860436
Item Type PlugTail™ Tamper-Resistant Spec Grade Receptacle, Extra Heavy-Duty
Size 1.625 L x .866 W x 3.281 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 60° C
Voltage Rating 125
Wire Size 12 AWG
