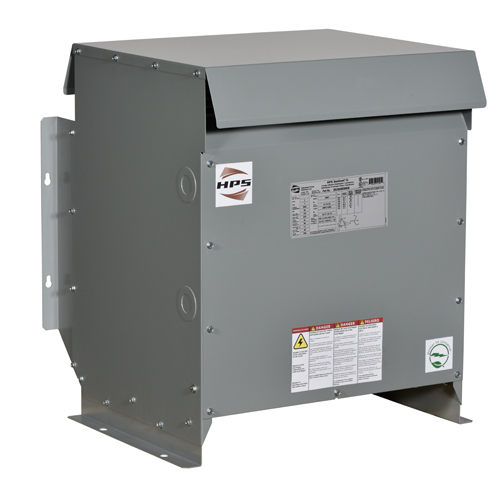

SG3L0075BE Sentinel G D16 3rd Generation Convection Cooled Energy Efficient Single to Dual Distribution Transformer, 208 V AC Primary, 120/240 VAC Secondary, 75 kVA Power Rating, 60 Hz, 1 Phase
- MFR:
- Hammond Power Solutions
- MFR #:
- SG3L0075BE
- UPC:
- 803423140519
- Item #:
- 514844
SG3L0075BE Sentinel G D16 3rd Generation Convection Cooled Energy Efficient Single to Dual Distribution Transformer, 208 V AC Primary, 120/240 VAC Secondary, 75 kVA Power Rating, 60 Hz, 1 Phase
- MFR #:
- SG3L0075BE
- UPC:
- 803423140519
- Item #:
- 514844
Optional infrared windows available
Manuals & Documentation
| Catalog Number | SG3L0075BE |
| Manufacturer | Hammond Power Solutions |
| Brand | HPS |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Enclosure | NH4-N3R - Indoor or Outdoor |
| Frequency Rating | 60 HZ |
| Mounting | Floor |
| Number of Taps | ST-20 compliant |
| Primary Voltage | 208 V |
| Secondary Voltage | 120/240 V |
| Special Features | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Standard | CSA, UL |
| RoHS URL | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| UPC | 803423140519 |
| GTIN | 00803423140519 |
| Item Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Single Phase |
| Length | 27 |
| Length UOM | Inch |
| Width | 28.25 |
| Width UOM | Inch |
| Height | 36 |
| Height UOM | Inch |
| Temperature Rating | Typical 30 Average/ 40 Maximum DEG C |
