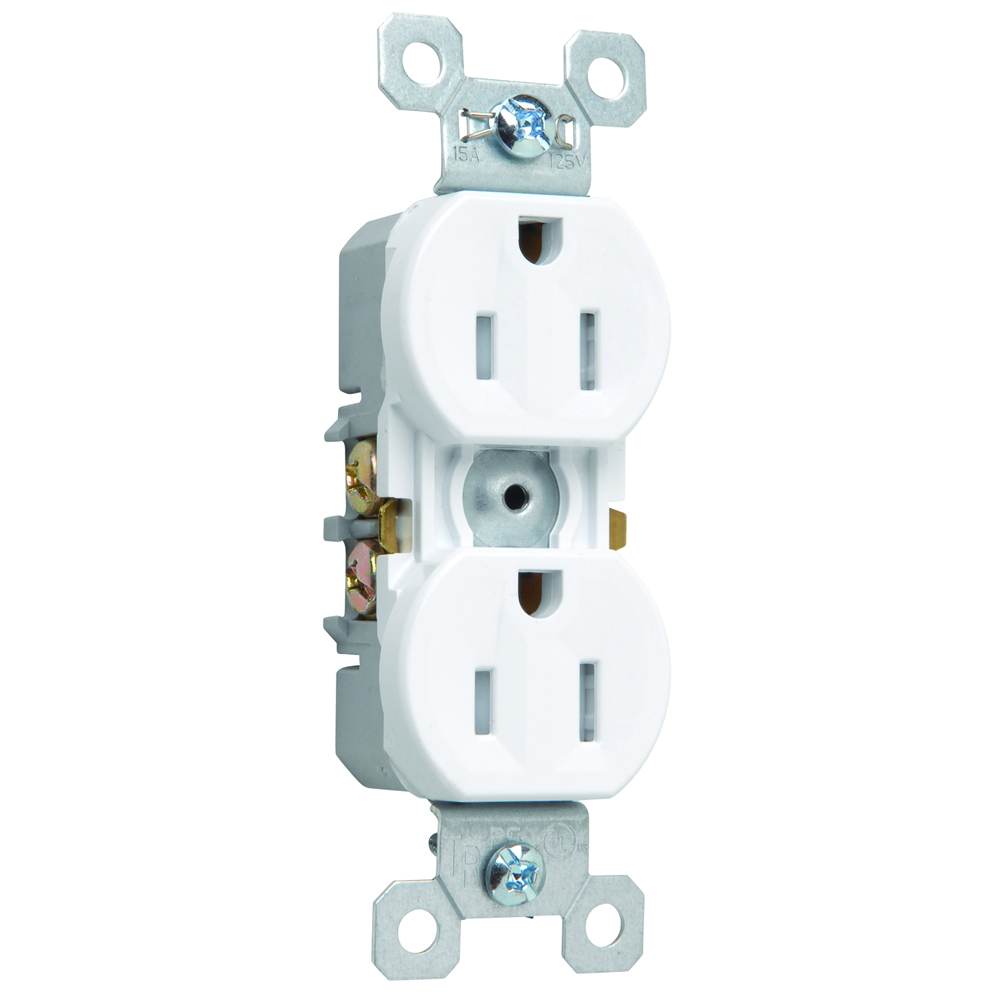

15A/125A Trademaster Registered Self-Grounding, Tamper-Resistant Duplex Receptacle

Catalog Number 3232TRSW
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin China
Made in USA No
Amperage Rating 15
Application Commercial;Residential
Color White
Connection Side wire, push wire
Material Thermoplastic
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Protects children: patented shutter system helps prevent improper insertion of foreign objects. Meets National Electrical Code® Tamper-Resistant requirements. High-impact resistant thermoplastic construction. Low profile face. Side wire accepts #12 – #14 AWG solid wire. Push wire accepts #14 AWG solid only. “TR” markings on strap per UL Tamper-Resistant requirements. Traditional contoured face. Safer and more effective than traditional plastic outlet caps or protection plates. Extra-long strap. Quickloop wire looping aid. Long-term blade retention. Longer tri-drive screws for easier #12 AWG looping. Extra-large circuit break-off tabs. Side-access push wire release. Ultrasonic welding of face to back body. Self-grounding models provide automatic ground clip.
Standard cULus UL498, CSA C22.2 No. 42
UPC 785007240016
GTIN 00785007240016
Item Type Self-Grounding Tamper-Resistant Receptacle
Size 1.320 L x 1.0 W x 4.20 H
Temperature Rating -30° - 60° C
Voltage Rating 125
Wire Size 14 - 12 AWG
Cross Reference Products Bryant RR15SWTR|EatonWD TR270-9W|EatonWD TRBR15V|EatonWD TRBR15W|Enerlites 61540-TR-I|Enerlites 61540-TR-W|Enerlites 61580-TR-W|HublWiring BR15ITR|HublWiring BR15WHITR|HublWiring RR15SWTR
