Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9013GHB2J53
- UPC:
- 785901052692
- Item #:
- 51474
Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR #:
- 9013GHB2J53
- UPC:
- 785901052692
- Item #:
- 51474

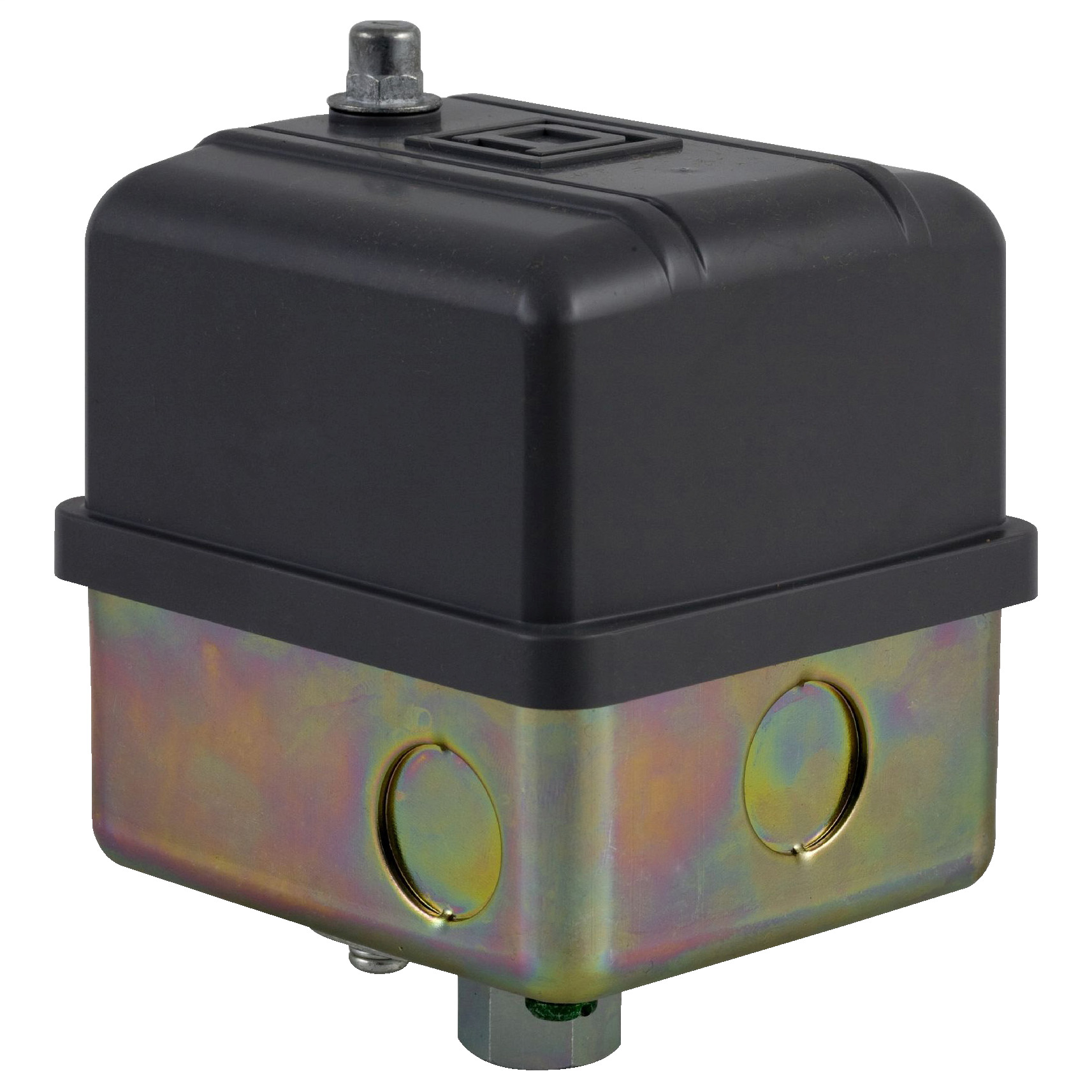

pump or compressor switch 9013GH - adjustable diff. - 100-125 psi
Manuals & Documentation
| Catalog Number | 9013GHB2J53 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | 1.5 KW 2 HP)115 V AC, 1 PHASE-3.7 KW 5 HP)575 V AC, 3 PHASE-2.2 KW 3 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 1 PHASE-0.75 KW 1 HP)115 V DC-0.75 KW 1 HP)230 V DC-3.75 KW 5 HP)230 V AC, 3 PHASE-3.7 KW 5 HP)460 V AC, 1 PHASE-3.7 KW 5 HP)460 V AC, 3 PHASE-3.7 KW 5 HP)575 V AC, 1 PHASE,CONTROL ELECTRICALLY DRIVEN WATER PUMPS AND AIR COMPRESSORS,REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | 2 NC, SNAP ACTION, DPST-DB, FORM YY |
| Enclosure | NEMA 3R UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Special Features | - |
| Standard | CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529,UL 508-CE-NSF ANSI 372 |
| UPC | 785901052692 |
| GTIN | 00785901052692 |
| Item Type | ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH |
| Environmental Conditions | RAINPROOF AND ICE PROOF (INDOOR/OUTDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 200 PSI 40-170 PSI) |
