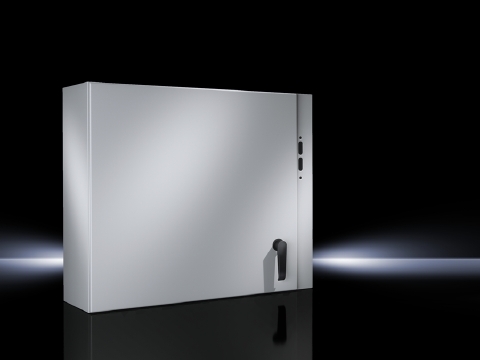

8017614 WM Series 1-Door Compact Enclosure, 12 in W x 5.9 in D, NEMA 4X NEMA Rating, 304 Stainless Steel
- MFR:
- Rittal
- MFR #:
- 8017614
- UPC:
- 639889831902
- Item #:
- 513405
8017614 WM Series 1-Door Compact Enclosure, 12 in W x 5.9 in D, NEMA 4X NEMA Rating, 304 Stainless Steel
- MFR #:
- 8017614
- UPC:
- 639889831902
- Item #:
- 513405
Compact enclosures WM, Stainless steel, material: Door: Stainless steel, all-round foamed-in PU seal, Enclosure and door: Stainless steel 1.4301 (AISI 304), Mounting plate: Sheet steel, zinc-plated, surface: Brushed, supply includes: Enclosure with door(s), L/h door hinge, Mounting plate, Wall mounting blind nut, description: These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a stainless steel body and door, and a zinc plated mounting panel.
Features
- Size: 12 Inch Width x 6 Inch Depth x 16 Inch Height
- Double door and disconnect enclosures have a 3-point latching L-handle
- Wallmounting holes (carbon steel versions) and blind riv-nuts (stainless steel versions)
- Single door enclosures less than 20 Inch in height have one 1/4 turn latch with screwdriver insert
| Catalog Number | 8017614 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Industrial |
| Construction | One Piece Construction |
| Insulation | Foamed-in PU Seal |
| Material | Stainless Steel |
| Mounting | Wall |
| NEMA Rating | 4X |
| Standard | UL Listed, cUL Listed |
| RoHS Indicator | Yes |
| UPC | 639889831902 |
| GTIN | 00639889831902 |
| Item Type | Compact Enclosure |
| Length | 12.1300 |
| Length UOM | Inch |
| Width | 6.8900 |
| Width UOM | Inch |
| Height | 12.5980 |
| Height UOM | Inch |
| Weight | 19.500 |
| Weight UOM | Pounds |
| Size | 16 (H) x 12 (W) x 5.9 (D) |
