SCHNEIDER ELECTRIC

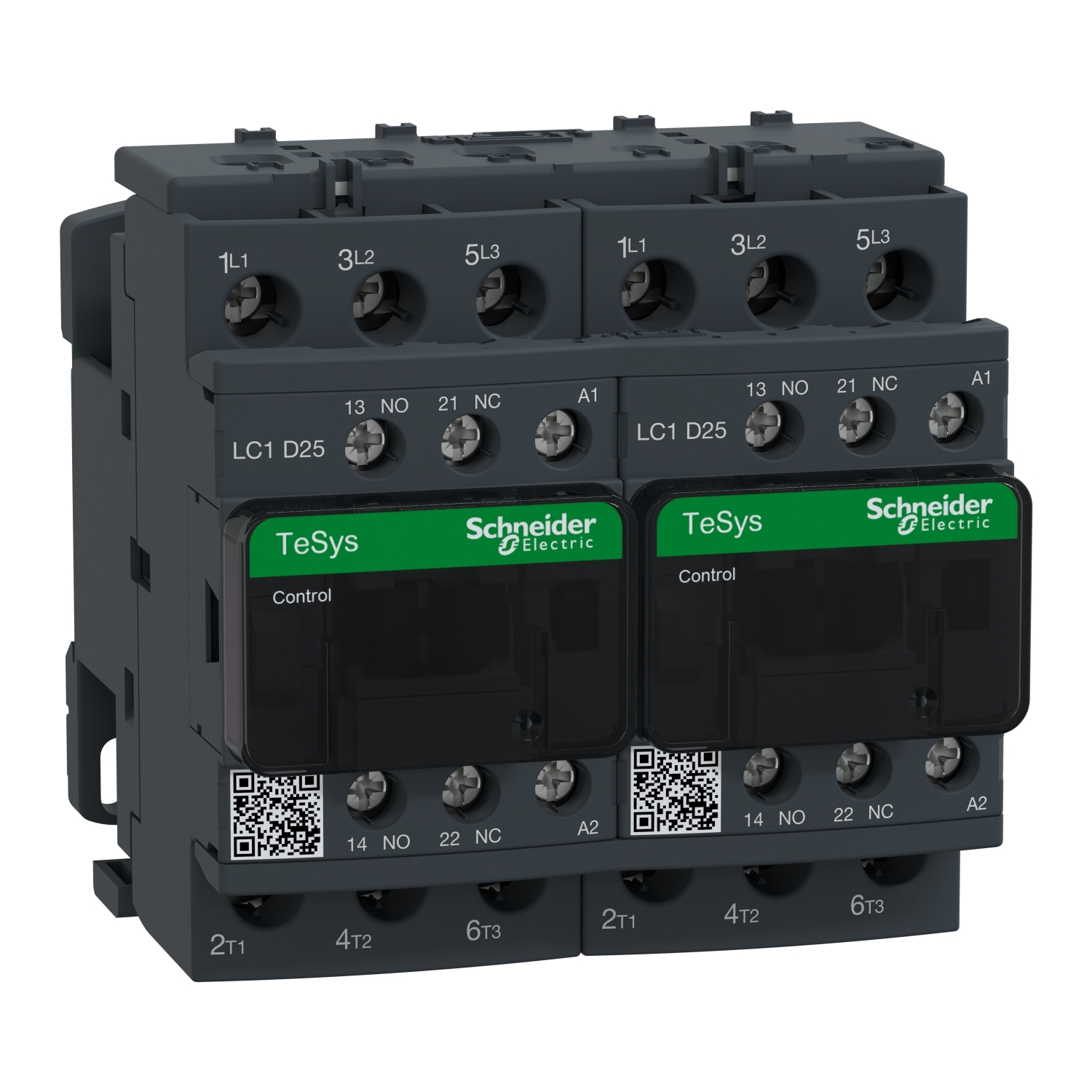

LC2D25G7V TeSys D Electrical/Mechanical Reversing IEC Contactor, 120/690 V AC, 300 V DC V Coil, 25/40 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC2D25G7V
Item #:
513159

TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 25A reversing inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 3HP at 240VAC single phase. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 3.54 inches wide and 3.62 inches deep. It weighs 1.74 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals & Documentation
Catalog Number LC2D25G7V
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Motor control;resistive load
Coil Voltage 120 V AC 50/60 Hz
Contact Configuration 1 NO + 1 NC
Standard DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCA;CB
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=626774&lang=en-us
GTIN 03389110412611
Item Type Reversing contactor;LC2D
