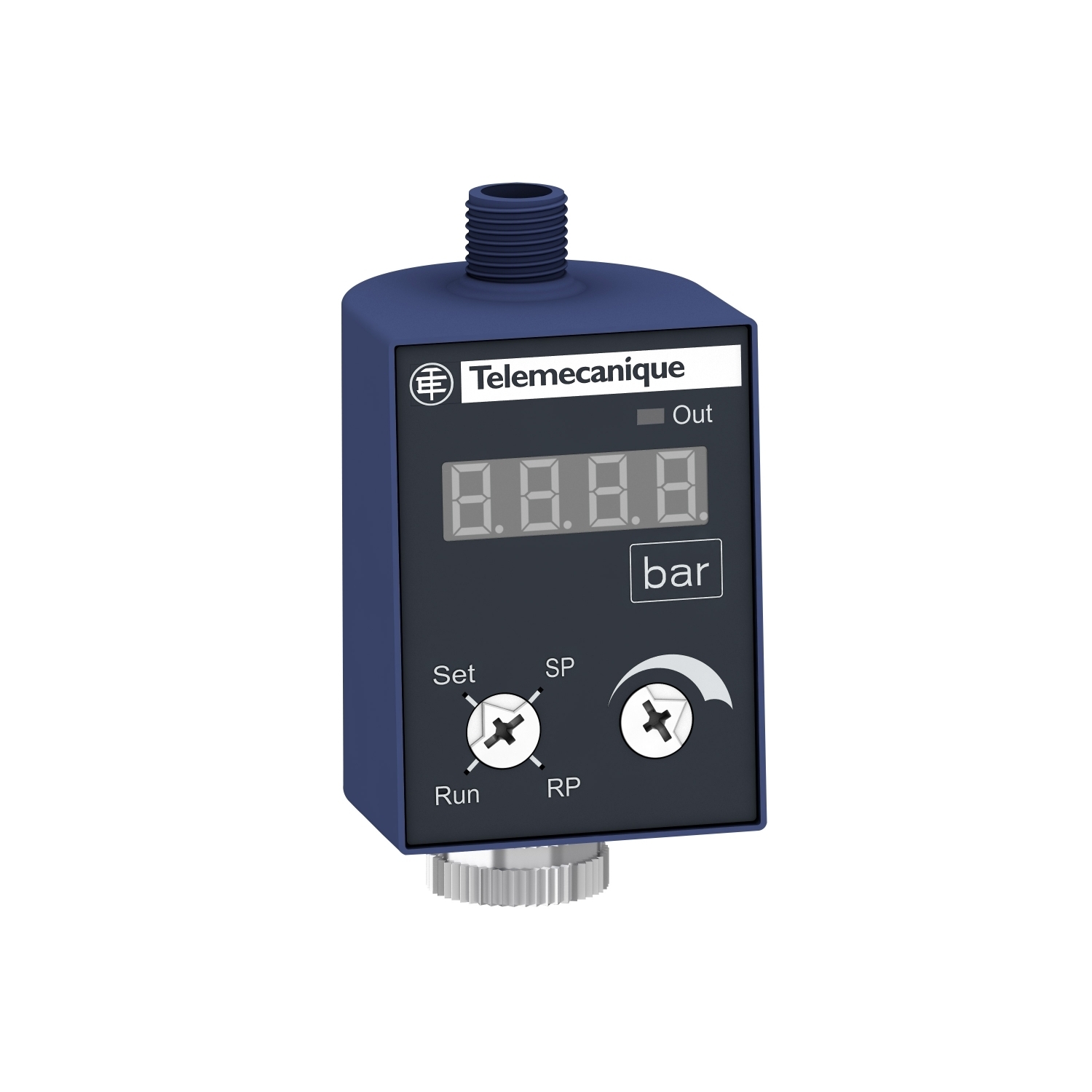

ZMLPA1P2SH OsiSense XM ZMLP Electronic Pressure Sensor, -14.5 to 6000 Sensing Range, 300 ms Response Time, PBT Valox
- MFR:
- Telemecanique Sensors
- MFR #:
- ZMLPA1P2SH
- UPC:
- 785901877547
- Item #:
- 512241
ZMLPA1P2SH OsiSense XM ZMLP Electronic Pressure Sensor, -14.5 to 6000 Sensing Range, 300 ms Response Time, PBT Valox
- MFR #:
- ZMLPA1P2SH
- UPC:
- 785901877547
- Item #:
- 512241

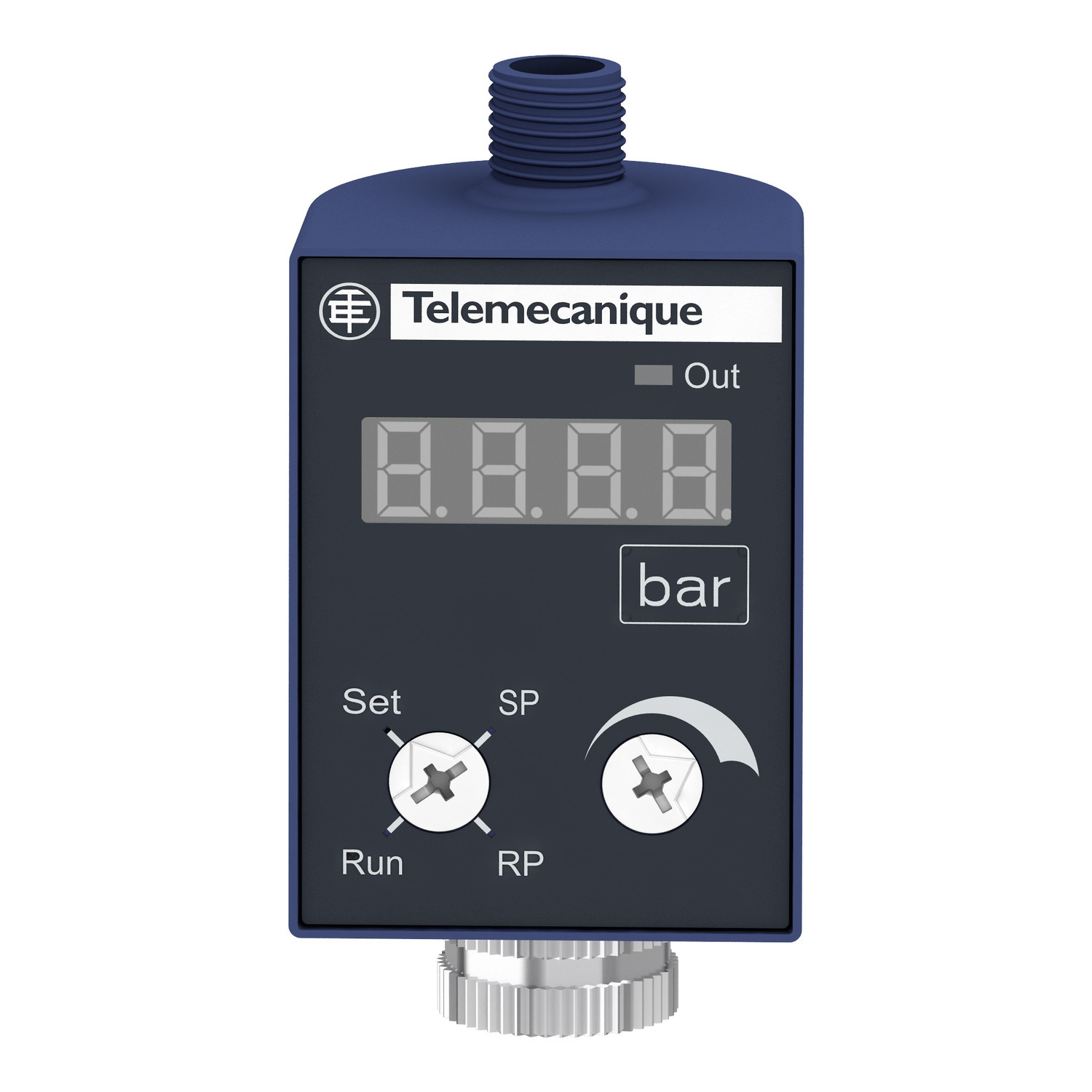

This ZML electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24V DC, 2 x solid state outputs (pnp) and an analog ouput of 4 to 20mA. It provides a simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.
Manuals & Documentation
| Catalog Number | ZMLPA1P2SH |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Country of Origin | France |
| Made in USA | No |
| Special Features | 4 digits 7 segments |
| Standard | EAC-CULUS,EN/IEC 61000-6-4-UL 508-EN/IEC 61000-6-2,IP67 EN/IEC 60529-IP65 EN/IEC 60529-IP69K DIN 40050,IMMUNITY TO CONDUCTED RF DISTURBANCES 10 V 0.15...80 MHZ EN/IEC 61000-4-6-SURGE IMMUNITY TEST 1 KV EN/IEC 61000-4-5-ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST 2 KV EN/IEC 61000-4-4-SUSCEPTIBILITY TO ELECTROMAGNETIC FIELDS 10 V/M 80...2000 MHZ EN/IEC 61000-4-3-ELECTROSTATIC DISCHARGE IMMUNITY TEST 8 KV AIR, 4 KV CONTACT EN/IEC 61000-4-2 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=349104362&lang=en-us |
| UPC | 785901877547 |
| GTIN | 03389119617925 |
| Item Type | Electronic pressure sensors |
| Operating Temperature | -25-70 A Degrees C |
