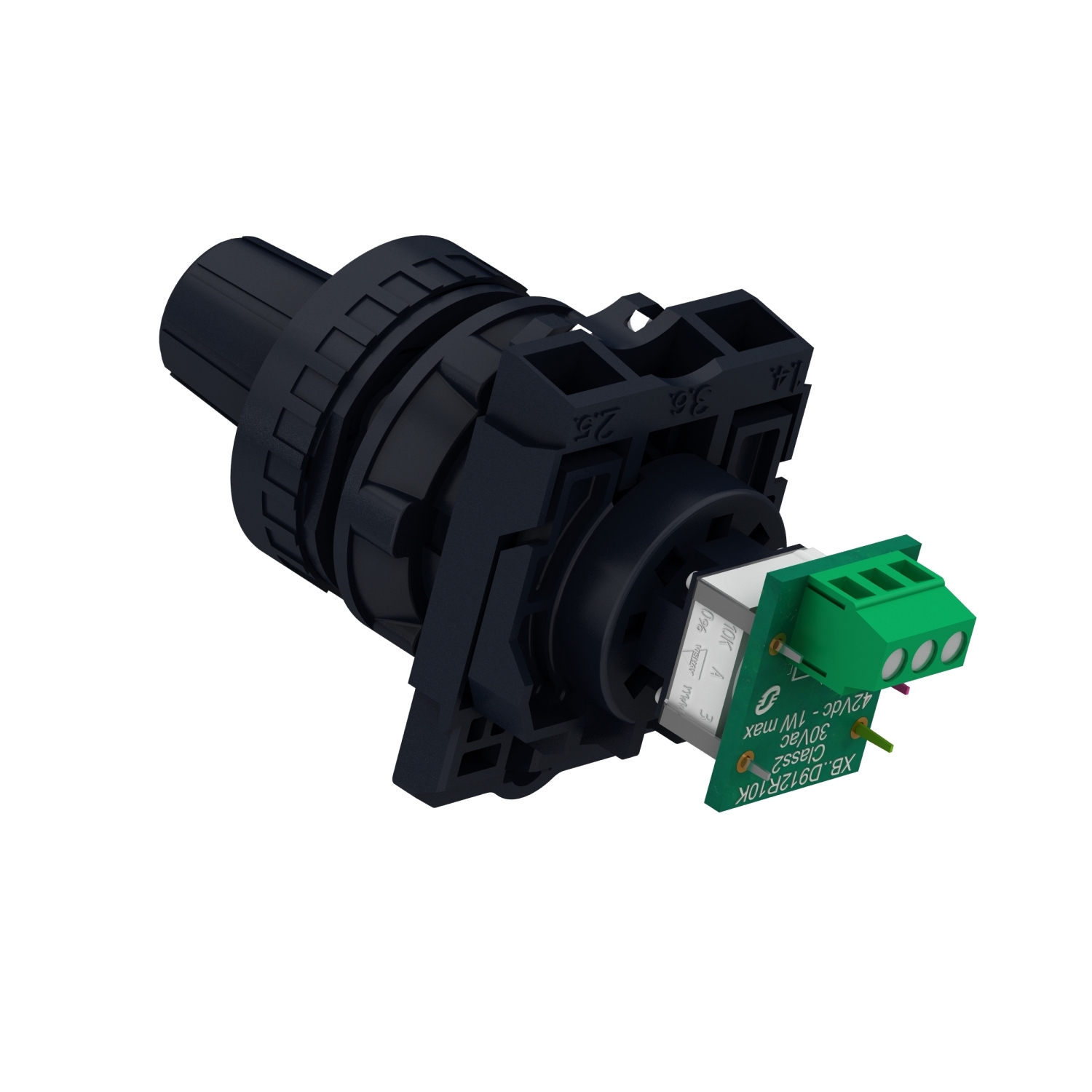

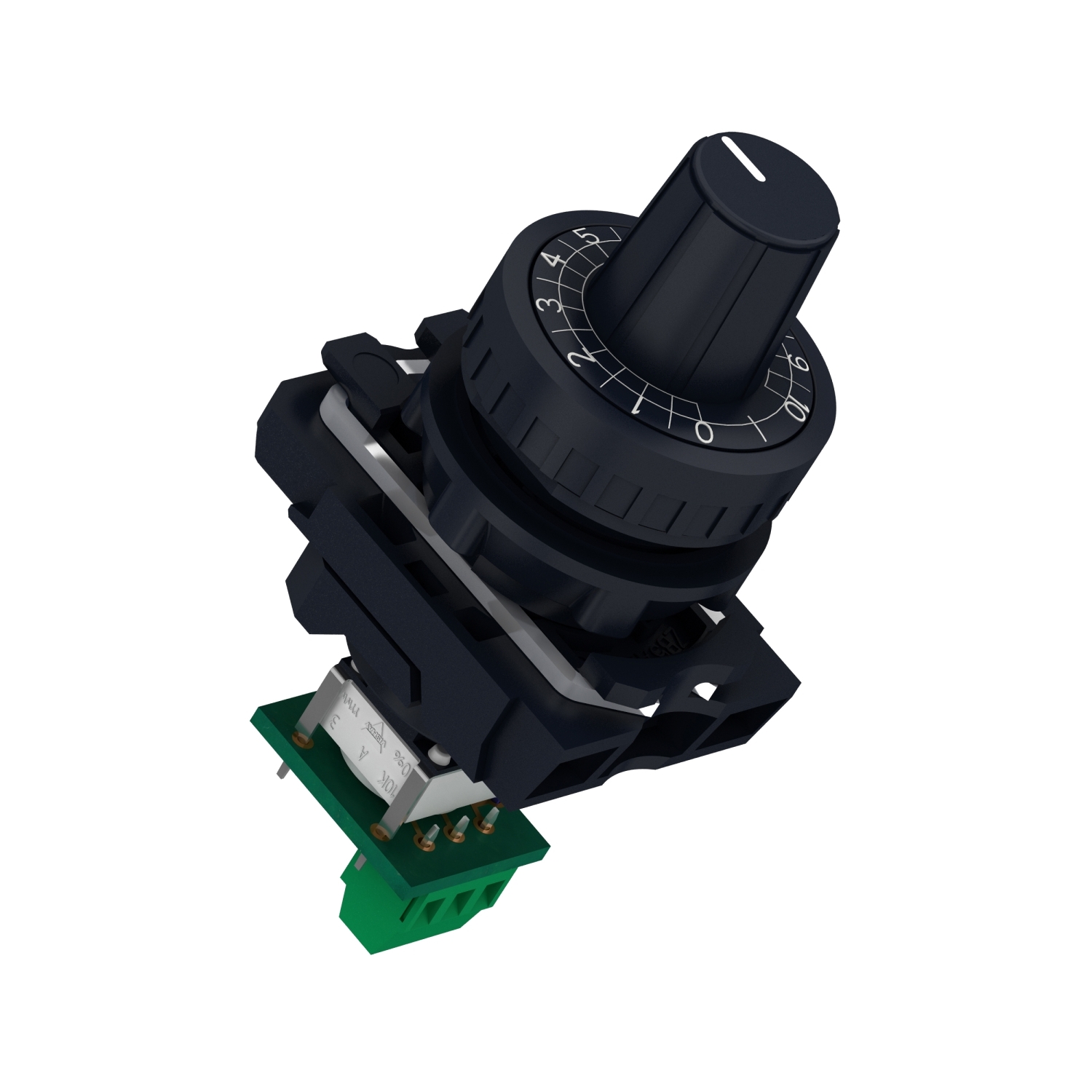

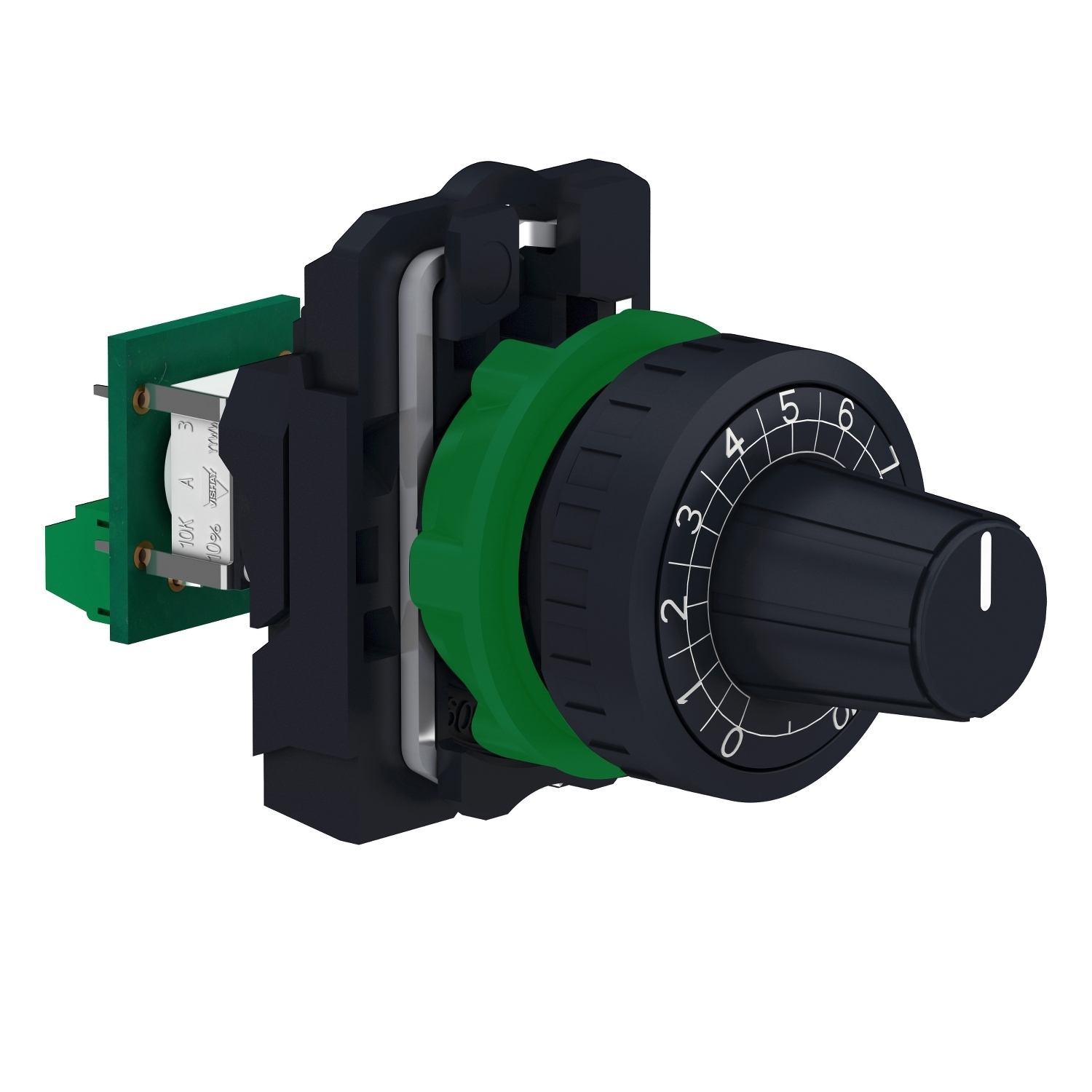

This Harmony XB5, 22mm diameter potentiometer has a resistance of 1k and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Manuals & Documentation
Catalog Number XB5AD912R1K
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin United States
Made in USA Yes
Actuator knurled knob, with white)
Application Ø 6 mm shaft
Material Cermet;Dark grey plastic
Standard BV;UL Listed;CSA;IK03 conforming to IEC 50102;UL 508;CSA C22.2 No 14;EN/IEC 60947-1;30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27;5 gn 2-500 Hz)IEC 60068-2-6;IP66 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=437982868&lang=en-us
GTIN 03606480985058
Item Type Potentiometer
Voltage Rating <= 30 V AC;<= 42 V DC
