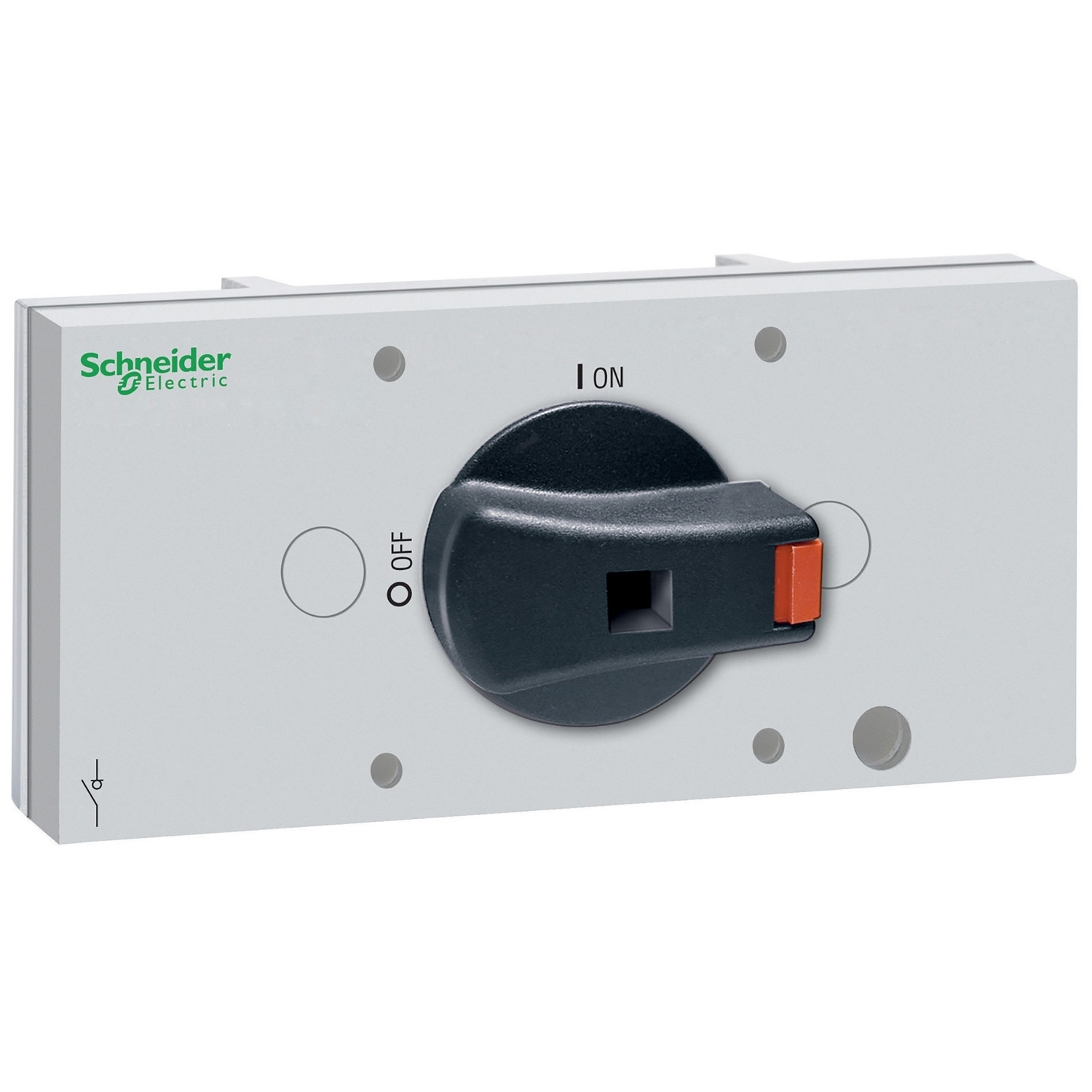

VLS8C1 TeSys Vario Mechanical Interlock, For Use With 16 to 63 A VLS3P016R1-VLS3P040R1, VLS3P063R1 and VLSH2S5BC Line Changeover Shaft Extensions, 5 mm Shaft Length, Black/Gray
- MFR:
- Schneider Electric
- MFR #:
- VLS8C1
- Item #:
- 510614
VLS8C1 TeSys Vario Mechanical Interlock, For Use With 16 to 63 A VLS3P016R1-VLS3P040R1, VLS3P063R1 and VLSH2S5BC Line Changeover Shaft Extensions, 5 mm Shaft Length, Black/Gray
- MFR #:
- VLS8C1
- Item #:
- 510614
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This mechanical interlock is used with two VLS3P016R1, two VLS3P025R1, two VLS3P32R1, two VLSP040R1 or two VLS3P063R1 DIN rail mount switches. Mechanical interlock is supplied with a black handle. Rotary handle will accept one 0.16 in padlock. Interlock is marked 1 - 0 - 2. Mechanical interlock is 1.77 inches tall, 2.83 inches wide and 1.06 inches deep. It weighs 0.11 lbs. This mechanical interlock is cULus Listed and meets IEC 60947-3 requirements.
Manuals & Documentation
| Catalog Number | VLS8C1 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Italy |
| Made in USA | No |
| Actuator | Black |
| Application | TeSys TeSys VARIO LS VLS3P;Interlocking accessory |
| Mounting | Screw |
| Special Features | 1 padlock 4-4 mm |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460091125&lang=en-us |
| GTIN | 03606481156853 |
| Item Type | Mechanical interlock |
