Square D

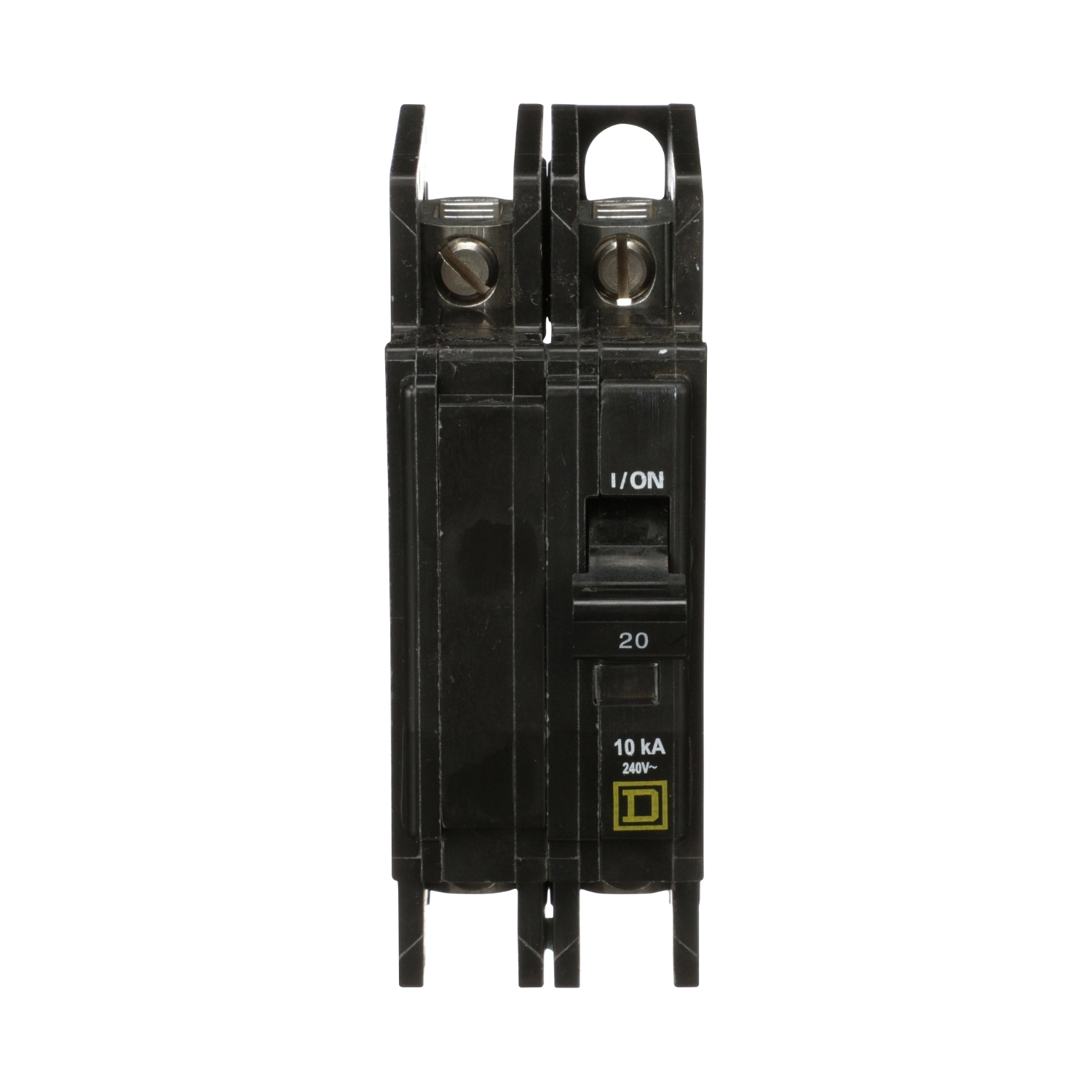

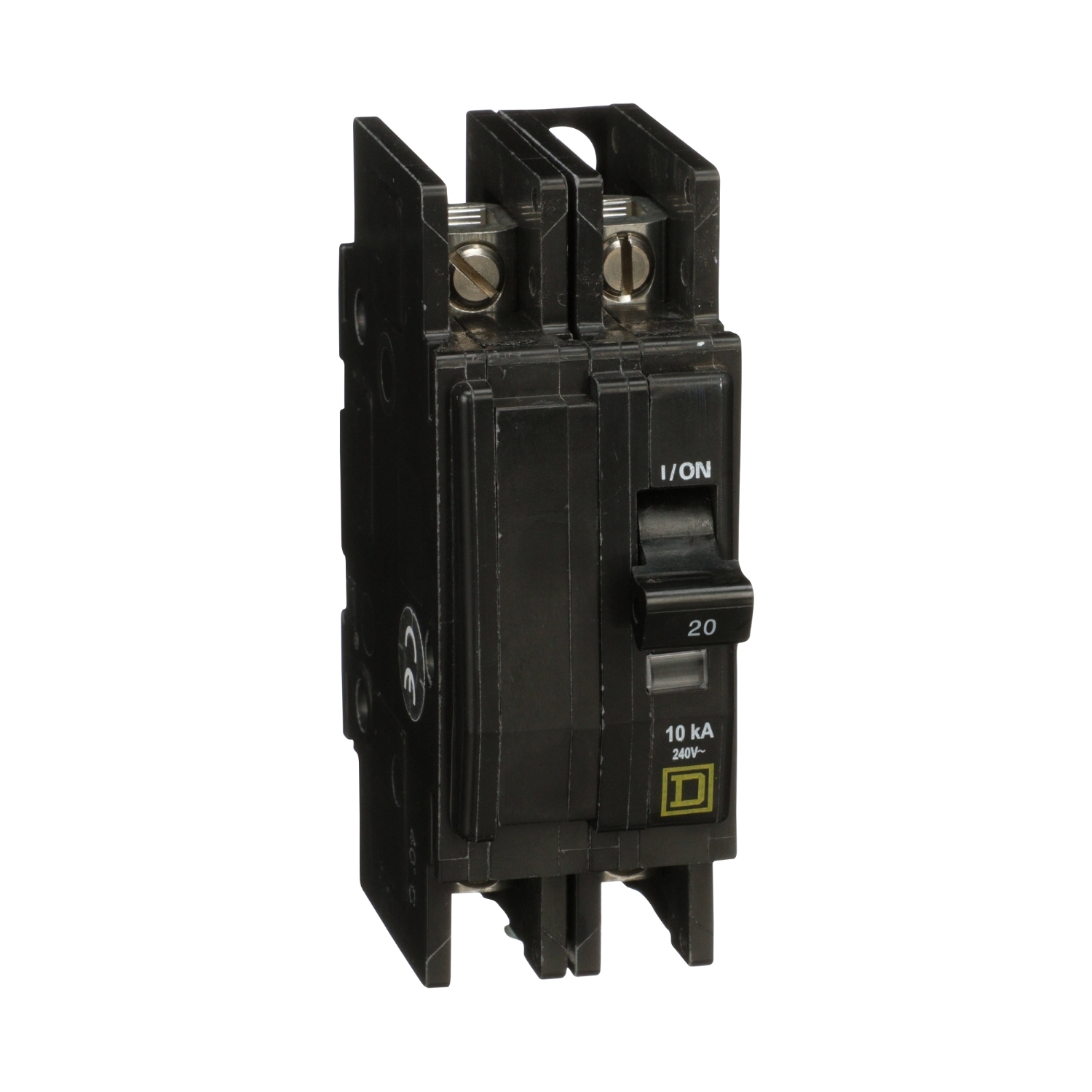

QOU220H Miniature Circuit Breaker, 20 Amp, 2 Pole, 240V

MFR:
Schneider Electric
MFR #:
QOU220H
UPC:
785901090328
Item #:
508003

QOU miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 2 pole QOU miniature circuit breaker is rated as 20 A at 240 VAC. This unit provides 10 kA breaking capacity. This breaker has lugs on both cable in and cable out connectors. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5 02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified.

Manuals & Documentation
Catalog Number QOU220H
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application HACR rated
Connection Slotted box lugs, line side;slotted box lugs, load side;AWG 14...AWG 2 aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402275&lang=en-us
UPC 785901090328
GTIN 00785901090328
Item Type Miniature circuit-breaker
Width 1.500000000000000
Width UOM Inch
Height 4.050000000000000
Height UOM Inch
Depth 2.95 IN
Voltage Rating 240 V AC
