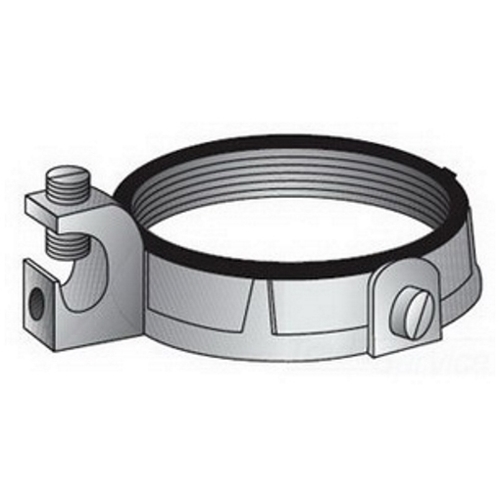

IBC-250L-20BC Threaded Grounding Bushing, 2-1/2 in Trade, 14 AWG Solid Wire Min, 2/0 AWG Stranded Wire Max, 3-3/8 in Dia, Malleable Iron
- MFR:
- O-Z/Gedney
- MFR #:
- IBC-250L-20BC
- UPC:
- 783126306187
- Item #:
- 50546
IBC-250L-20BC Threaded Grounding Bushing, 2-1/2 in Trade, 14 AWG Solid Wire Min, 2/0 AWG Stranded Wire Max, 3-3/8 in Dia, Malleable Iron
- MFR #:
- IBC-250L-20BC
- UPC:
- 783126306187
- Item #:
- 50546
Manuals & Documentation
| Catalog Number | IBC-250L-20BC |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Rigid Conduit And IMC |
| Connection | Threaded |
| Finish | Zinc Plated Body, Bright Dip Lug, Zinc Plated Clamping Screw And Set Screws |
| Material | Malleable Iron Body, Bronze Lug, Steel Clamping Screw And Set Screws |
| Special Features | O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper grounding conductors only; Lugs not sold separately |
| Standard | Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| UPC | 783126306187 |
| GTIN | 00783126306187 |
| Item Type | Type IBC-L-BC Insulated Grounding Bushing With Lug |
| Size | 2-1/2 |
| Temperature Rating | 150 DEG C |
