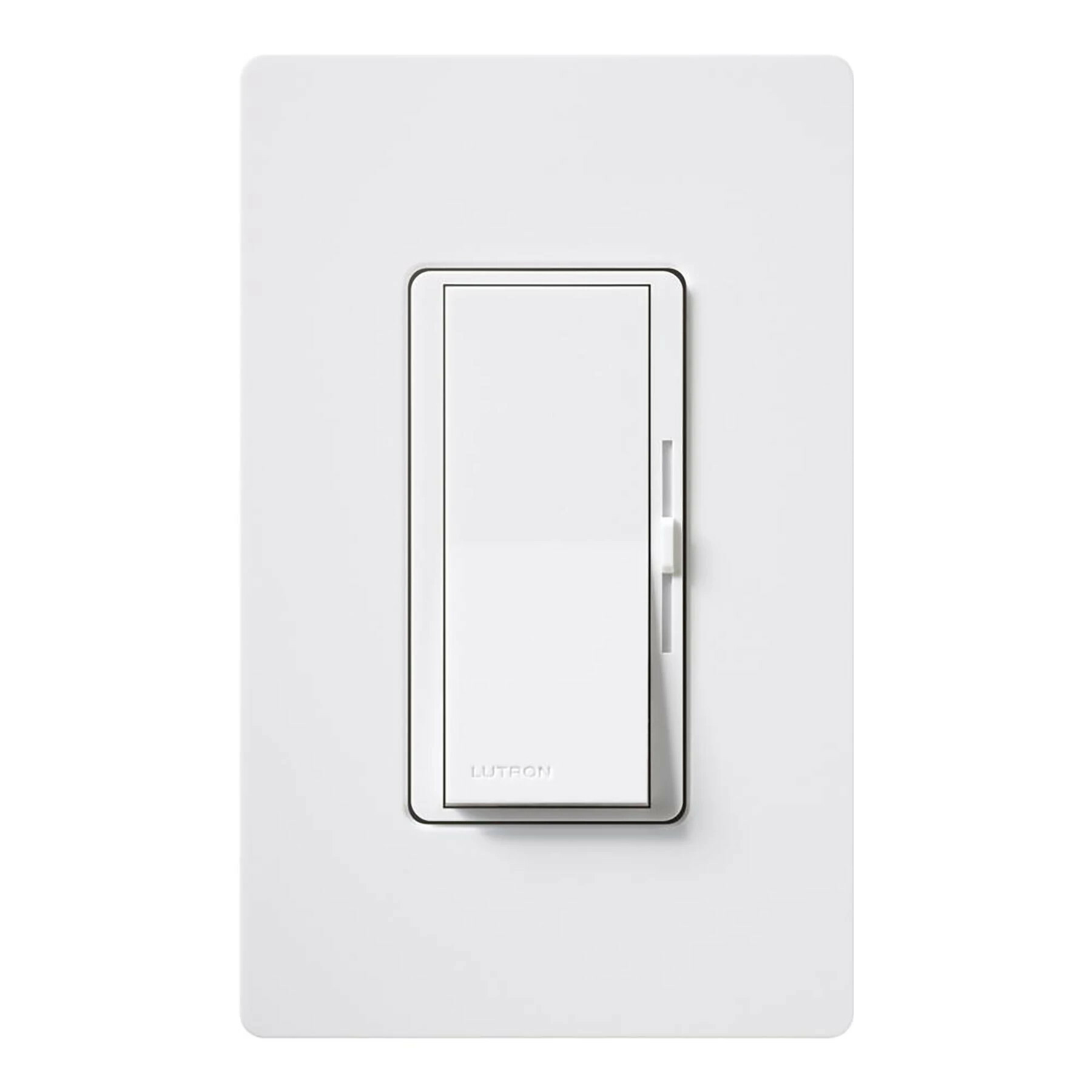

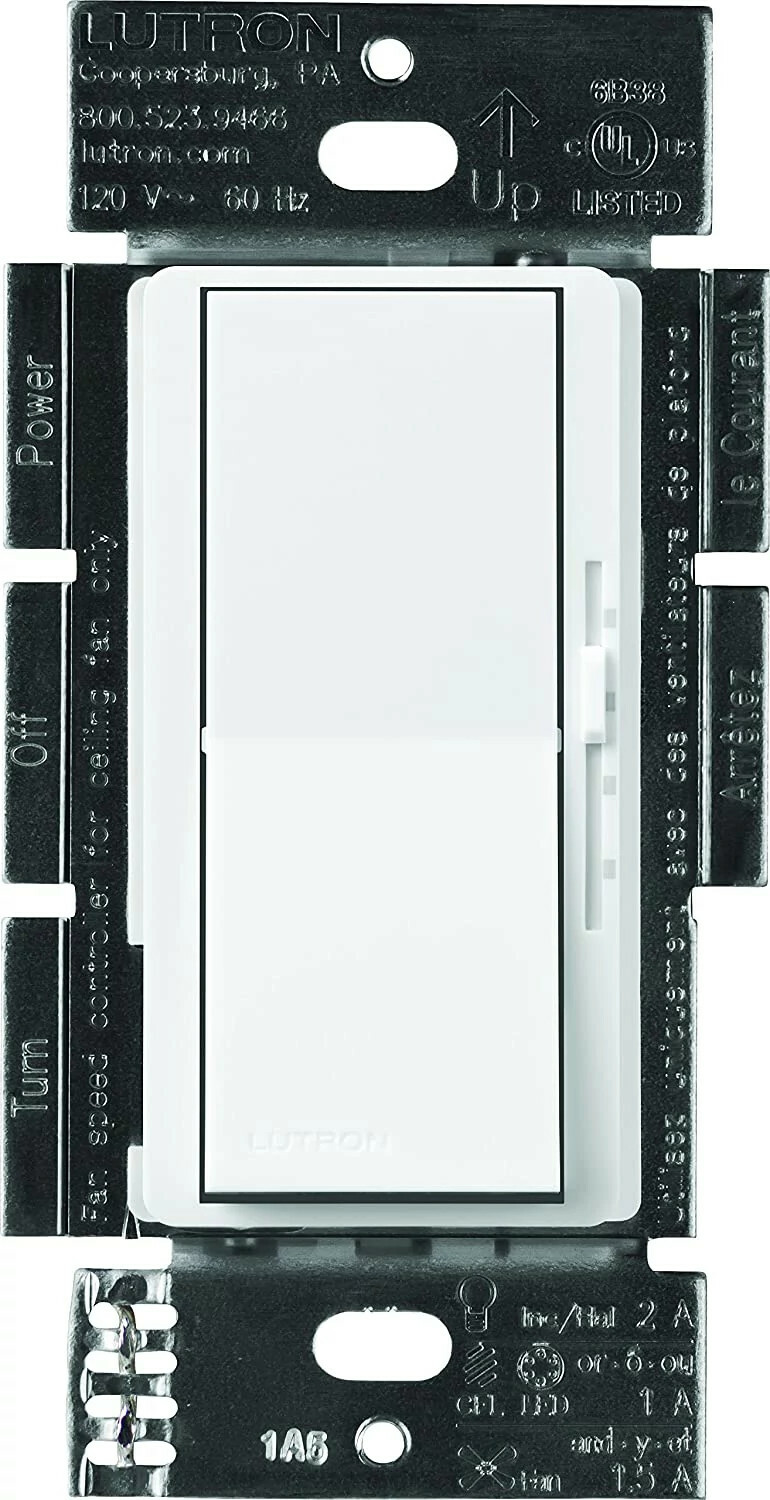

DVFSQ-LF-WH Diva 3-Speed Fan Control and On/Off Light Switch, 1.5 Amp Fan, 1 Amp LED, 1 Pole/3-Way, No Neutral Required, 120V, White
- MFR:
- Lutron Electronics
- MFR #:
- DVFSQ-LF-WH
- UPC:
- 784276226677
- Item #:
- 505241
DVFSQ-LF-WH Diva 3-Speed Fan Control and On/Off Light Switch, 1.5 Amp Fan, 1 Amp LED, 1 Pole/3-Way, No Neutral Required, 120V, White
- MFR #:
- DVFSQ-LF-WH
- UPC:
- 784276226677
- Item #:
- 505241

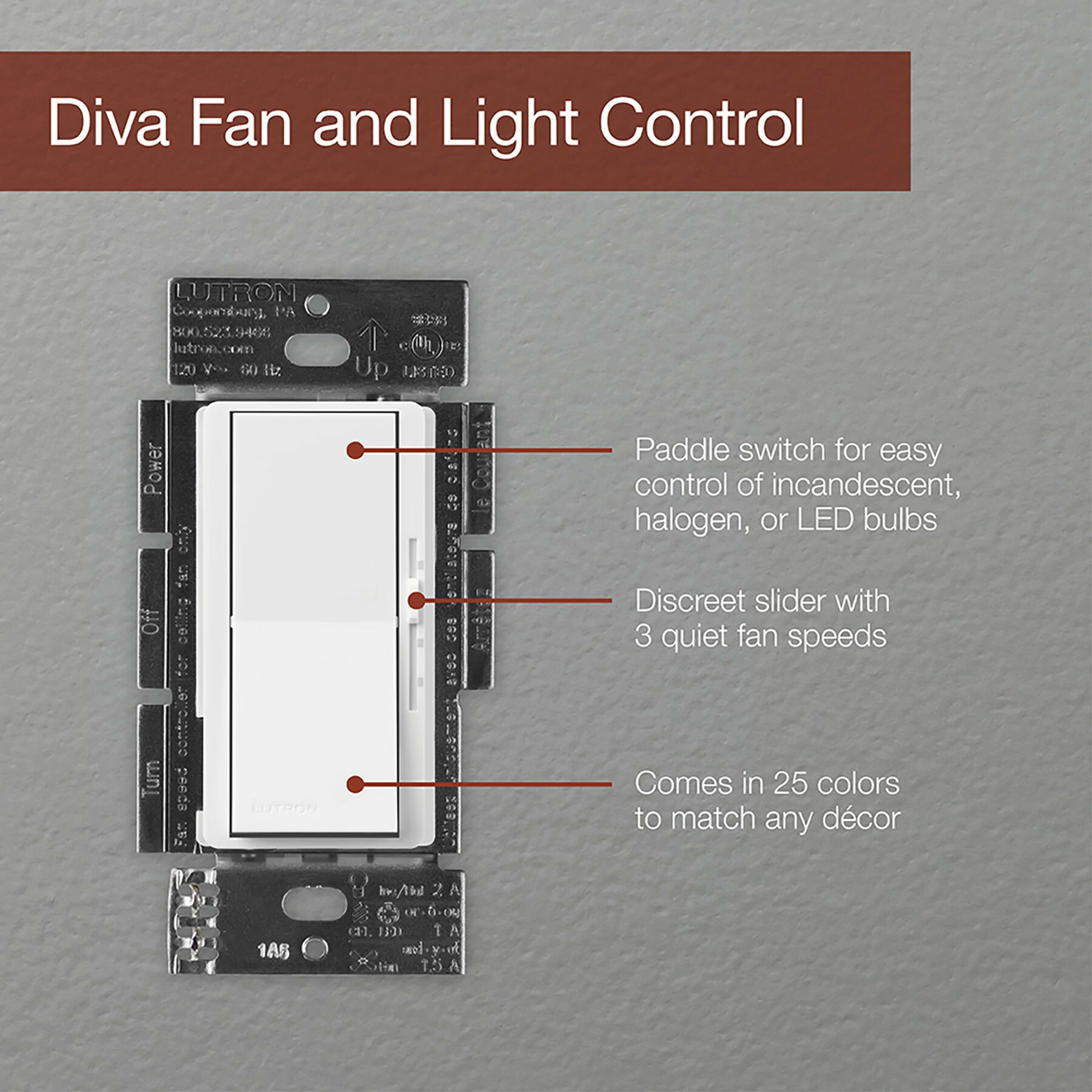

The Lutron Diva Light and Fan Switch helps you achieve the ideal comfort level for any home. It features an intuitive rocker switch to turn your lights on/off and a discreet 3-speed slider to increase or decrease the fan speed. This Diva Light/Fan Switch works with all LED, CFL, Incandescent, and Halogen bulbs. For use in single-pole applications with single ceiling paddle fans only. Coordinating Claro wall plate sold separately. Available in 20+ colors to consistently match any Lutron device.
Manuals & Documentation
| Catalog Number | DVFSQ-LF-WH |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Actuator | Rocker switch |
| Application | Lighting and Fan Control |
| Connection | Wire Leads |
| Contact Configuration | N-O |
| Contact Rating | 1.5 AMPS |
| Enclosure | Plastic |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Fan control (top) Slide up to on/increase speed, down to decrease/off. 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan). Switch (bottom) Rocker switch turns light on/off. |
| Standard | UL, cUL, NOM |
| UPC | 784276226677 |
| GTIN | 00784276226677 |
| Item Type | Fan/light control, 3-way/single-pole |
| Size | 4.69 x 2.94 |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| Operating Temperature | 32 to 104 F |
| Voltage Rating | 120 |
| Wattage | 120/240 W light |
