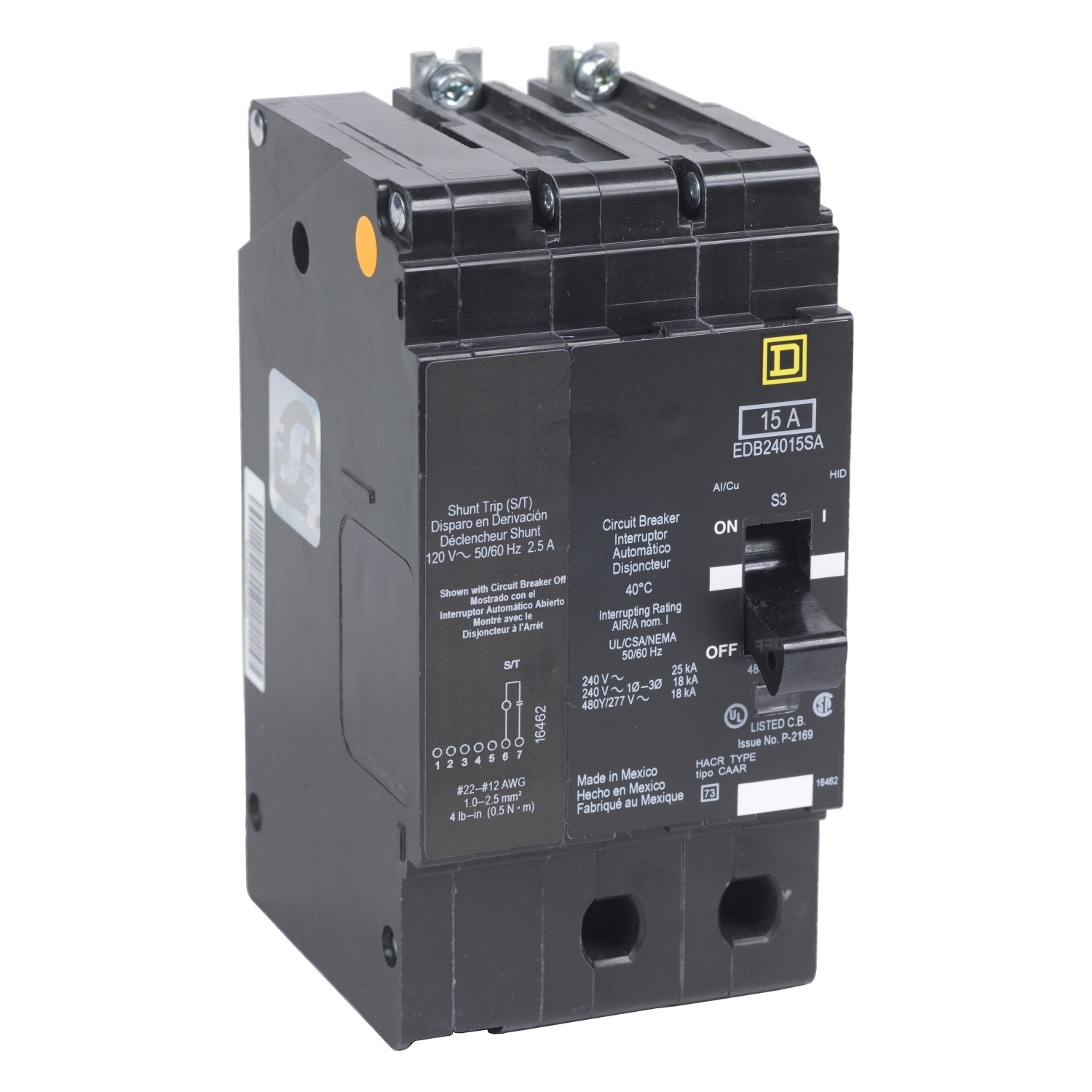

EDB24020SA Type EDB Circuit Breaker, 480Y/277 V AC, 20 A, 25 kA at 240 VAC/18 kA at 480Y/277 VAC Interrupt, 2 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
EDB24020SA
UPC:
785901430797
Item #:
504908

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes a shunt trip. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.

Manuals & Documentation
Catalog Number EDB24020SA
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application NF panelboard;HID rated;HACR rated
Connection Lugs aluminium;AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
Special Features Trip indicator
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=396783&lang=en-us
UPC 785901430797
GTIN 00785901430797
Item Type Miniature circuit-breaker
Width 2.940000000000000
Width UOM Inch
Height 5.660000000000000
Height UOM Inch
Depth 4.05 IN
Trip Type Thermal-magnetic
Voltage Rating 480Y/277 V AC
