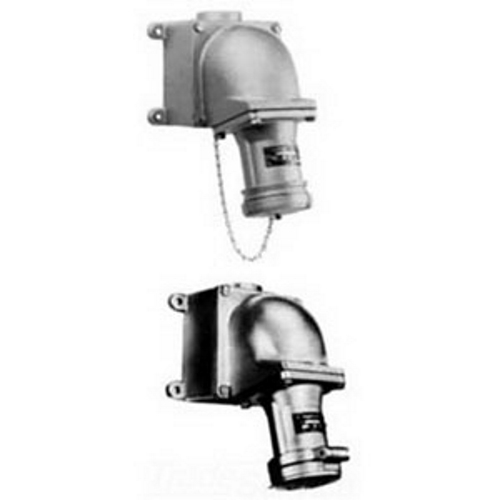

Powertite; Pin and Sleeve Receptacle With AJA Mounting Box; 100 Amp, 600 Volt AC, 250 Volt DC, 3-Pole, 3-Wire, Pressure Wire Terminal, 1-1/2 Inch Hub
- MFR:
- Appleton Electric
- MFR #:
- ADJA1033-150-RS
- UPC:
- 781381711289
- Item #:
- 504848
Powertite; Pin and Sleeve Receptacle With AJA Mounting Box; 100 Amp, 600 Volt AC, 250 Volt DC, 3-Pole, 3-Wire, Pressure Wire Terminal, 1-1/2 Inch Hub
- MFR #:
- ADJA1033-150-RS
- UPC:
- 781381711289
- Item #:
- 504848
Appleton Powertite Grounding Style 1 Receptacle With AJA Mounting Box, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, Mounting: Surface Mount With 1-1/2 IN Hub, Connection: Pressure Wire Terminal, Temperature Rating: -40 To 107 DEG C, Motor Horsepower: 40 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 7.88 IN Width X 11.44 IN Height X 9 IN Depth, Standard: UL 1682, UL 1686, UL 50E, UL Listed: E145916, E145917, CSA Standard: C22.2 No. 182.1, CSA Certified: 065179, NEMA FB11, For ACP1033CD Clamping Ring Plug
Manuals & Documentation
| Catalog Number | ADJA1033-150-RS |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | For ACP1033CD Clamping Ring Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Surface |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.391 IN; Weatherproof spring door, brass with beryllium copper springs |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381711289 |
| GTIN | 00781381711289 |
| Item Type | Grounding Style 1 Receptacle With AJA Mounting Box |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex) |
