Intermatic

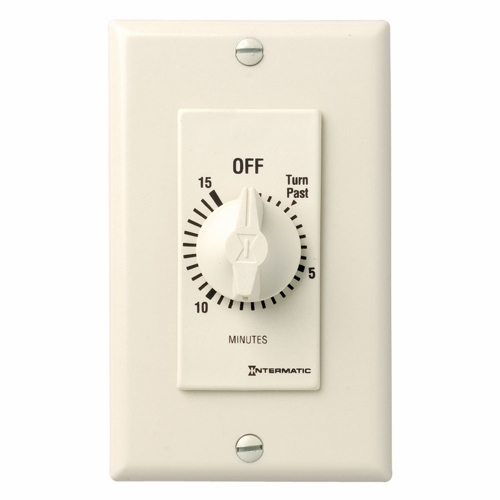

FD15MAC FD Series Auto Off Decorator Mechanical Spring Wound Timer, 15 min Setting, 125/257 V AC, 1 hp, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles

MFR:
Intermatic
MFR #:
FD15MAC
UPC:
078275072916
Item #:
504461

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Manuals & Documentation
Catalog Number FD15MAC
Manufacturer Intermatic
Brand Intermatic
Country of Origin Tunisia
Made in USA No
Action 1 x SPST
Amperage Rating 15
Application Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Teeter Type
Contact Configuration 1 NO
Contact Rating 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Mounting Wall
Number of Poles 1
Special Features Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in Single or Multi-Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Minimum of 0.085 IN Thread Engagement, Secure Teeter-Type Terminal, 1 Year Warranty
Standard cCSAus Certified, UL Listed, UL Recognized, HVACR
UPC 078275072916
GTIN 00078275072916
Item Type Decorator Spring Wound Auto-Off
Size 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Operating Temperature -40 to +104 DEG F, -40 to +40 DEG C
Timing Range 15 MIN
Voltage Rating 125 - 277
