M9XCP157 Combination Busbar, For Use With Multi9 C60BP M9XC Series 80 A 277/480 V AC Miniature Circuit Breaker, 57 Modules, 18 mm Pitch, 1 Line Description, Light Gray
- MFR:
- Schneider Electric
- MFR #:
- M9XCP157
- Item #:
- 504117
M9XCP157 Combination Busbar, For Use With Multi9 C60BP M9XC Series 80 A 277/480 V AC Miniature Circuit Breaker, 57 Modules, 18 mm Pitch, 1 Line Description, Light Gray
- MFR #:
- M9XCP157
- Item #:
- 504117

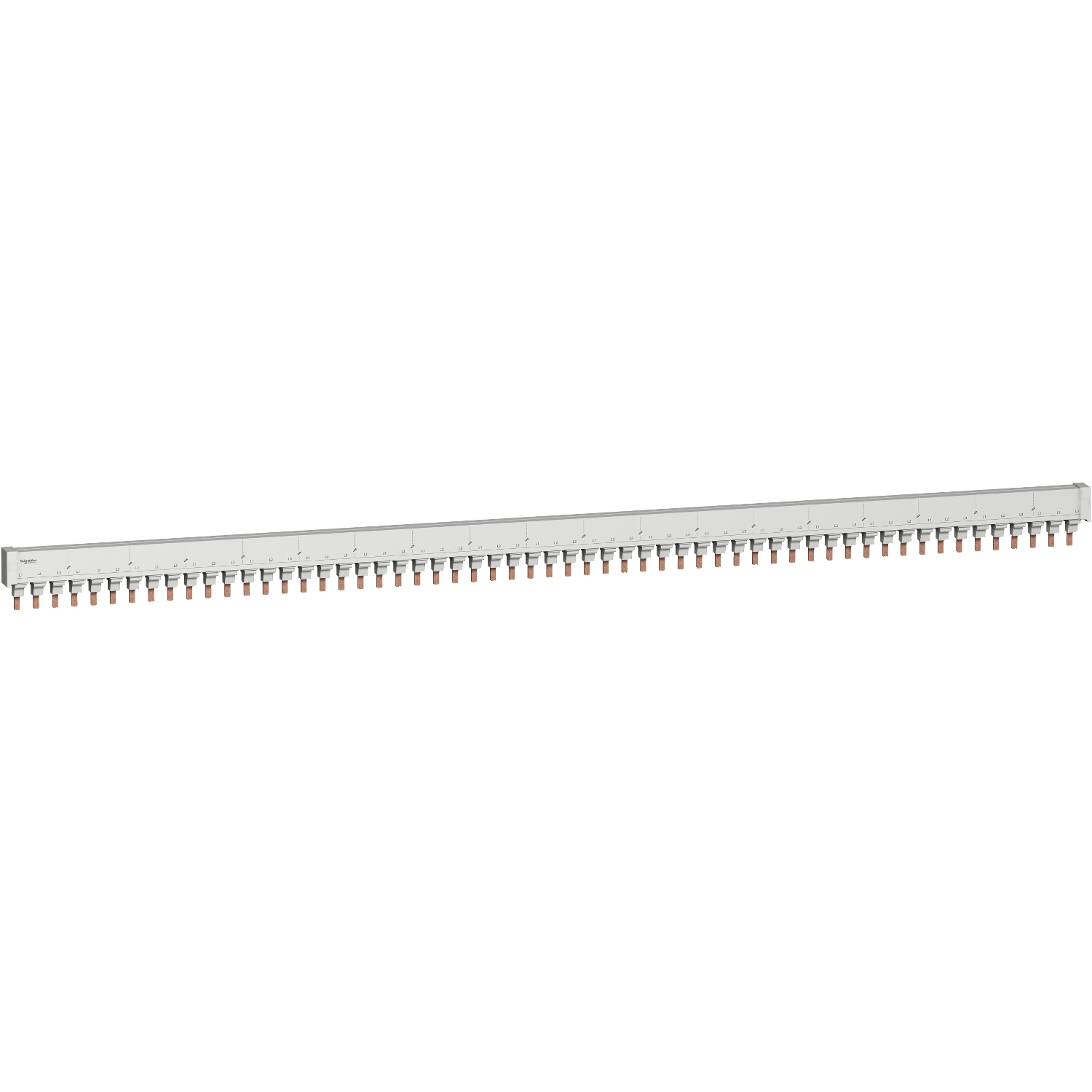

This Multi9 product is a cuttable horizontal comb busbar 57 modules for Multi9 C60 BP. It is dedicated to (Line) installations. The distribution type is 1L. It is a set of 1 device. The length is 1026mm. The total number of modules of 18mm is 57. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 1000VAC. The color is light grey (RAL 7035). The degree of protection is IP20 with end-pieces and tooth covers. The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960C within 30s conforming to IEC 60695-2-1. It complies with UL 508 standard.
Manuals & Documentation
| Catalog Number | M9XCP157 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Germany |
| Made in USA | No |
| Connector Type | tooth |
| Insulation | Insulated |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459718384&lang=en-us |
| GTIN | 03606481192875 |
