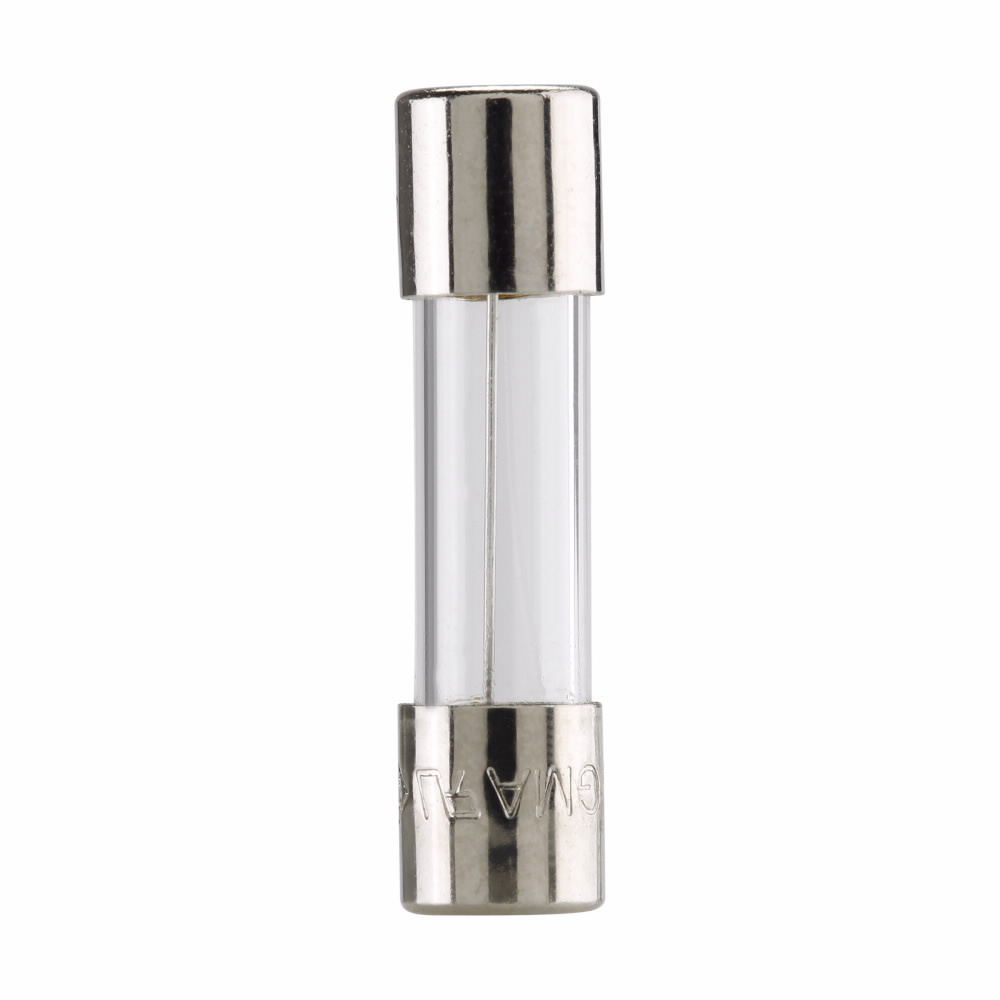

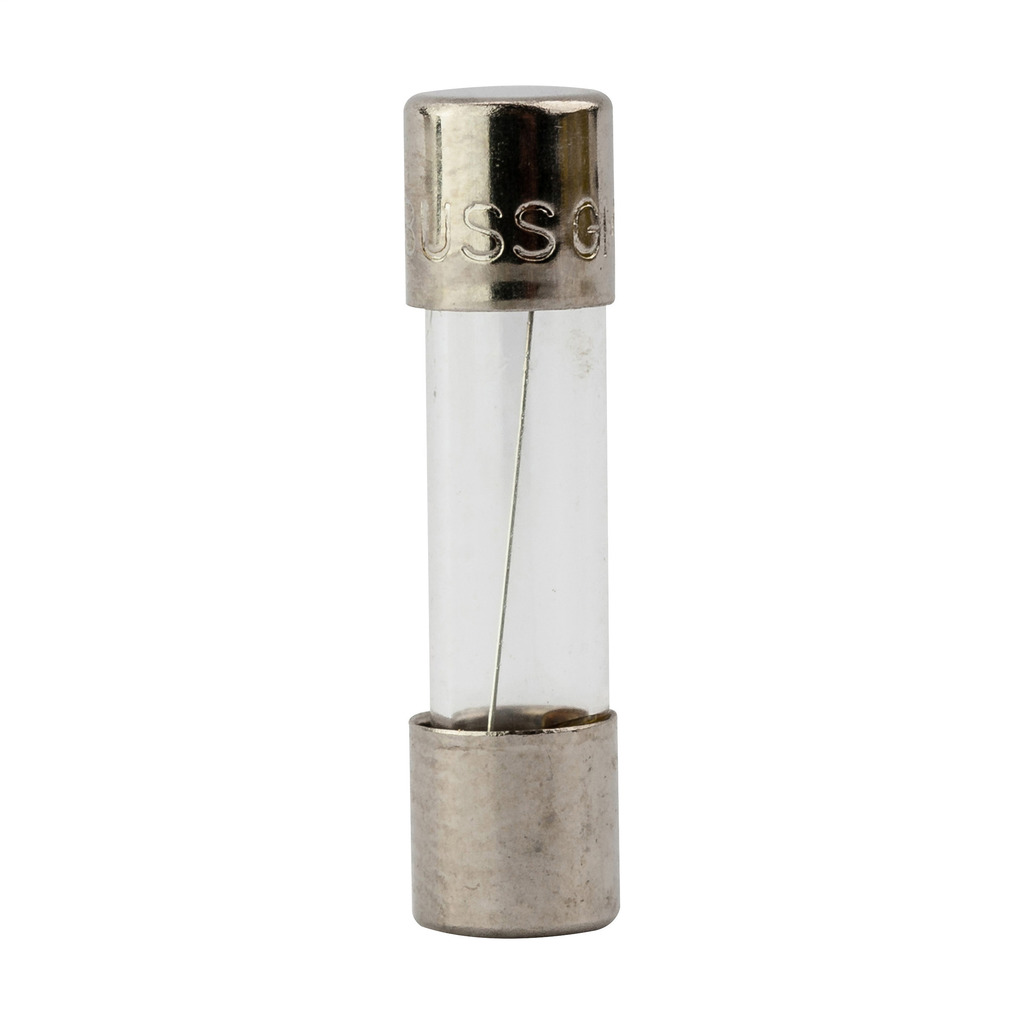

BK/GMA-1-R Low Breaking Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- BK/GMA-1-R
- UPC:
- 051712647199
- Item #:
- 503167
BK/GMA-1-R Low Breaking Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR #:
- BK/GMA-1-R
- UPC:
- 051712647199
- Item #:
- 503167
Fast-acting, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available with axial leads for thru-hole installation Eatons GMA fast-acting, glass tube 5mm x 20mm ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Manuals & Documentation
| Catalog Number | BK/GMA-1-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 1 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 10 kAIC at 125 Vac|35 AIC at 250 Vac |
| Material | Glass tube|Nickel-plated brass end cap construction |
| Response Time | 60 min at 135%, 2 min at 200% |
| Special Features | Low Breaking Capacity, Interrupt Rating 35 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Complaint, Packag |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712647199 |
| GTIN | 00051712647199 |
| Item Type | Fast-acting fuse |
| Weight UOM | Pounds |
| Size | 5 mm Diameter X 20 mm Length |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) |
