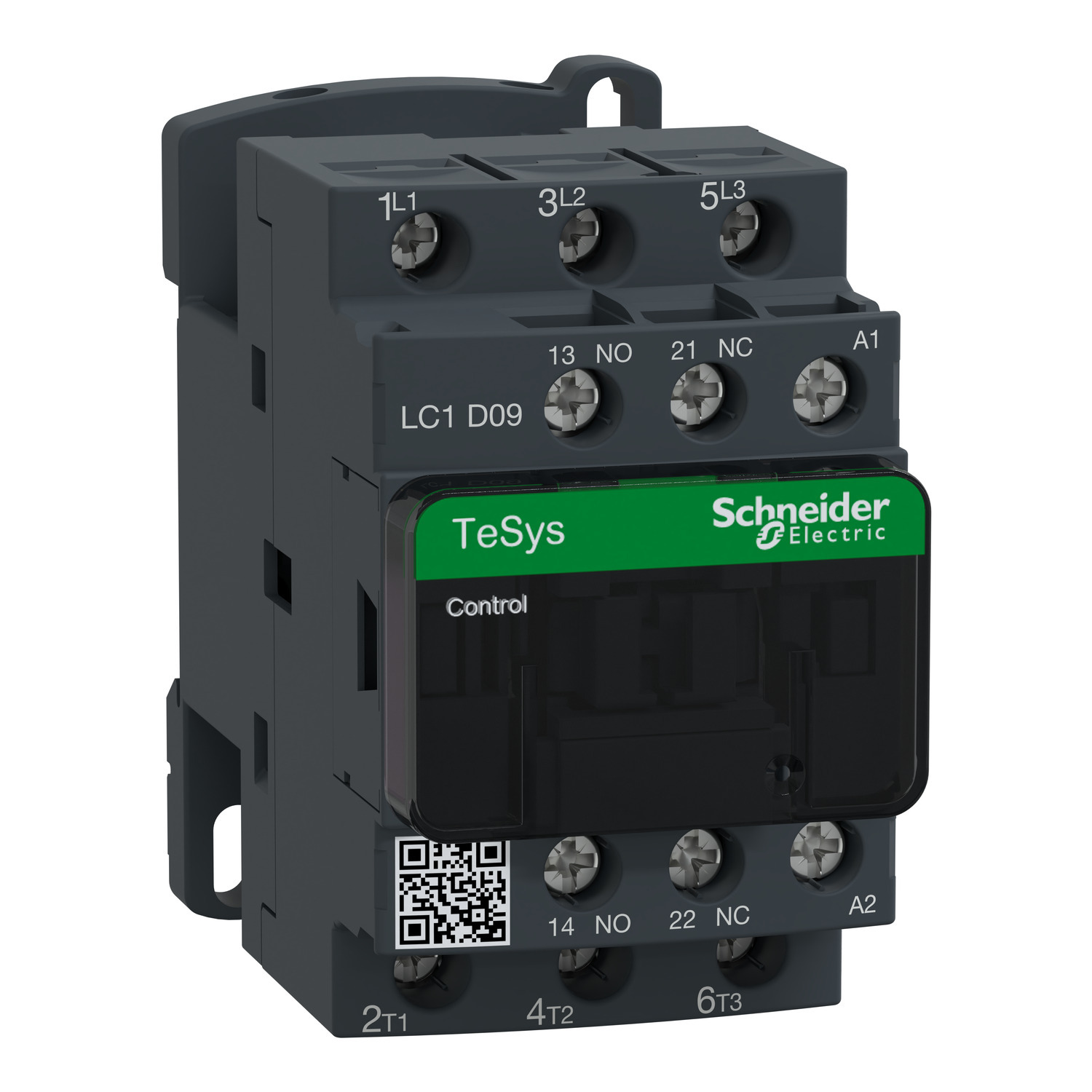

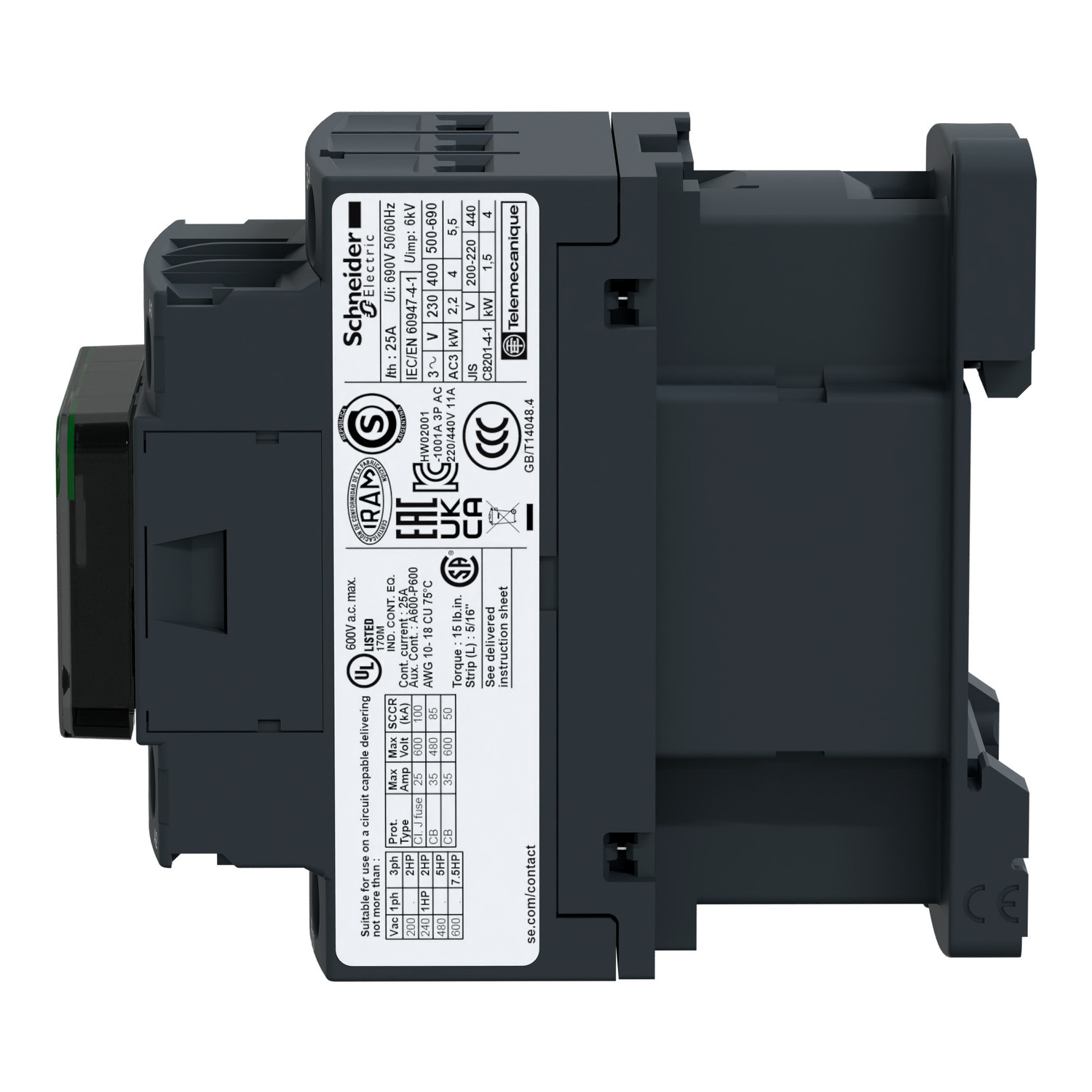

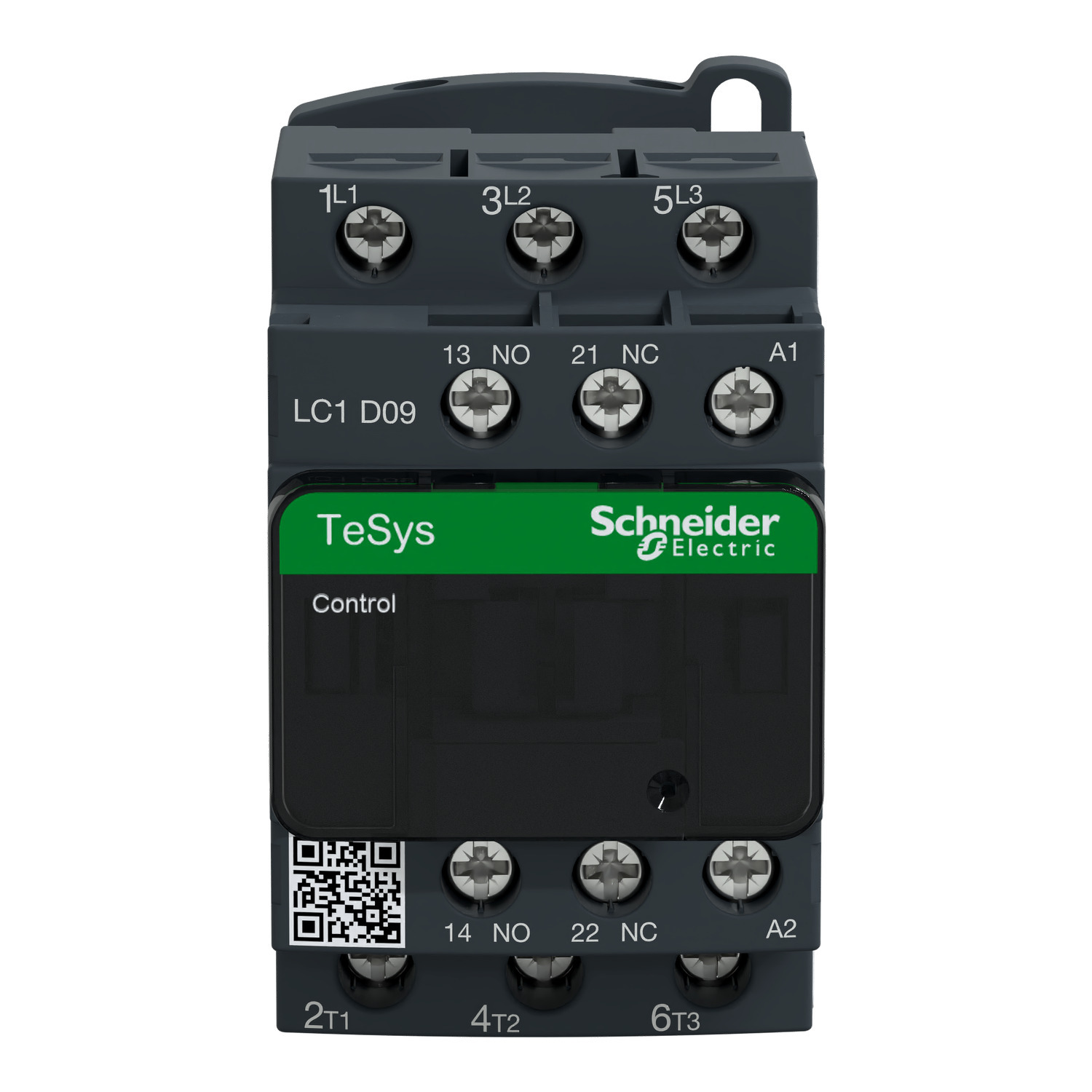

LC1D09K7 TeSys D Direc-On Line Non-Reversing IEC Contactor With Safety Cover, 100/690 V AC, 300 V DC V Coil, 25/9 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1D09K7
Item #:
502272

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 100V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 25A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 100 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.71 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals & Documentation
Catalog Number LC1D09K7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Motor control;resistive load
Coil Voltage 100 V AC 50/60 Hz
Connection Power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1

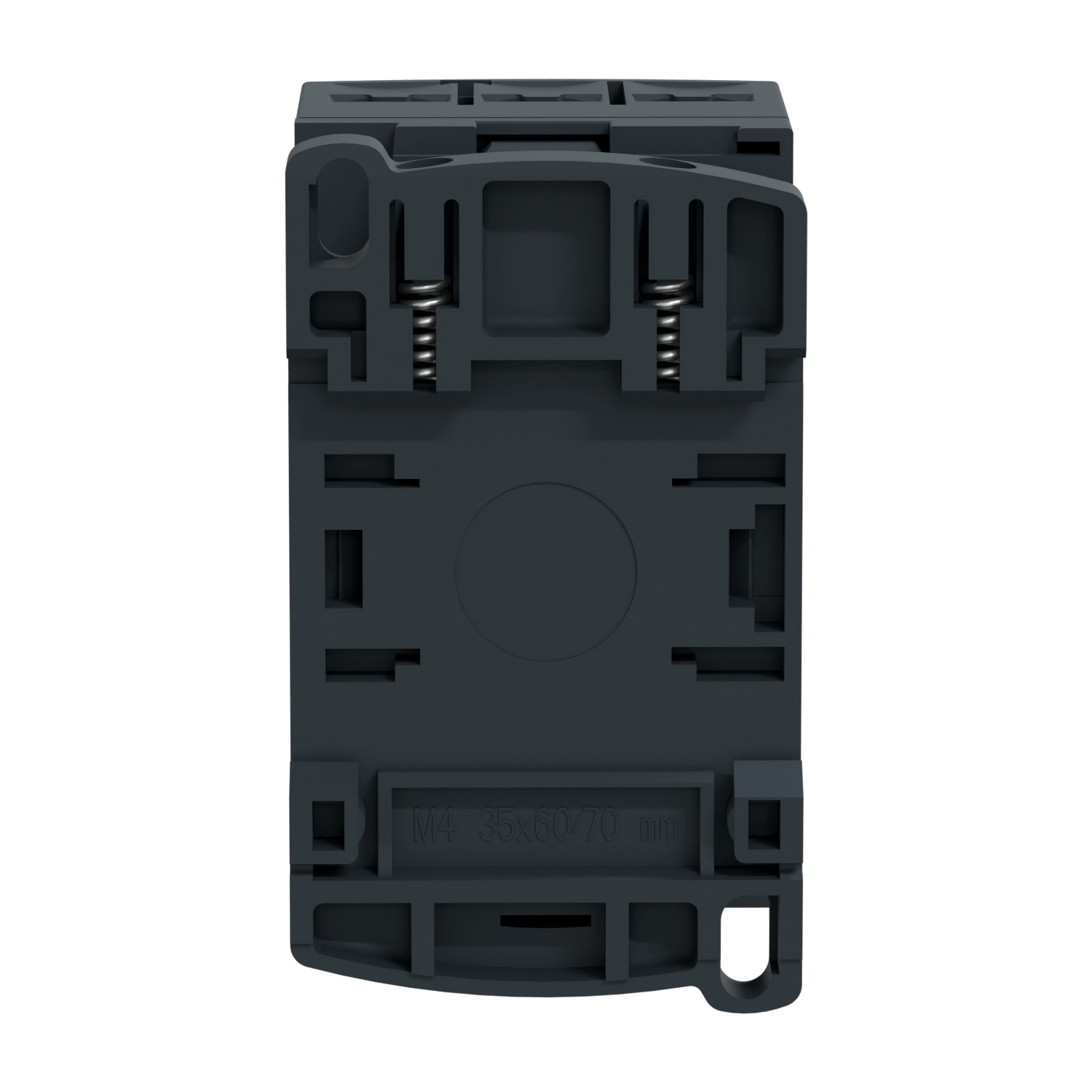

Mounting Rail Plate
Special Features Without built-in suppressor module
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1470756&lang=en-us
GTIN 03389110348859
Item Type Contactor
