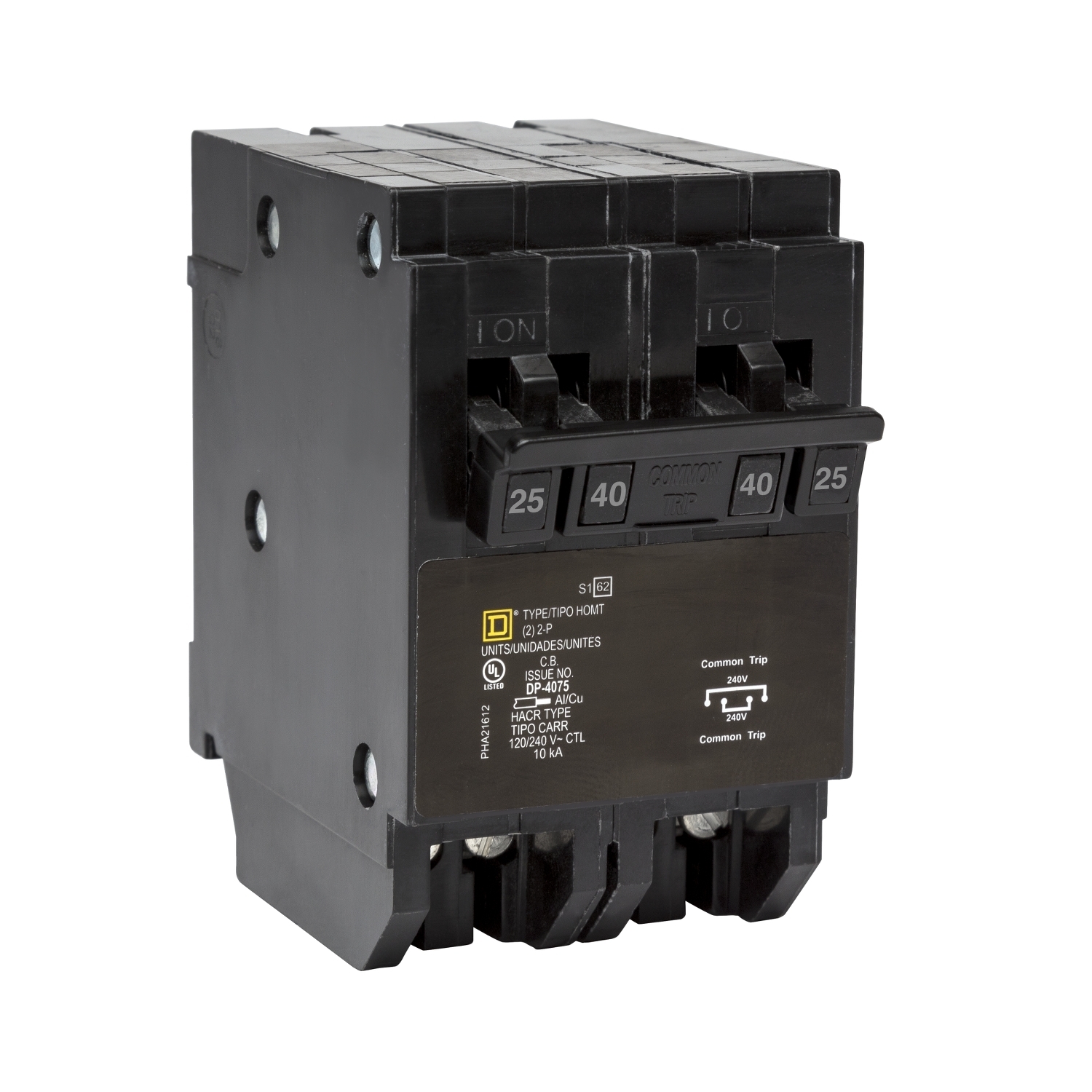

HOMT225240 Homeline Quad tandem circuit breaker, Homeline, 1 x 2 pole at 25A, 1 x 2 pole at 40A, 120/240VAC, 10kA AIR, plug in, UL

MFR:
Schneider Electric
MFR #:
HOMT225240
UPC:
785901970422
Item #:
502086

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 25A at 120/240 VAC and other two pole breaker is rated 40A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 25A two pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 40A two pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Manuals & Documentation
Catalog Number HOMT225240
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=469269253&lang=en-us
UPC 785901970422
GTIN 00785901970422
Width 1.970000000000000
Width UOM Inch
Height 3.130000000000000
Height UOM Inch
Depth 3.29 IN
