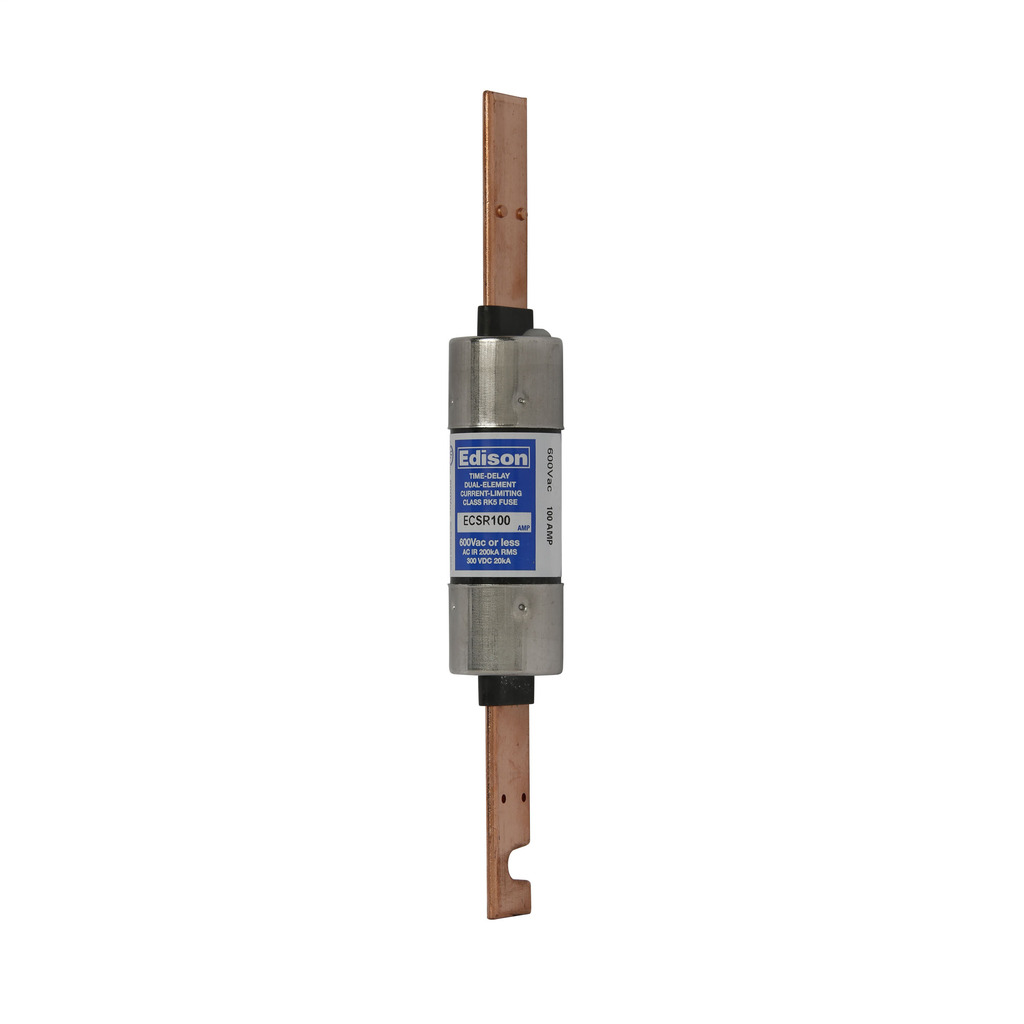

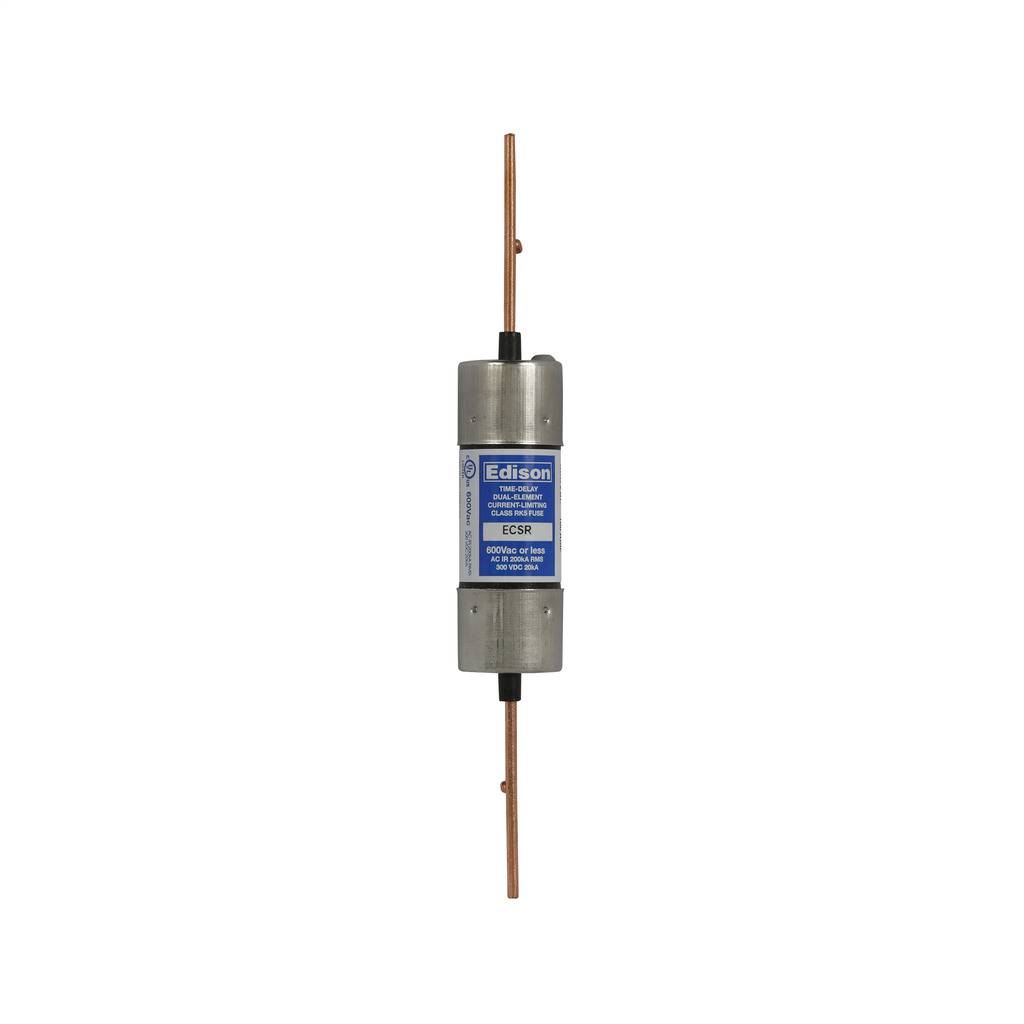

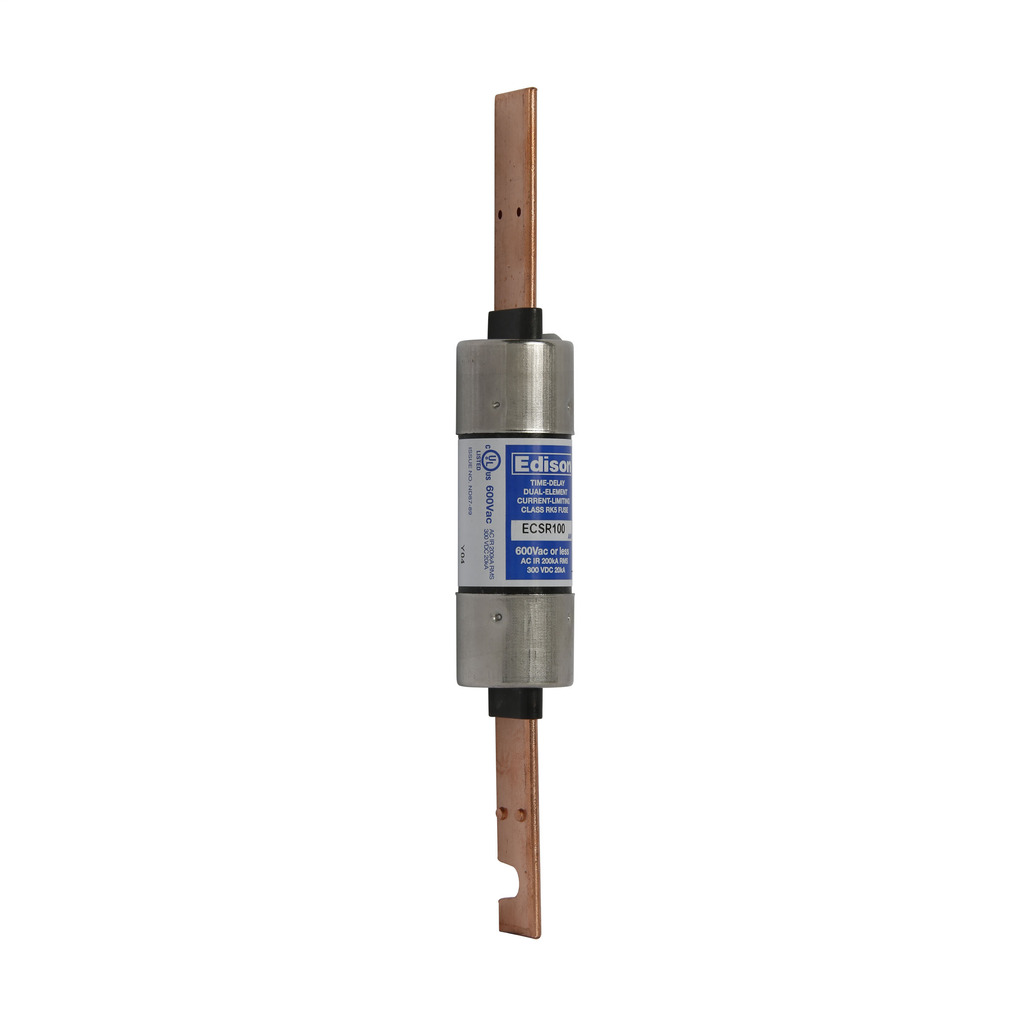

ECSR90 Bullet Current Limiting Time Delay Fuse, 90 A, 600 V, 200 kAIC Interrupt, RK5 Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- ECSR90
- UPC:
- 782634508427
- Item #:
- 501833
ECSR90 Bullet Current Limiting Time Delay Fuse, 90 A, 600 V, 200 kAIC Interrupt, RK5 Class, Cartridge Body
- MFR #:
- ECSR90
- UPC:
- 782634508427
- Item #:
- 501833
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
Manuals & Documentation
| Catalog Number | ECSR90 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton |
| Sub Brand | Edison |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 90 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Blade end x blade end |
| Interrupt Rating | 200 kAIC |
| Response Time | 10 S at 500% |
| Special Features | Superior overload and cycling capabilities |
| Standard | CE Marked |
| UPC | 782634508427 |
| GTIN | 00782634508427 |
| Item Type | Fuse |
| Dimensions | 1.5000 IN X 0.4100 IN X 0.4100 IN |
| Weight UOM | Pounds |
| Size | 1.11 In Diameter X 7.88 In Length |
| Type of Indicators | Non-Indicating |
| Voltage Rating | 600 V |
