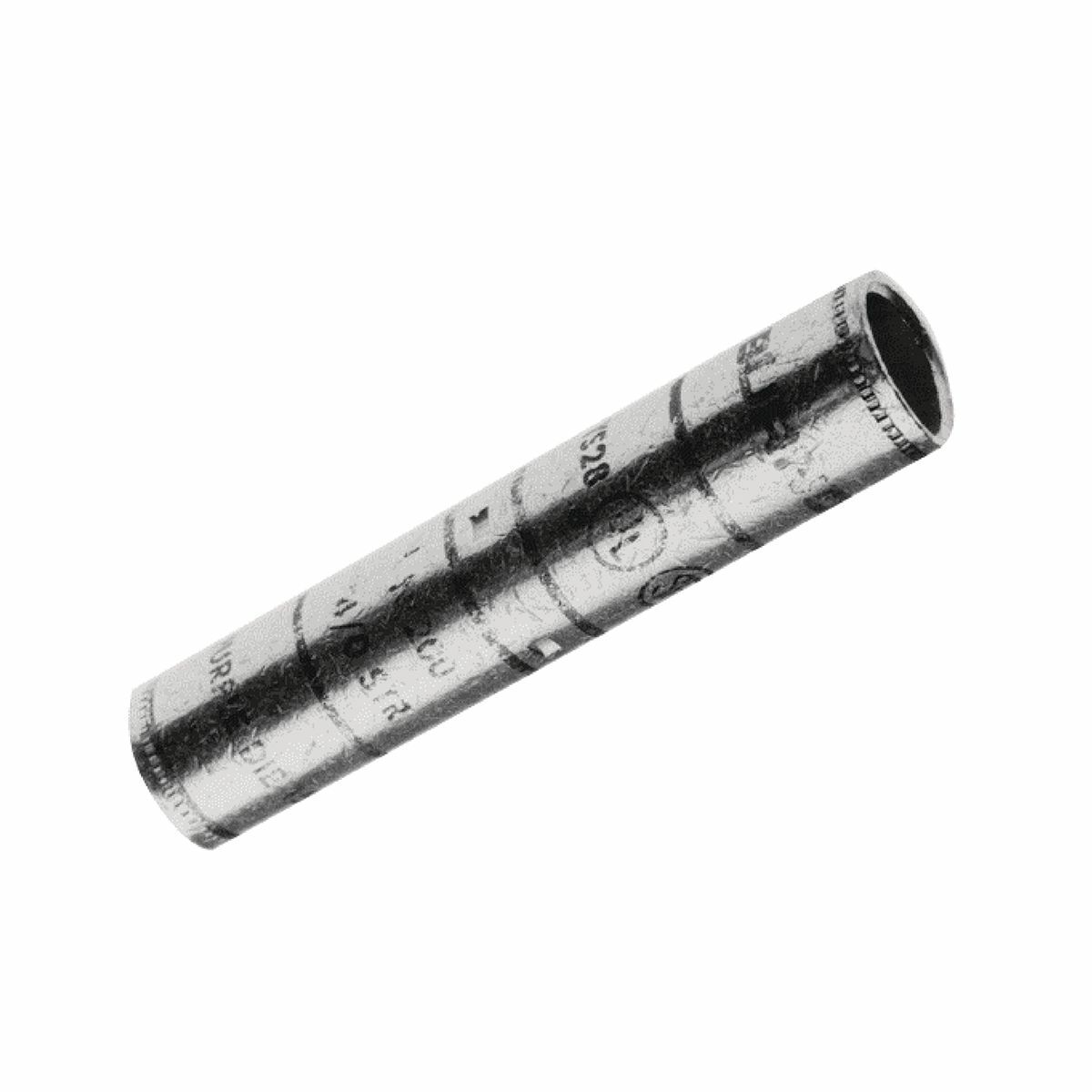

YS3C Type YS Long Barrel Compression Butt Splice, 3 AWG Conductor, 2.8 in L, Long Barrel, Copper, White
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YS3C
- UPC:
- 781810507100
- Item #:
- 501620
YS3C Type YS Long Barrel Compression Butt Splice, 3 AWG Conductor, 2.8 in L, Long Barrel, Copper, White
- MFR #:
- YS3C
- UPC:
- 781810507100
- Item #:
- 501620
Manuals & Documentation
| Catalog Number | YS3C |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Splice |
| Finish | Tin-Plated |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Color Code: White, Tapered End: No, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Oil Stop: No, Die Index: 9 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y2MR Tool, Y1MRTC Tool, (4), MD6, OUR840 Tool, U3CRT Die, (2), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 1-5/16 IN |
| Standard | UL 486A-486B |
| UPC | 781810507100 |
| GTIN | 00781810507100 |
| Item Type | YS, Long Barrel |
| Voltage Rating | 35 |
| Cross Reference Products | CTL-3 |
