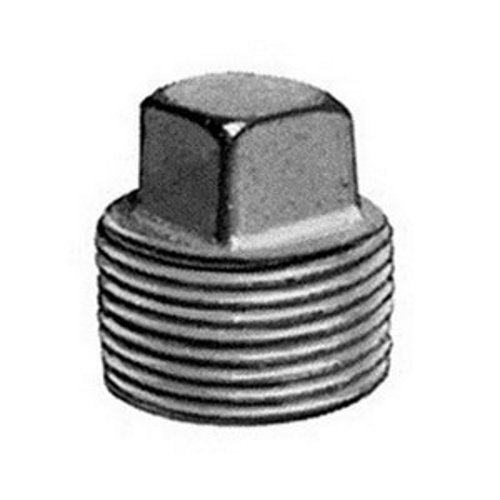

Close-Up Plug; 3 Inch, Tapered MNPT, Malleable Iron, Electro-Zinc-Plated
- MFR:
- Appleton Electric
- MFR #:
- PLG-300S
- UPC:
- 781381652605
- Item #:
- 501560
Close-Up Plug; 3 Inch, Tapered MNPT, Malleable Iron, Electro-Zinc-Plated
- MFR #:
- PLG-300S
- UPC:
- 781381652605
- Item #:
- 501560
UNILETS Square Head Close-Up Plug, Size: 3 IN, Material: Malleable Iron, Finish: Zinc Electroplate, Connection: Tapered MNPT, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25 And 30, CSA 065181, UL Listed For Class I, Gro
Manuals & Documentation
Features
- Explosion proof, dust-ignition proof; Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
| Catalog Number | PLG-300S |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| Connection | Tapered MNPT |
| Finish | Zinc Electroplate |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25 And 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; And Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381652605 |
| GTIN | 00781381652605 |
| Item Type | Square Head Close-Up Plug |
| Length | 4.3000 |
| Length UOM | Inch |
| Width | 3.2000 |
| Width UOM | Inch |
| Height | 3.0000 |
| Height UOM | Inch |
| Weight | 1.640 |
| Weight UOM | Pounds |
| Size | 3 |
