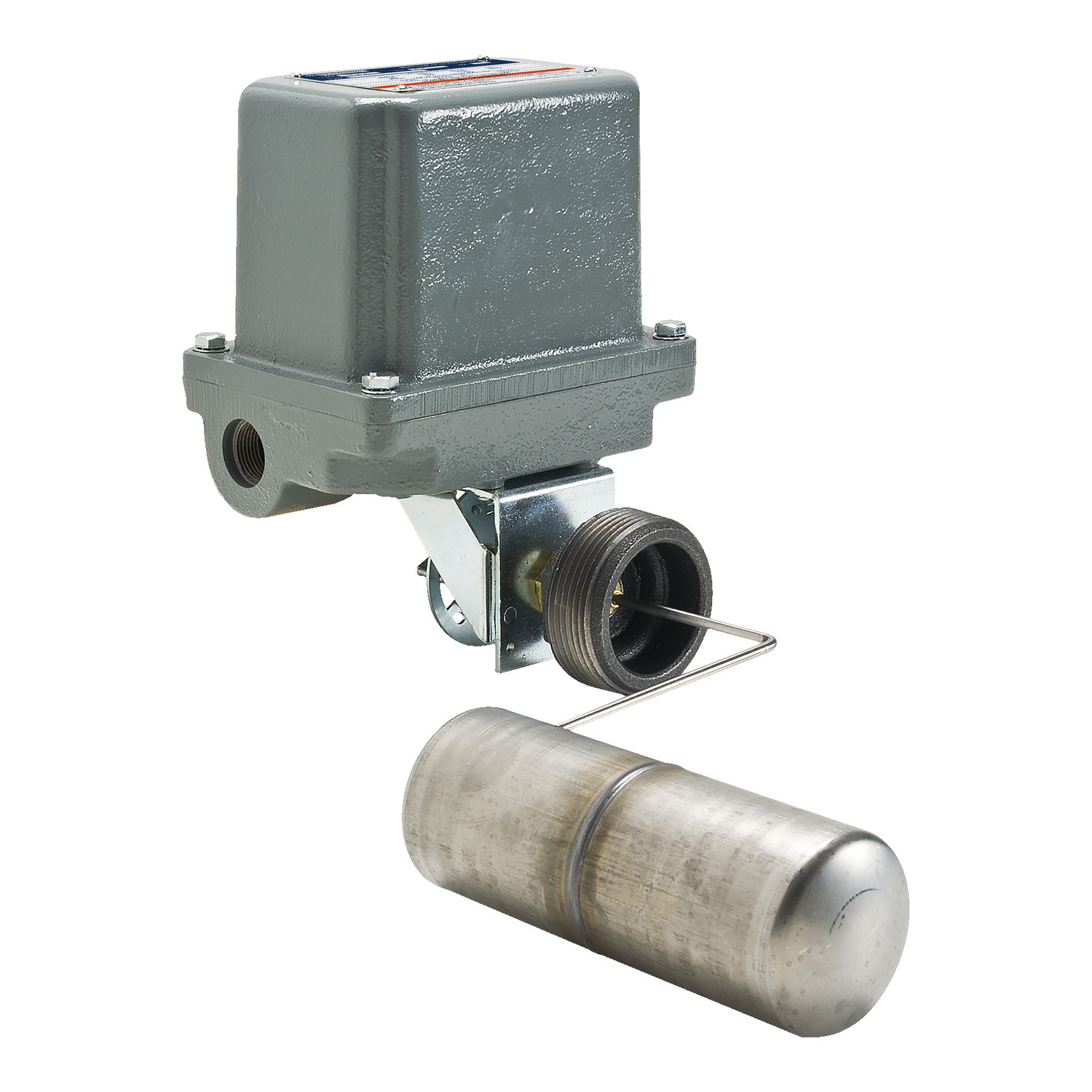

9038CW32 Pumptrol 9038 2-Pole Type C Adjustable Closed Tank Mechanical Alternator DPST Float Switch, 575 V AC Input, -22 to 220 deg F
- MFR:
- Telemecanique Sensors
- MFR #:
- 9038CW32
- UPC:
- 785901064398
- Item #:
- 501425
9038CW32 Pumptrol 9038 2-Pole Type C Adjustable Closed Tank Mechanical Alternator DPST Float Switch, 575 V AC Input, -22 to 220 deg F
- MFR #:
- 9038CW32
- UPC:
- 785901064398
- Item #:
- 501425
Mechanical alternator, Square D Pumptrol, closed tank, NEMA 4, screw in bushing, 4NC DPST DB contacts
Manuals & Documentation
| Catalog Number | 9038CW32 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Contacts close on liquid rise |
| Application | Mechanically alternating the operation of two pumps or motors;Power circuit;Closed tank with bushing;For closed tank |
| Connection | 8 terminals;Screw-clamp terminals 10 AWG |
| Enclosure | NEMA 4 |
| Mounting | Screw |
| Number of Poles | 2 |
| Special Features | Set of 1;Without |
| Standard | CE-UL 508,CSA FILE LR25490-UL LISTED FILE E12158,NEMA 4 UL 50 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=394865&lang=en-us |
| UPC | 785901064398 |
| GTIN | 00785901064398 |
| Item Type | Mechanical alternator |
| Temperature Rating | -22-220 A Degrees F |
| Voltage Rating | 575VAC |
