SCHNEIDER ELECTRIC

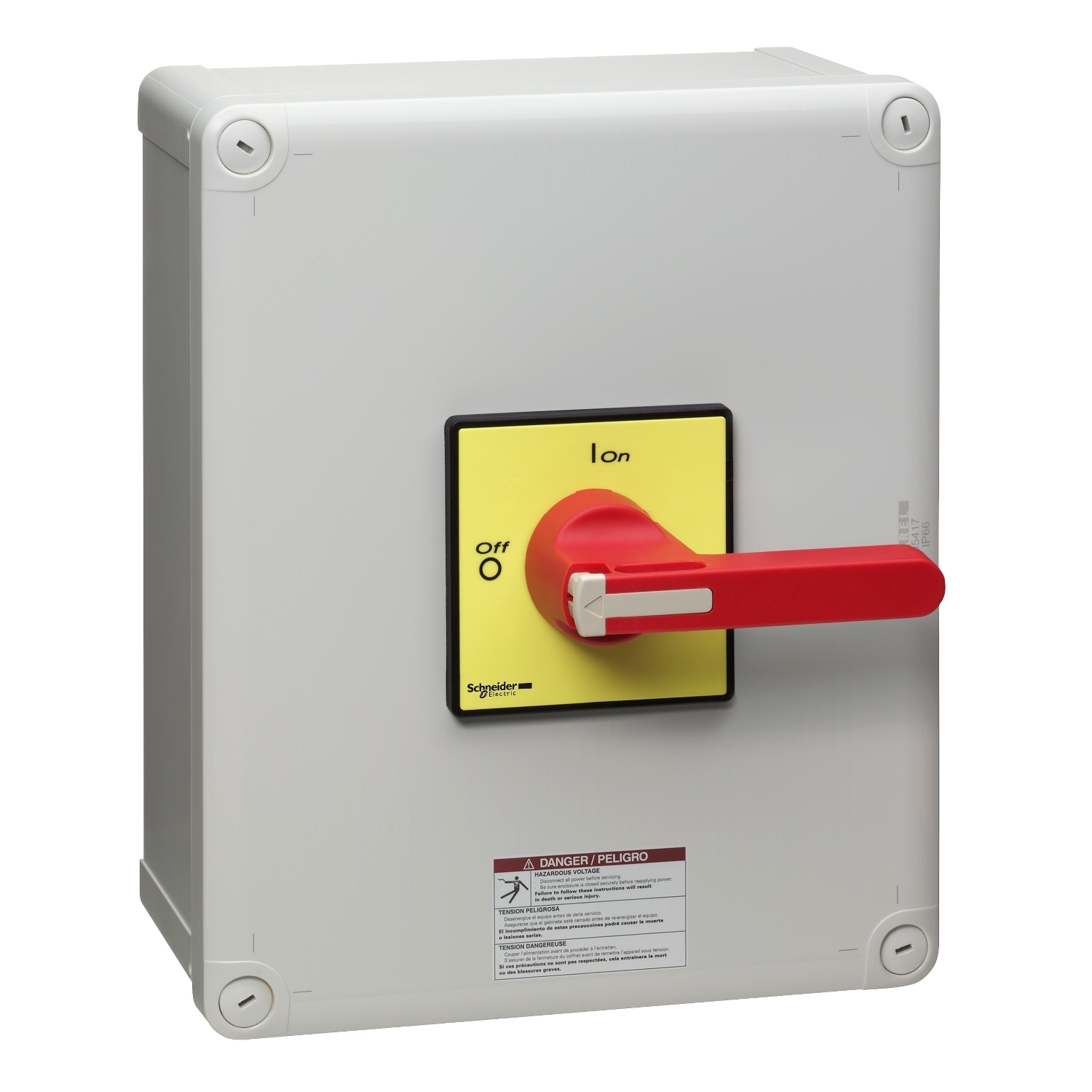

VC5GUN TeSys Vario Emergency Stop Enclosed High Performance Standard Disconnect Switch, 690 V AC/DC, 100 A, 3 Poles

MFR:
Schneider Electric
MFR #:
VC5GUN
Item #:
496858

VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 50HP@600V. It provides an IP65 / NEMA type 12 enclosure, V5 Vario switch disconnector and red & yellow operator. VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 50HP@600V. It includes a V5 Vario switch disconnector rated 100A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V5 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating long red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 1 add-on pole to the switch body , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).

Manuals & Documentation
Catalog Number VC5GUN
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Actuator Red;Rotary handle
Connection screw clamp terminals 95-95 mm² solid - with cable end; screw clamp terminals 70-70 mm² flexible
Number of Poles 3
Special Features 1 to 3 padlocks 4-8 mm;High performance
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61553345&lang=en-us
GTIN 03389119413145
Item Type Enclosed emergency stop switch disconnector
Size 90 x 90 mm
Environmental Conditions Standard environment
