Appleton

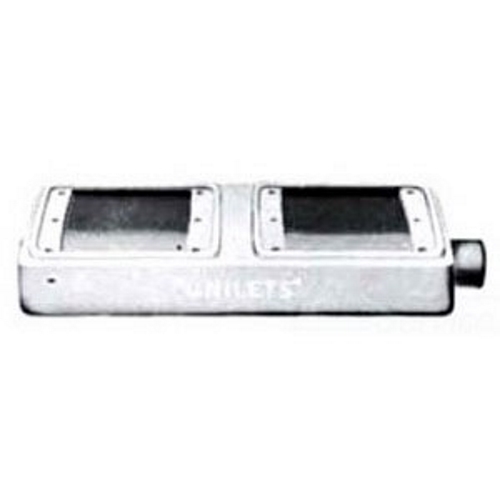

2-Gang FS Cast Device Box, 3/4 inch, Malleable Iron, Zinc Electroplated

MFR:
Appleton Electric
MFR #:
FS2T75
UPC:
781381342209
Item #:
496671

UNILETS FS Shallow Depth Tandem 2-Gang Cast Device Box, Number Of Outlet: 1, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (1) 3/4 IN Hub, Cubic Capacity: 40 CU-IN, Knockouts: No, Height: 9.44 IN, Width: 4.63 IN, Depth: 2 IN, Finish

Manuals & Documentation

Features

  • Stainless steel screws to prevent corrosion
  • All wet location covers supplied with sealing gaskets
  • Covers also mount on ordinary boxes with standard device box openings
Catalog Number FS2T75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Cable Entry (1) 3/4 IN Hub
Cubic Capacity 40 CU IN
Knockouts No
Material Malleable Iron
Special Features Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381342209
GTIN 00781381342209
Item Type FS Shallow Depth Tandem 2-Gang Cast Device Box
Length 12.0000
Length UOM Inch
Width 9.6000
Width UOM Inch
Height 0.6500
Height UOM Inch
Weight 3.800
Weight UOM Pounds
Size 3/4
