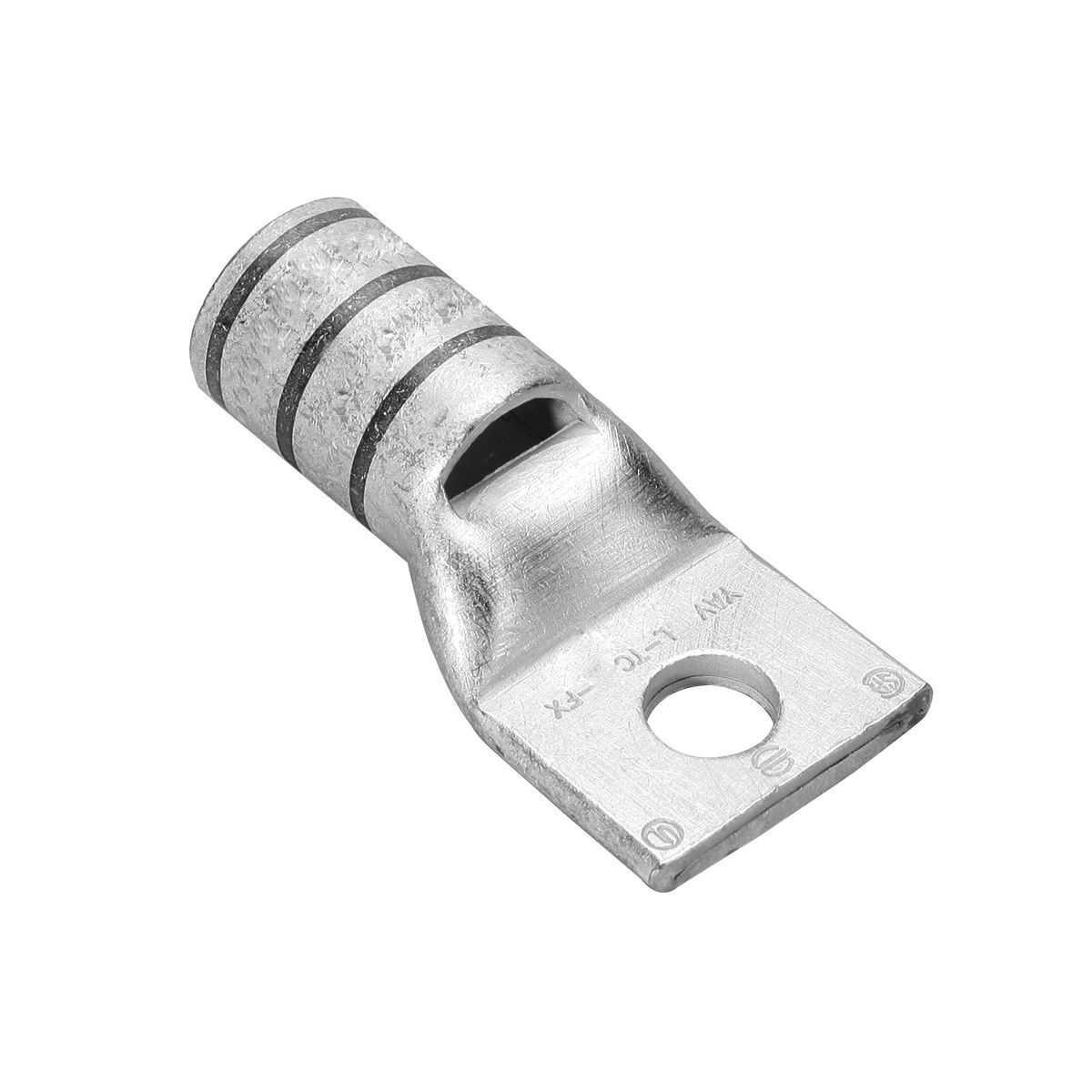

YA38LTC58FX YA-L-FX 1-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 5/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA38LTC58FX
- UPC:
- 781810021118
- Item #:
- 495838
YA38LTC58FX YA-L-FX 1-Hole Compression Lug With Inspection Window, 535.3 kcmil Flexible Copper Conductor, Die Code: L99, 5/8 in Stud, Copper
- MFR #:
- YA38LTC58FX
- UPC:
- 781810021118
- Item #:
- 495838
Manuals & Documentation
| Catalog Number | YA38LTC58FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: L99, Wire Strip Length: 1-3/8 IN, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (2), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper |
| Standard | UL 486A-486B |
| UPC | 781810021118 |
| GTIN | 00781810021118 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
