SQUARE D

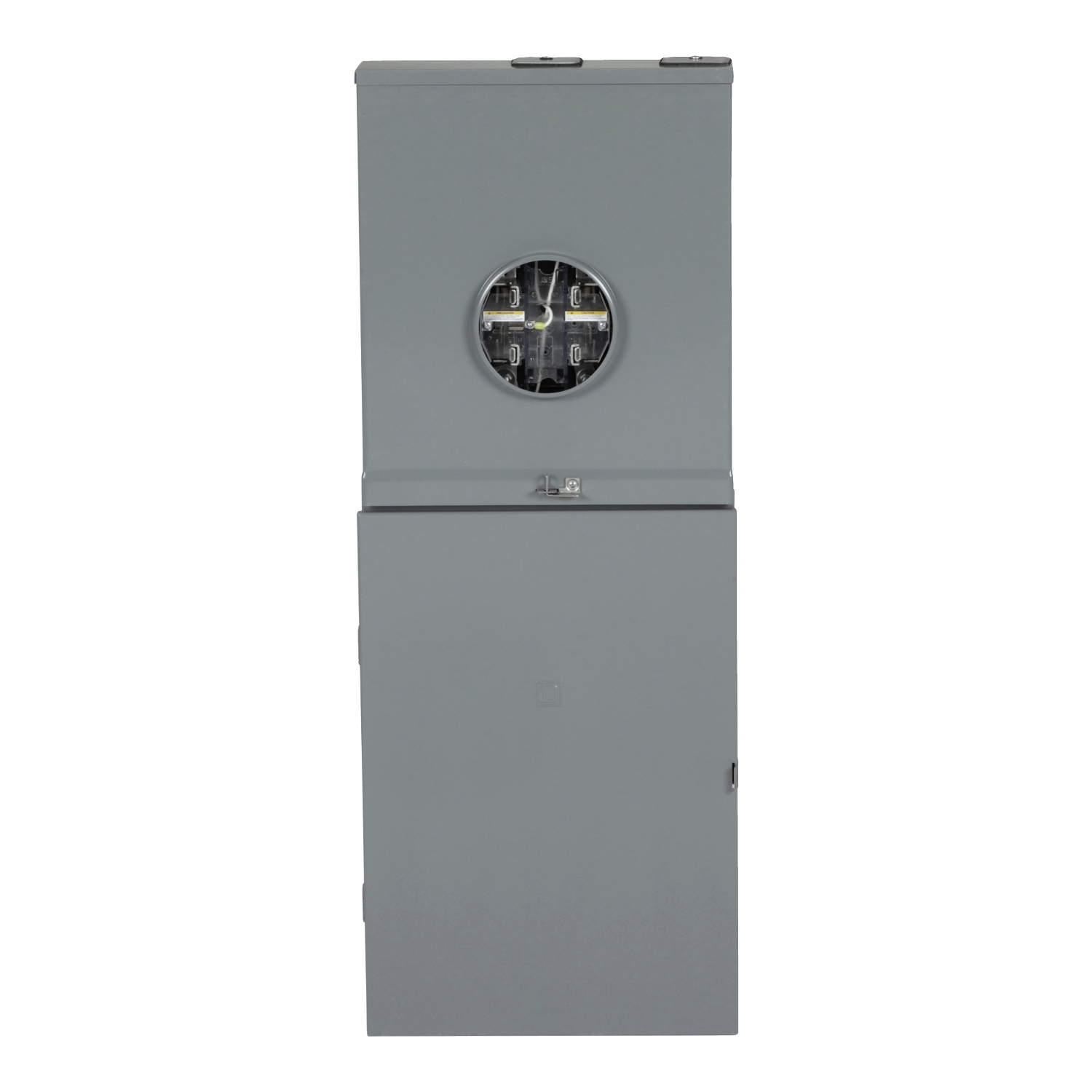

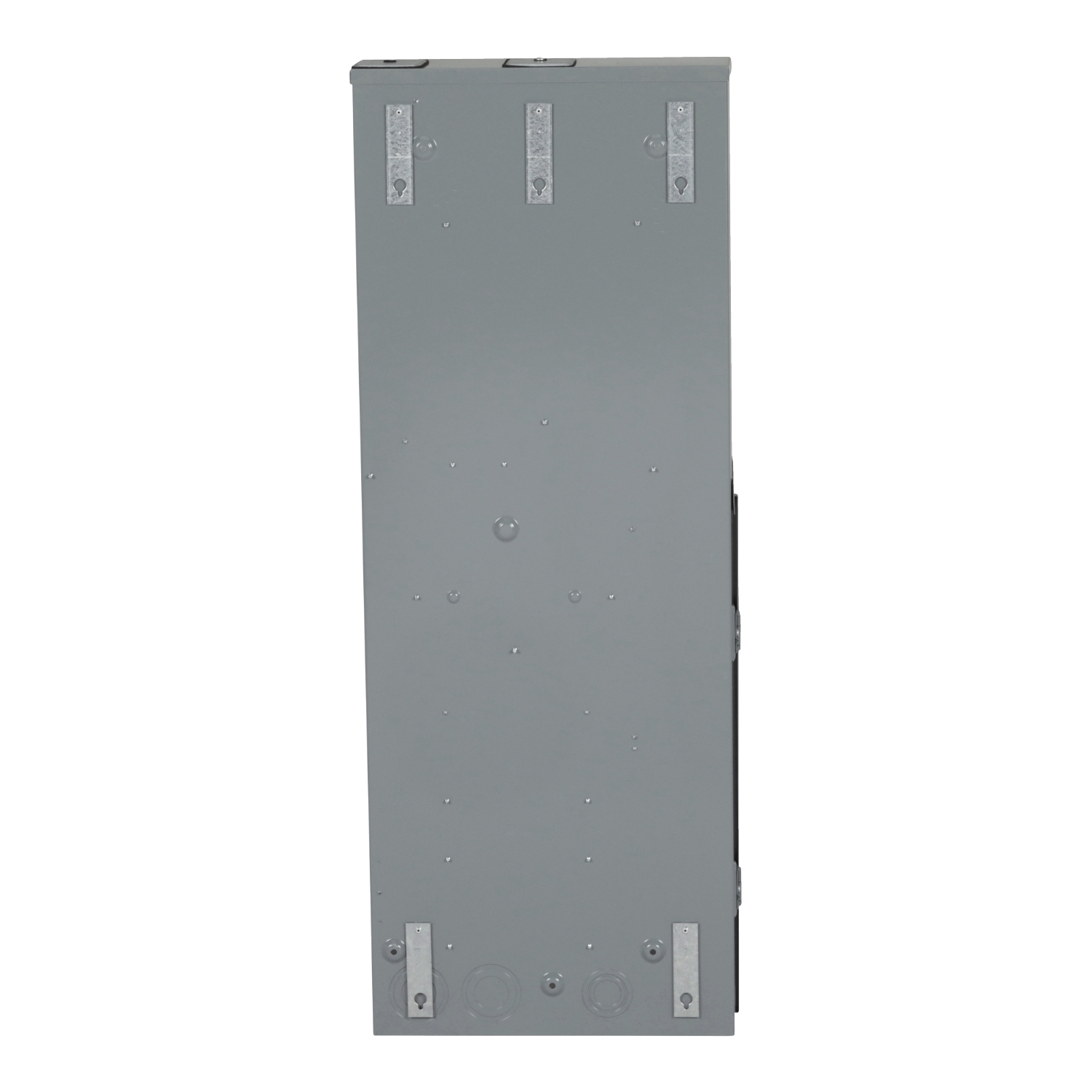

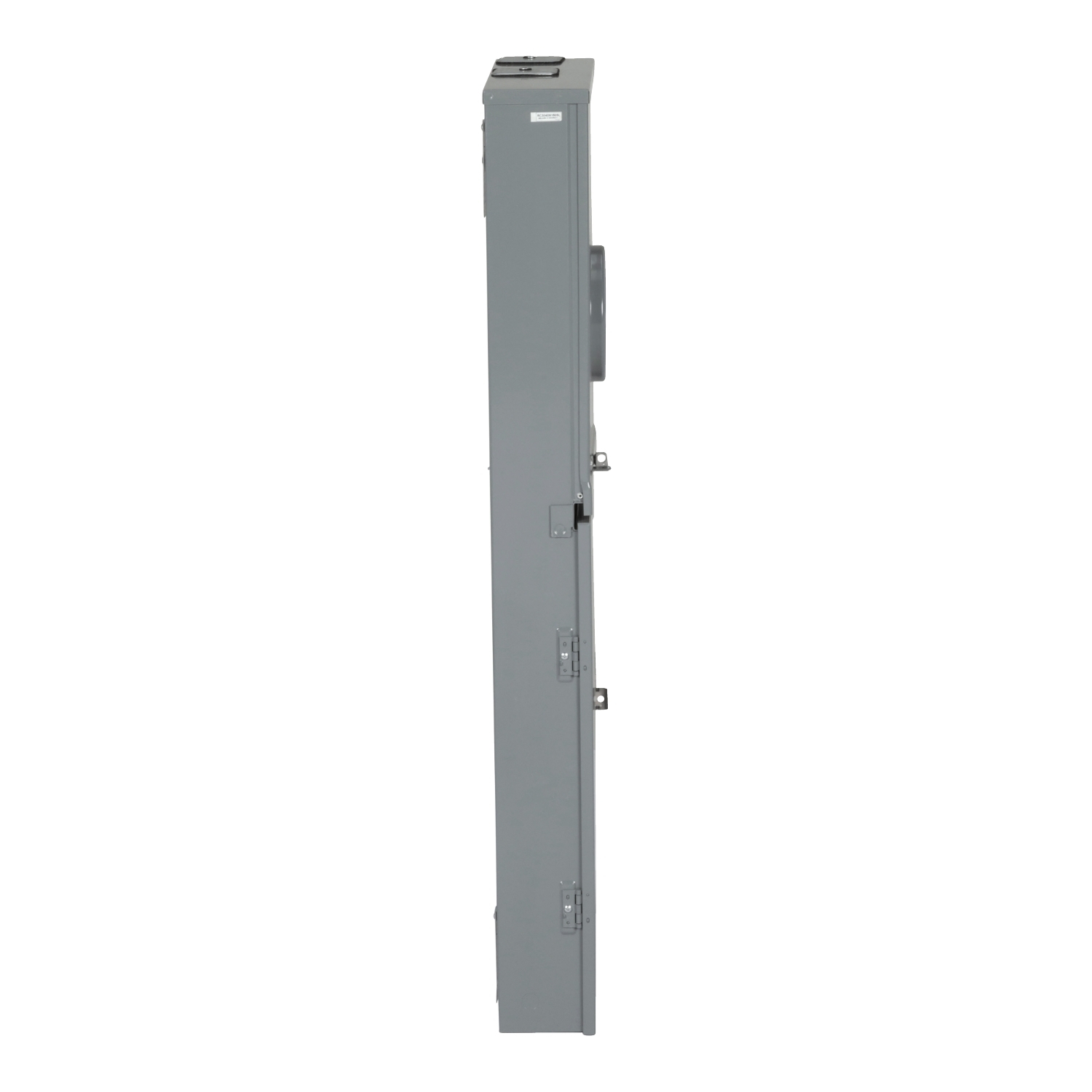

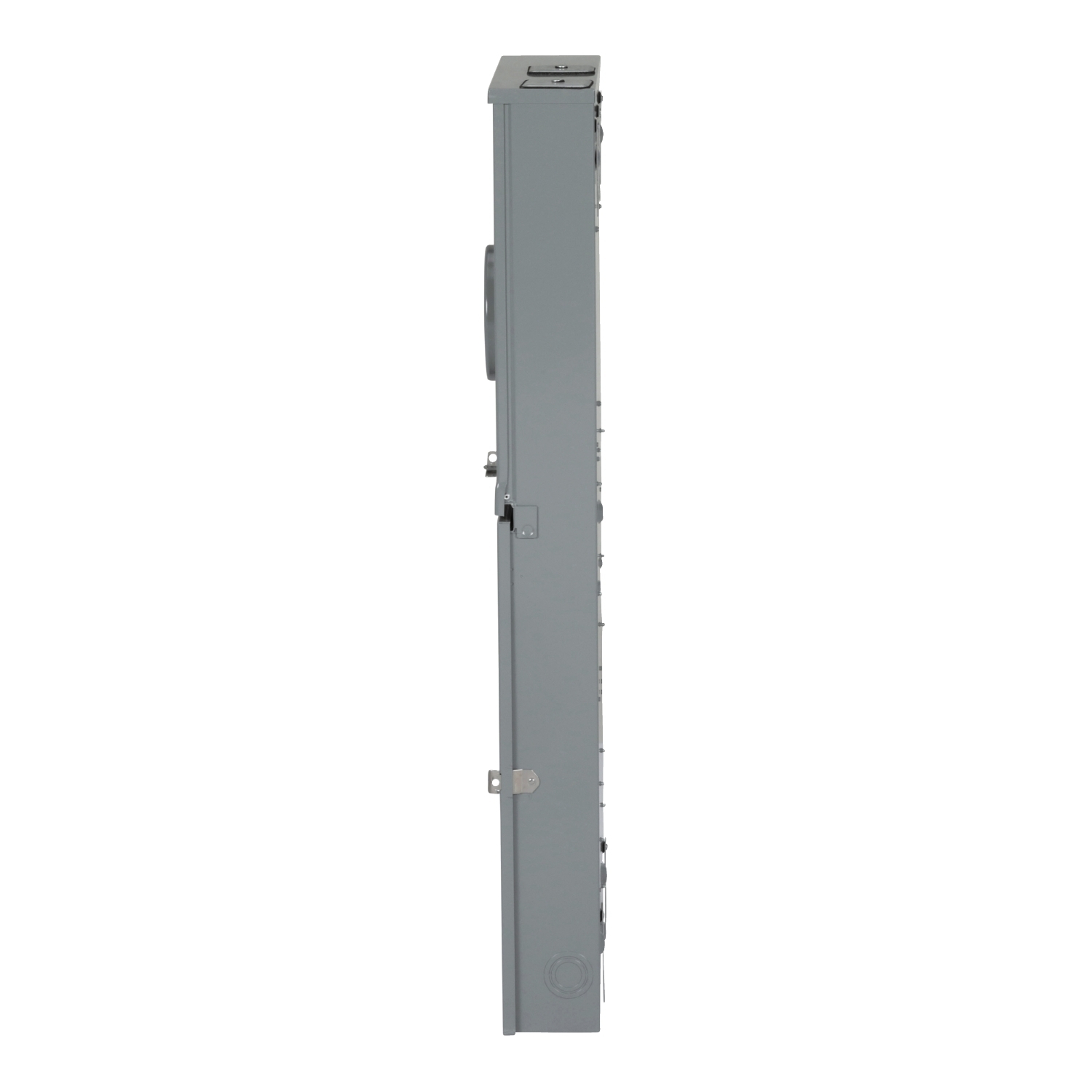

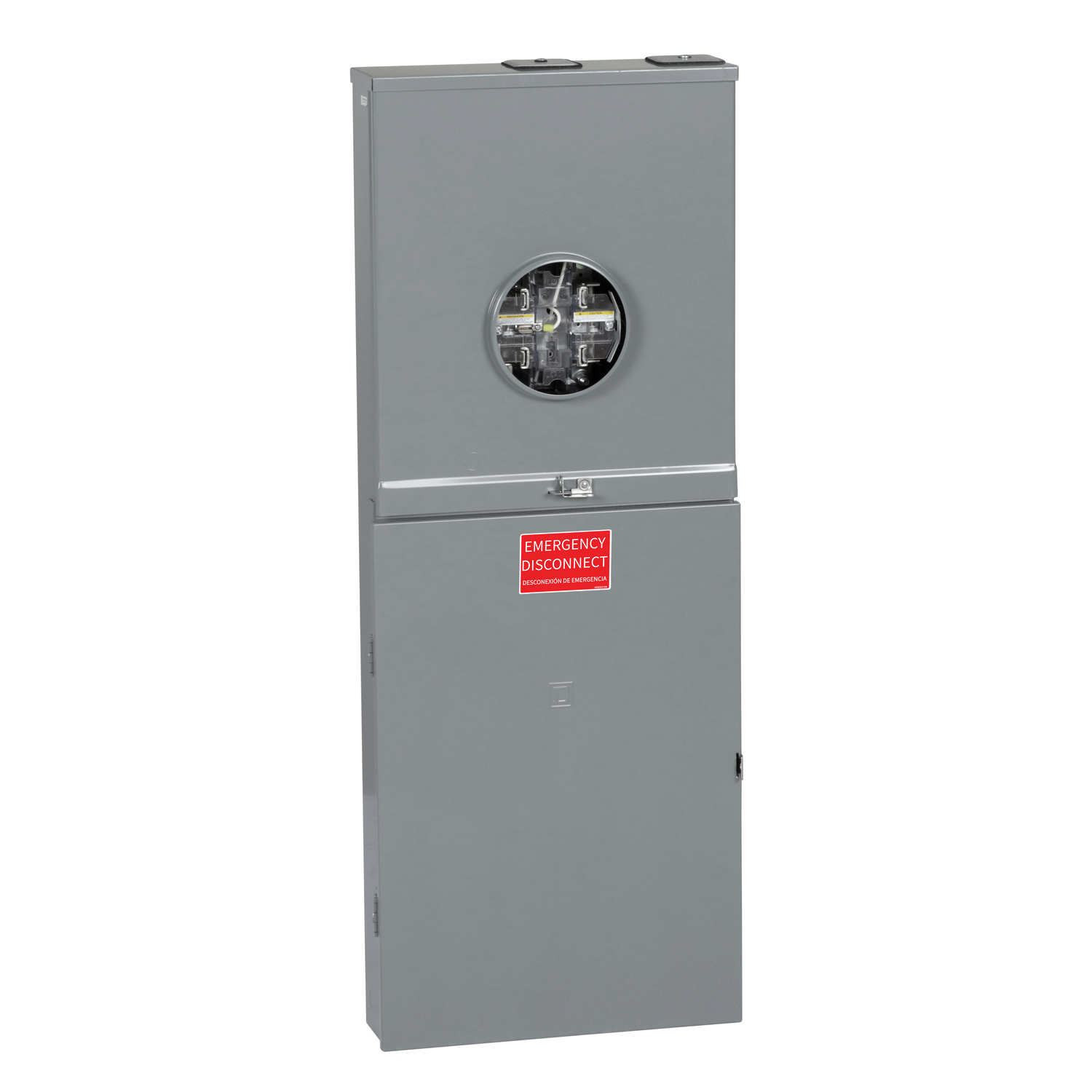

RC3040M150SL All-in-one, Homeline, CSED, Ringless Socket, 200 Amp, Surface Mount, 30 Spaces, 40 Circuits, 22 kA SCCR, Lever Bypass

MFR:
Schneider Electric
MFR #:
RC3040M150SL
UPC:
785901632030
Item #:
495793

Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringless meter socket with lever bypass. This unit can be feed from an overhead or underground service. The service disconnect has a HOM2100 with a maximum rating of 100 A. Device has a 10 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 20.79 inches tall, 13.46 inches wide and 4.56 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed.

Manuals & Documentation
Catalog Number RC3040M150SL
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type Lever
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61547959&lang=en-us
UPC 785901632030
GTIN 00785901632030
Width 18.35
Width UOM Inch
Height 48.62
Height UOM Inch
Depth 6.05 IN
