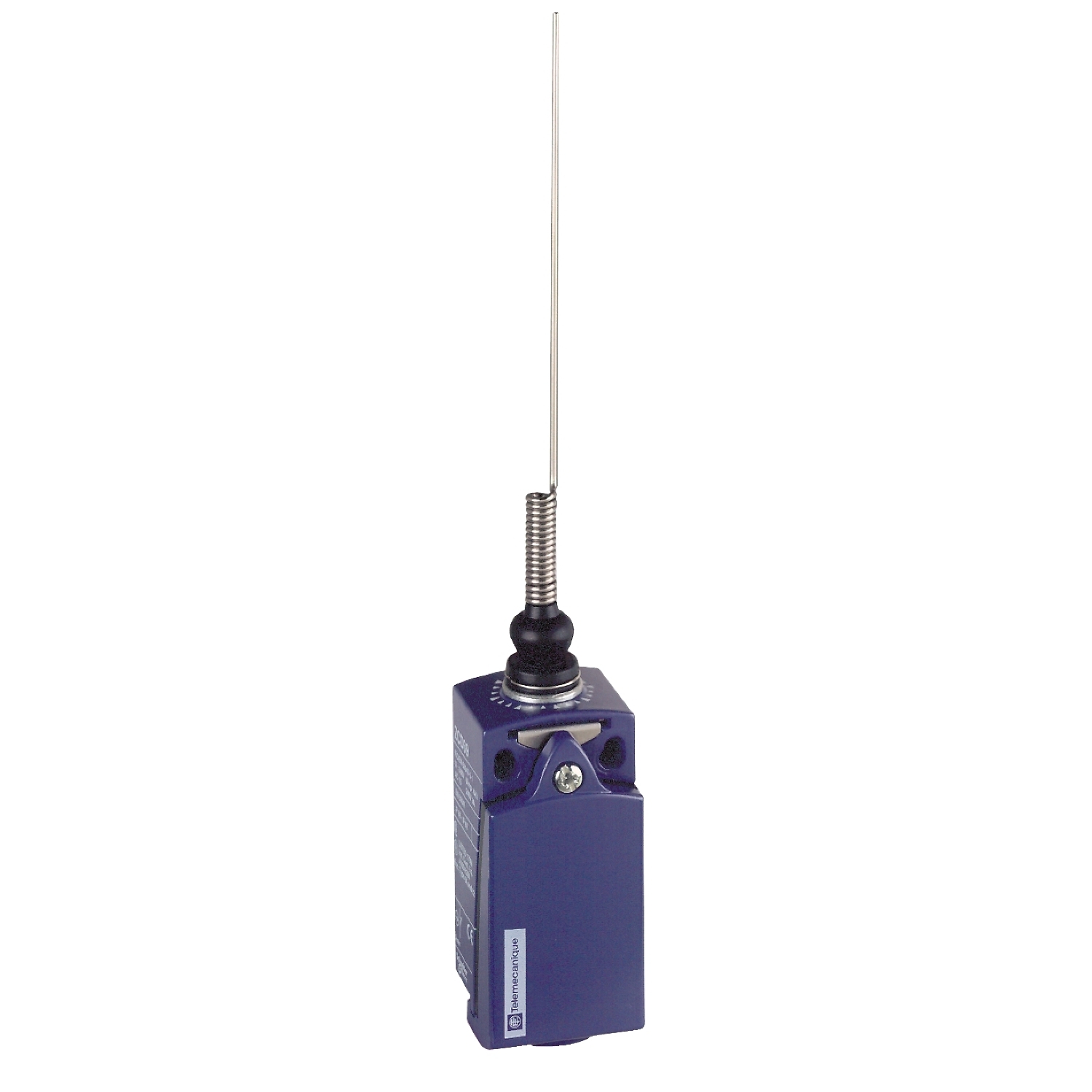

XCKD2106N12 OsiSense Compact Fixed Heavy Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Cat Whisker Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKD2106N12
- UPC:
- 785901300533
- Item #:
- 495147
XCKD2106N12 OsiSense Compact Fixed Heavy Duty Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Cat Whisker Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKD2106N12
- UPC:
- 785901300533
- Item #:
- 495147
limit switch XCKD - cat's whisker - 1NC+1NO - snap - 1/2NPT
Manuals & Documentation
| Catalog Number | XCKD2106N12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Multi-directional approach;Snap action;By any moving part |
| Actuator | Spring return cat''s whisker |
| Amperage Rating | 10 |
| Application | COMPACT VARIABLE |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4/6/12/13 IP66/67 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60947-5-1-UL 508-IEC 60204-1-EN 60204-1-CSA C22.2 NO 14-IEC 60947-5-1,IK06 EN 50102,UL-CSA-CCC,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=855910&lang=en-us |
| UPC | 785901300533 |
| GTIN | 03389110305289 |
| Item Type | Limit switch |
| Size | 1 ENTRY TAPPED FOR 1/2 NPT CABLE GLAND,COMPACT,FIXED |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 240VAC/250VDC |
