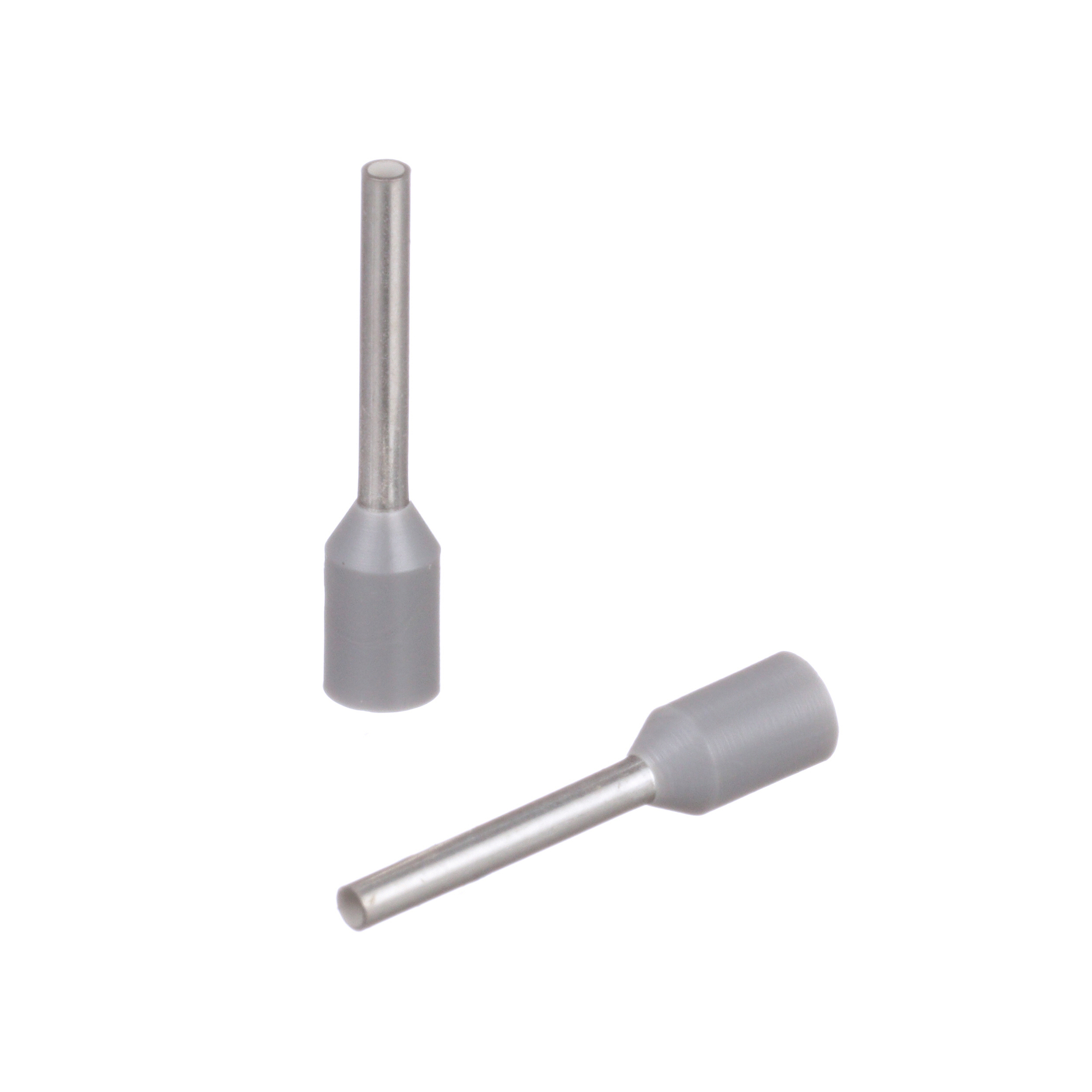

FSD72-8-D Pan-Term Type FSD DIN End Sleeve Single Insulated Wire Ferrule, 26 AWG, 0.49 in L, Copper, Gray
- MFR:
- Panduit
- MFR #:
- FSD72-8-D
- UPC:
- 074983763948
- Item #:
- 493848
FSD72-8-D Pan-Term Type FSD DIN End Sleeve Single Insulated Wire Ferrule, 26 AWG, 0.49 in L, Copper, Gray
- MFR #:
- FSD72-8-D
- UPC:
- 074983763948
- Item #:
- 493848
The single wire DIN end sleeve insulated ferrule in gray has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #26 (0.14 mm) wire ferrules and supports a maximum wire insulated diameter of 0.07 (2.0 mm). The insulated ferrule is 0.41 (10.5 mm) long and has a wire strip length of 0.375 (9.5 mm). It comes in standard packages of 500.
Manuals & Documentation
| Catalog Number | FSD72-8-D |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Gray |
| Finish | Tin-Plated |
| Insulation | Polypropylene |
| Material | Copper |
| Standard | DIN 46228 Part 4, CSA C22.2 No. 291-14 |
| UPC | 074983763948 |
| GTIN | 00074983763948 |
| Item Type | Covered Single Wire Ferrule |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Wire Size | 26 AWG |
