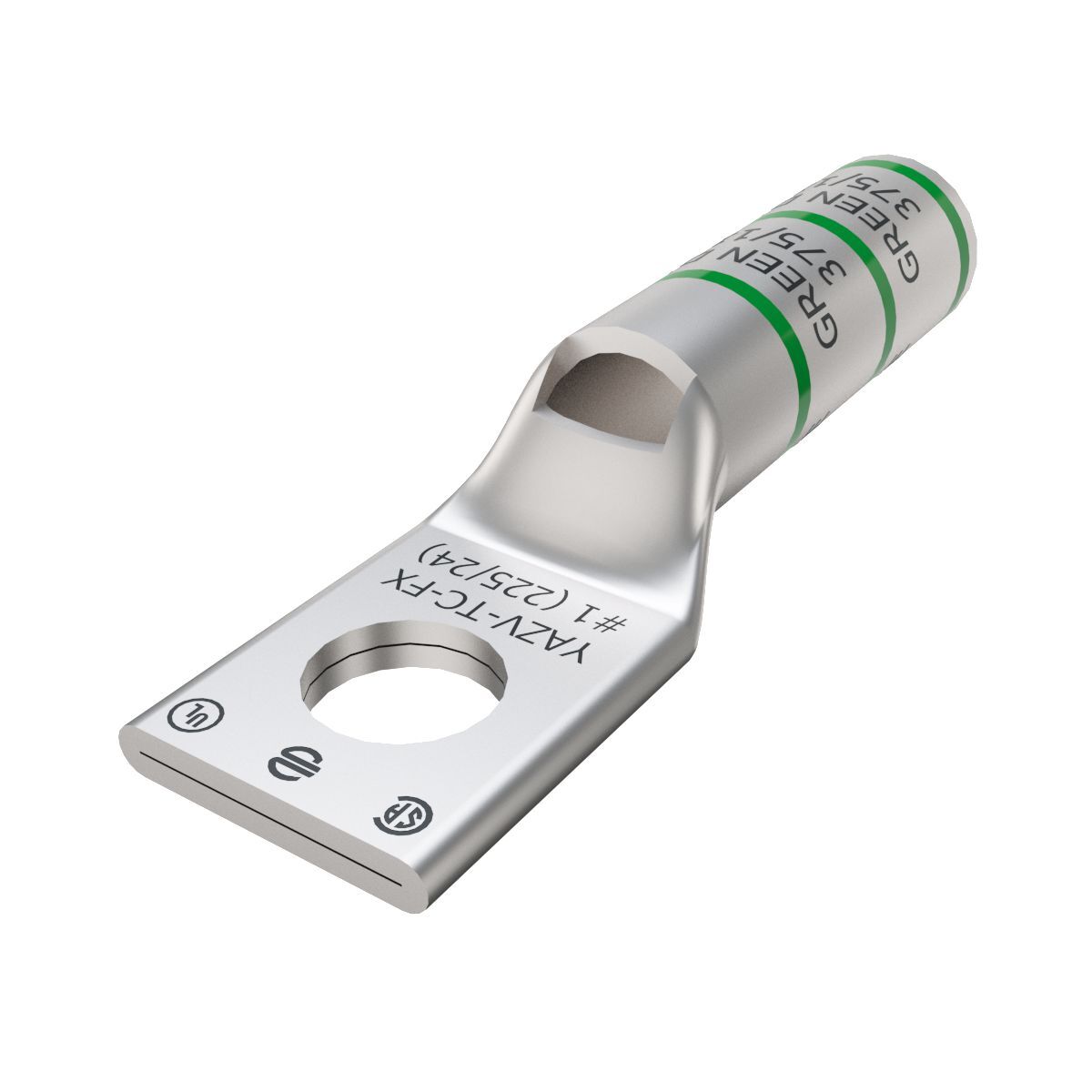

YAZV1CTC38FX 1-Hole Compression Lug Inspection Window With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11/375, 3/8 in Stud, Tin Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZV1CTC38FX
- UPC:
- 781810241400
- Item #:
- 492092
YAZV1CTC38FX 1-Hole Compression Lug Inspection Window With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11/375, 3/8 in Stud, Tin Copper
- MFR #:
- YAZV1CTC38FX
- UPC:
- 781810241400
- Item #:
- 492092
Manuals & Documentation
| Catalog Number | YAZV1CTC38FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Die Index: 11, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Wire Strip Length: 1-7/16 IN, Color Code: Green, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W1CVT, W1CRT-1, X1CRT-1 Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W1CVT, W1CRT-1, X1CRT-1 Die, (2), Y35, Y39, Y750, PAT750 Tool, U1CRT-1 Die, (2), Y46 Tool, U1CRT-1 Die With PUADP-1 Adapter, (2), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| Standard | UL 486A-486B |
| UPC | 781810241400 |
| GTIN | 00781810241400 |
| Item Type | YAZV, Long Barrel |
| Voltage Rating | 35 |
