9001BG209 Harmony Type BG Control Station, 600 V AC, 5 A, 2NO Contact, 2 Operators, NEMA 1 NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- 9001BG209
- UPC:
- 785901857372
- Item #:
- 48856
9001BG209 Harmony Type BG Control Station, 600 V AC, 5 A, 2NO Contact, 2 Operators, NEMA 1 NEMA Rating
- MFR #:
- 9001BG209
- UPC:
- 785901857372
- Item #:
- 48856

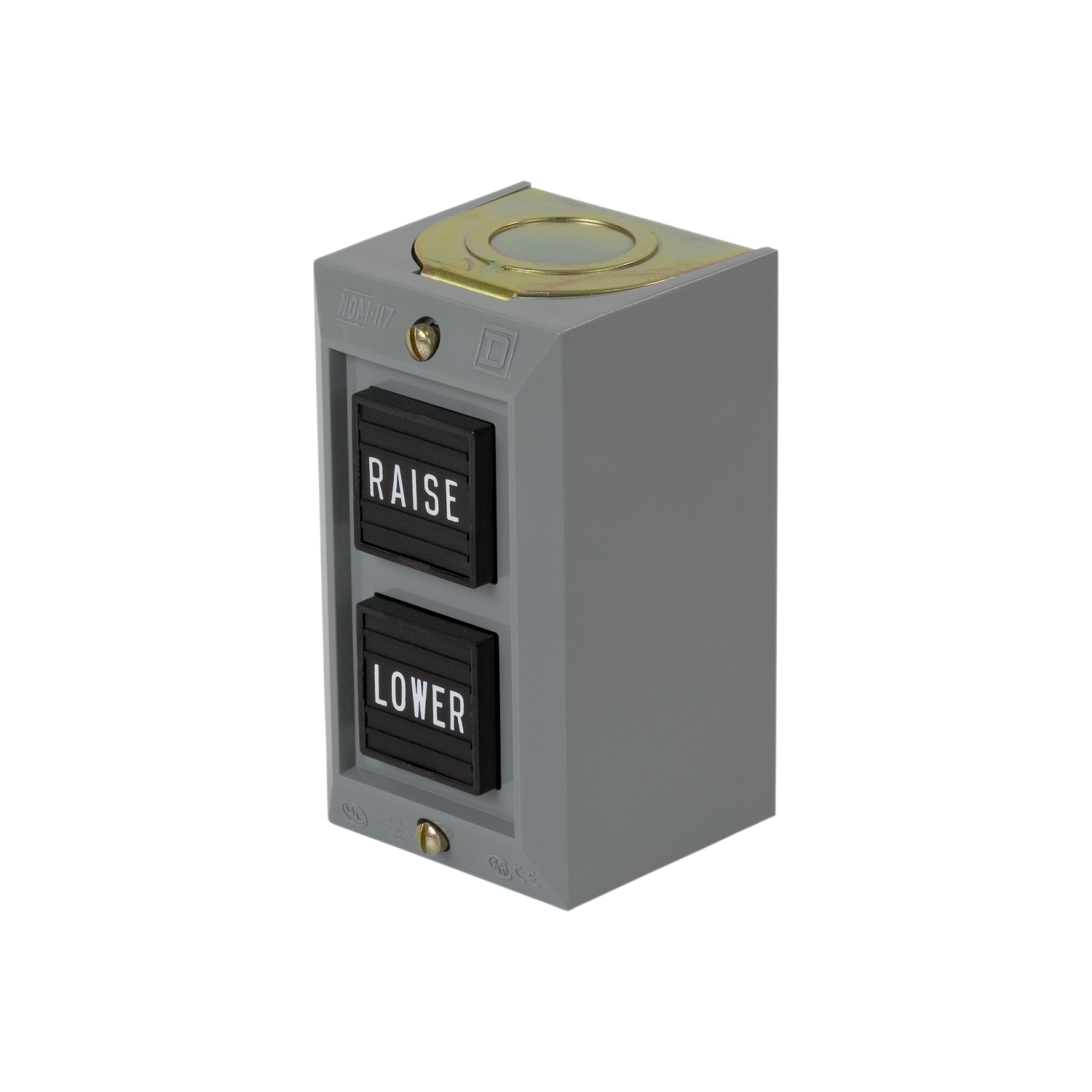

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a RAISE push button with a normally open contact and a LOWER push button with a normally open contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Manuals & Documentation
| Catalog Number | 9001BG209 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Material | Cast zinc |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459963&lang=en-us |
| UPC | 785901857372 |
| GTIN | 00785901857372 |
