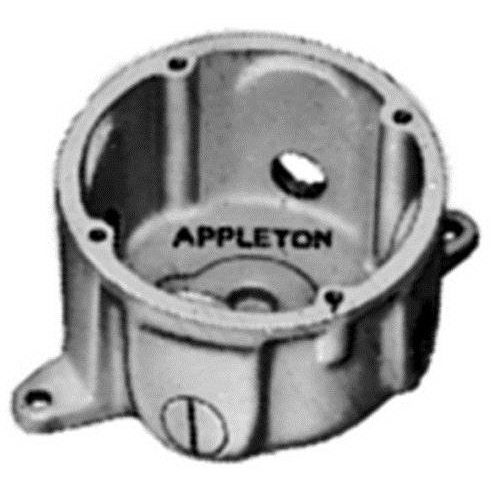

UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (4) 3/4 IN Tapped Openings, Knockouts: Yes, Height: 4-1/2 IN, Width: 6.13 IN, Depth: 2-1/16 IN, Finish: Triple-Coat (Zinc Electroplate, Chromat

Manuals & Documentation
Catalog Number JBDX-75L
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (4) 3/4 IN Tapped Openings
Knockouts Yes
Material Malleable Iron
Special Features Raintight when enclosed and gasketed with hub or blank covers; Furnished with internal ground screw and mounting lugs; Blind cover screw holes prevent conductor damage during installation, provide water-tightness; Furnished with four tapped holes and two close-up plugs; Serve as pulling fittings; Provide openings for splicing; Make straight connections and 90 DEG bends in conduit runs; Permit access to conductors for maintenance; Mounting hole: (2) 0.31 IN diameter
Standard UL 514A , UL File Number E2527, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381464055
GTIN 00781381464055
Item Type Outlet Box
Length 5.0000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 5.0000
Height UOM Inch
Weight 2.760
Weight UOM Pounds
Size 3/4
