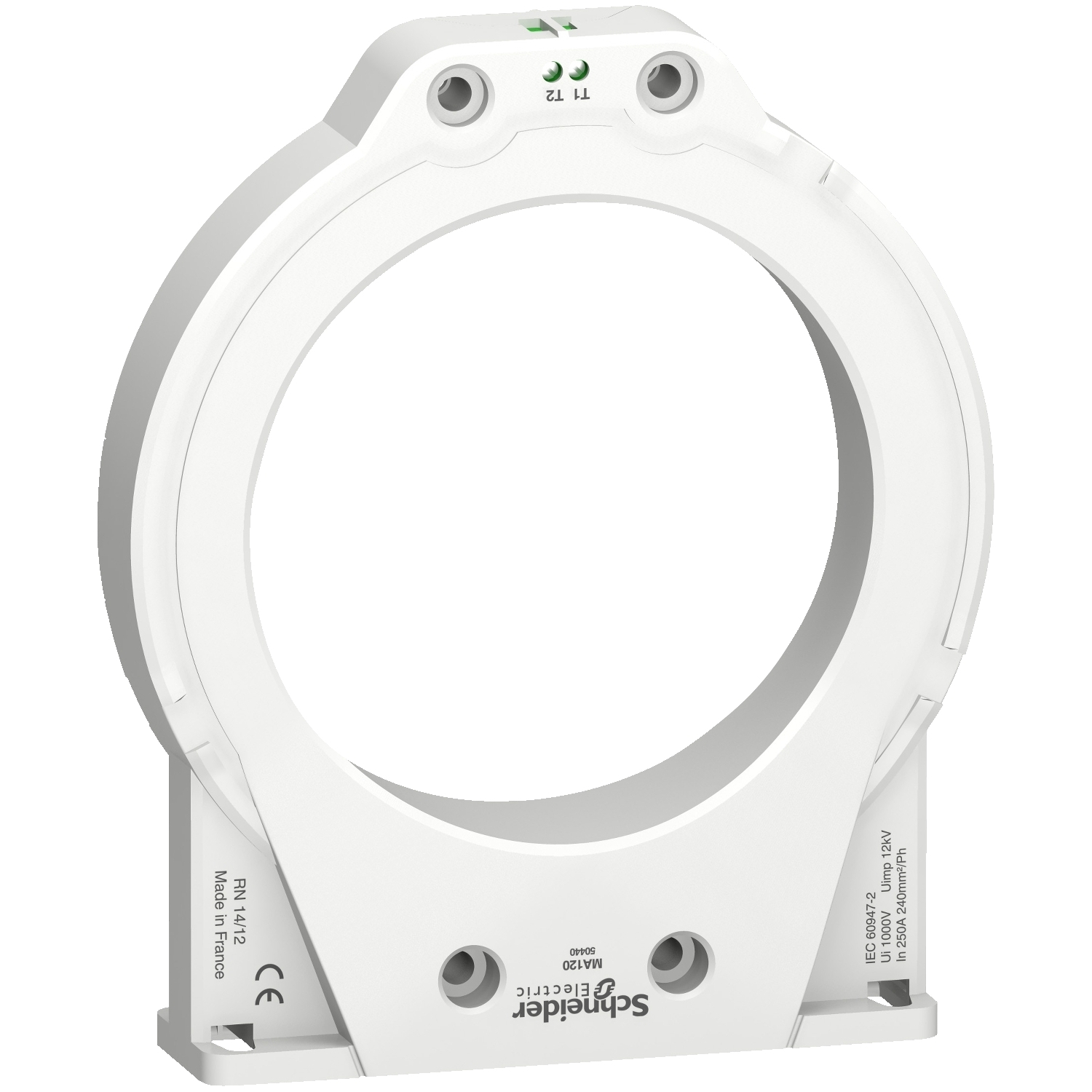

50440 Vigirex Type A MA120 Closed Toroid Sensor, 1 kV, 250 A, For Use With Vigirex Ground Fault Relay
- MFR:
- Schneider Electric
- MFR #:
- 50440
- Item #:
- 48803
50440 Vigirex Type A MA120 Closed Toroid Sensor, 1 kV, 250 A, For Use With Vigirex Ground Fault Relay
- MFR #:
- 50440
- Item #:
- 48803
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 250A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 120 millimeters and the weight is 0.450kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 60 millimeters. The maximum cross section per phase (R, S, T, N) is 240mm for a copper conductor.
Manuals & Documentation
| Catalog Number | 50440 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=845352&lang=en-us |
| GTIN | 03303430504405 |
| Diameter | Inner 120 mm |
