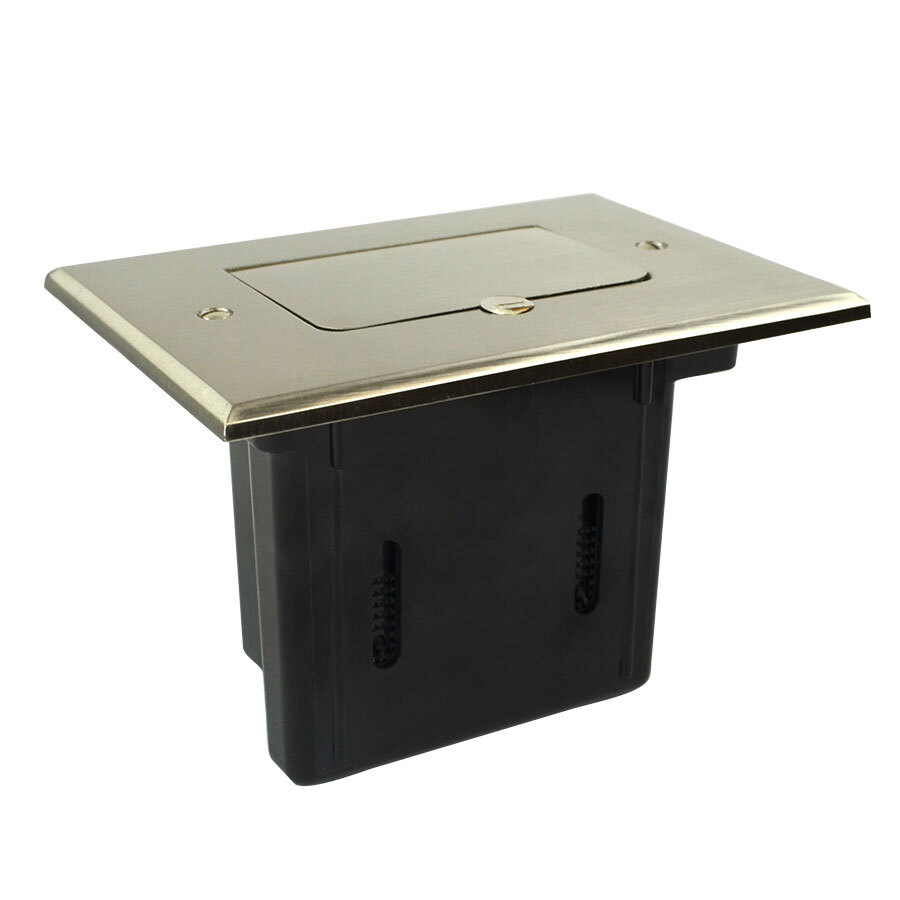

24 Cu. In. Adjustable floor box assembly with a nickel plated brass decorative style device flip lid cover - designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application - Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs - Polycarbonate box, nickel plated brass flip lid cover, galvanized steel dust plate, nonmetallic device with copper terminals and brass ground, closed cell rubber gasket - Size: Box - D=3.5, W=2.498, H=4.4 Cover - D=.222, W=4, H=5.625 - Mount with internal screws fastened to the floor joist

Catalog Number SBFB-1N
Manufacturer Allied Moulded Products
Brand Allied Moulded Products
Country of Origin China
Made in USA No
Application Adjustable floor box assembly for residential wood floor new work application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.
Cable Entry Two molded-in Speed Klamps and two 1/2" knockouts
Color Box=Black; Cover=Nickel
Construction Cast cover, injection molded box
Cubic Capacity 24
Insulation Nonconductive nonmetallic box & bare metal cover grounded
Knockouts Yes
Material Polycarbonate box, nickel-plated cover, galvanized steel dust plate, nonmetallic device with copper terminals and brass ground, closed cell rubber gasket
Mounting Screw
Special Features Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application
Standard UL 514 C
Certification Agency ECCN (Export Control Classification Number)
RoHS Indicator Under Review
UPC 085339975304
GTIN 00085339975304
Item Type Adjustable floor box assembly with a flip-lid nickel-plated decorative style device cover
Weight UOM Pounds
Size Box - D=3.5", W=2.498", H=4.4" Cover - D=.222", W=4", H=5.625"
