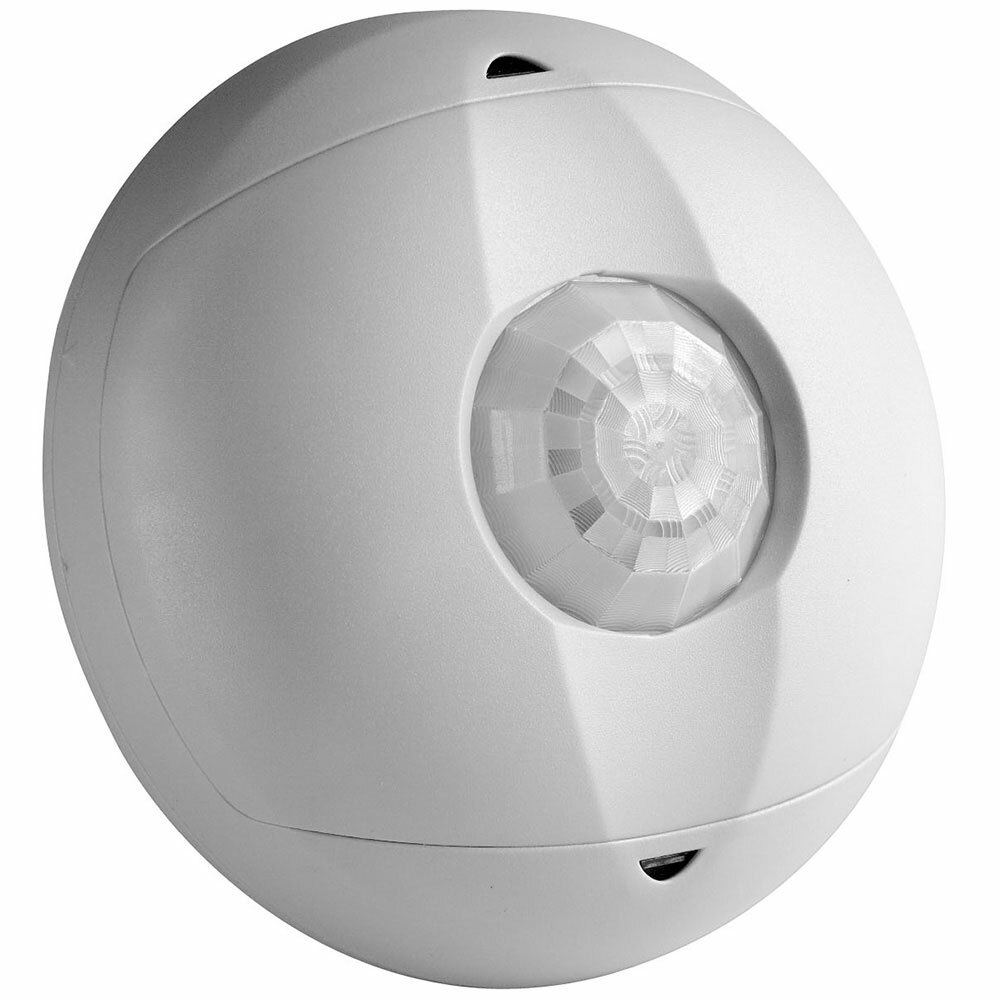

OSC04-I0W Low Voltage Occupancy Sensor, 24 V DC, PIR Sensor, 450 sq-ft Coverage, 360 deg Viewing
- MFR #:
- OSC04-I0W
- UPC:
- 078477180532
- Item #:
- 48482
Occupancy Sensor lighting control, Ceiling Mounted, PIR, 24VDC, 10mA power consumption, 450 sq ft, 360 deg (major motion: 24' diameter, minor motion: 10' diameter), red LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. USMCA compliant. Color: off white.
Manuals & Documentation
| Catalog Number | OSC04-I0W |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | China |
| Made in USA | No |
| Application | Commercial |
| Mounting | Ceiling |
| Sensing Distance | 450 SQ FT |
| Special Features | 5-Year Limited Warranty, Country of Origin United States, Small Size, Maximum Reliability, Low Cost |
| Standard | ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) |
| UPC | 078477180532 |
| GTIN | 00078477180532 |
| Item Type | Passive Infrared |
| Size | 4.20 (Dia) x 1.55 D |
| Environmental Conditions | Operating Humidity (0 PCT to 95 PCT) |
| Temperature Rating | 0 to +40 DEG C |
| Voltage Rating | 24 |
| Cross Reference Products | ATP1500CRP |
