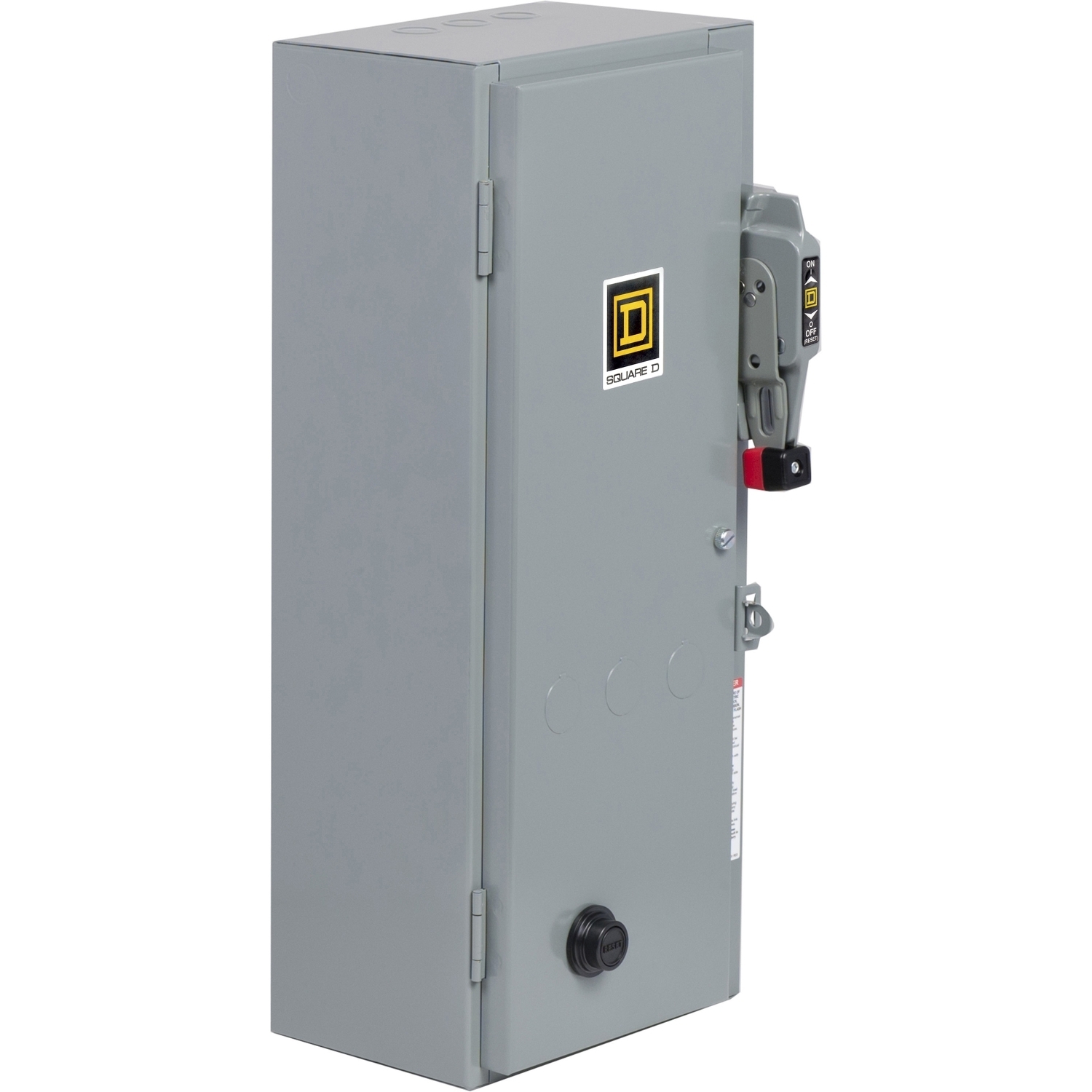

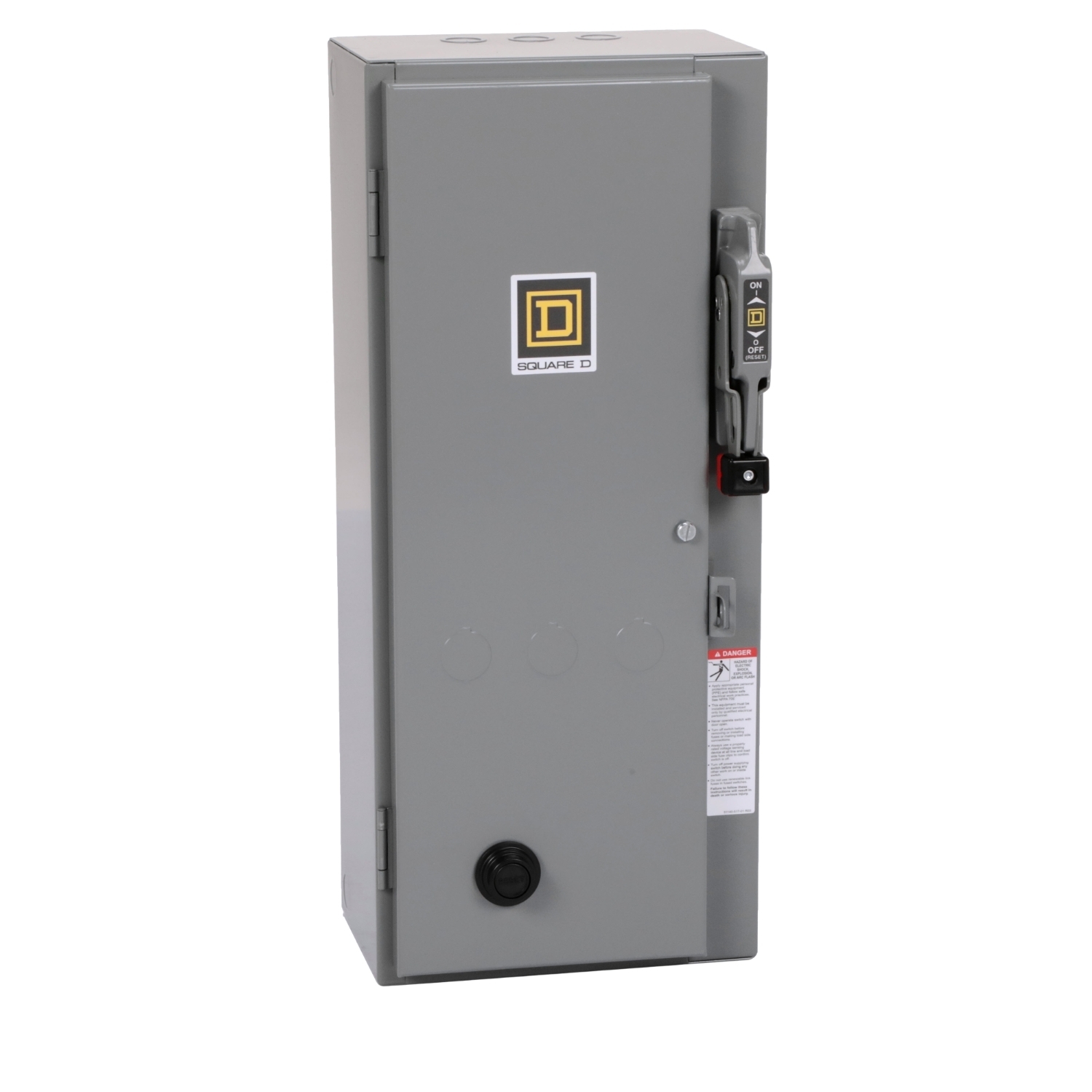

8538SBG11V02S Type S NEMA Combination Magnetic Starter With Non-Fusible Disconnect Switch, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8538SBG11V02S
- UPC:
- 785901744542
- Item #:
- 48475
8538SBG11V02S Type S NEMA Combination Magnetic Starter With Non-Fusible Disconnect Switch, 110 VAC at 50 Hz, 120 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
- MFR #:
- 8538SBG11V02S
- UPC:
- 785901744542
- Item #:
- 48475
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 and 600 VAC three phase. This is non-fusible combination starter that has non-fusible disconnect swutch. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8538SBG11V02S |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| UPC | 785901744542 |
| GTIN | 00785901744542 |
