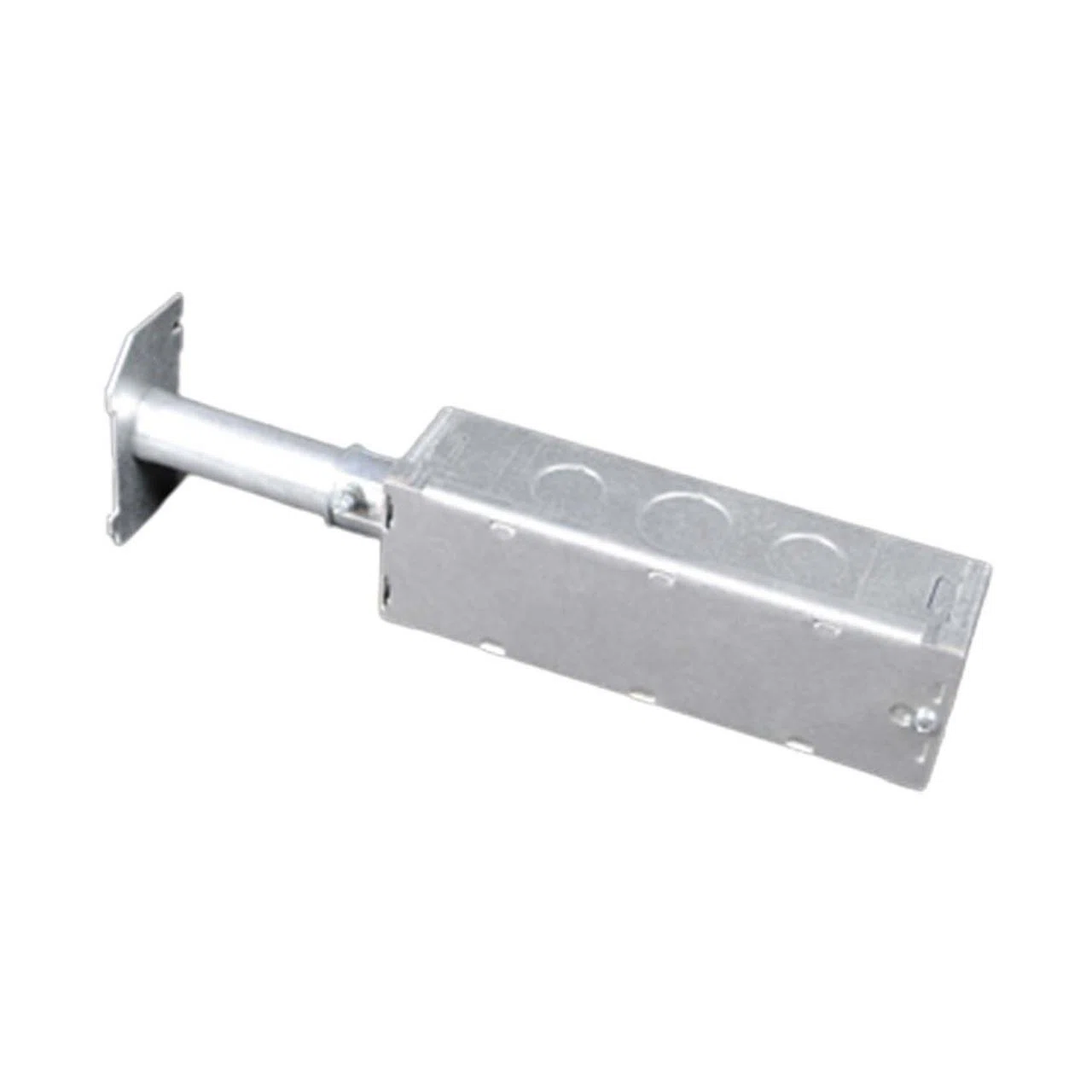

LBPBHA Pedestal Bottom Housing Unit, For Use With Work Surface Lab Bench Table Box, Screw Mount, Steel
- MFR:
- Legrand
- MFR #:
- LBPBHA
- UPC:
- 786776182866
- Item #:
- 483382
LBPBHA Pedestal Bottom Housing Unit, For Use With Work Surface Lab Bench Table Box, Screw Mount, Steel
- MFR #:
- LBPBHA
- UPC:
- 786776182866
- Item #:
- 483382
The new lab bench pedestal table boxes provide increased capacity and access to multiple services in a variety of configurations to meet the demanding needs of laboratory activity. These field wired units can be added to existing benches or designed into new lab construction. UL has evaluated these boxes for use on laboratory bench work surfaces. Pass & Seymour® receptacles were installed in the box and subjected to spill testing outlined in UL 111. The test results showed that there was no risk of fire or electrical shock as a result of the spill.
Manuals & Documentation
Features
- One gang 3/4 in trade size conduit housing assembly
| Manufacturer Part Number | LBPBHA |
| Brand | Wiremold® |
| Manufacturer | Legrand |
| UPC | 786776182866 |
| Country Of Origin | US |
| Dimensions | 3-1/2 x 2 x 4 in |
| Finish | Galvanized |
| Material | Steel |
| Specifications | Screw Mount |
| Suitable For Use With | Work Surface Lab Bench Table Box |
| Type | Pedestal |
| Alternative Part Number | 12210308 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 2 Years |
| Standards Approvals | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | cULus File No. E2961 Guide QCIT | cULus File No. E15191 Guide PVGT | Article No. 380 NEC | Article No. 12-3032 CEC |
| Application | Laboratory Work Surfaces Applications |
| Includes | Junction Box, 3/4 in Fitting |
