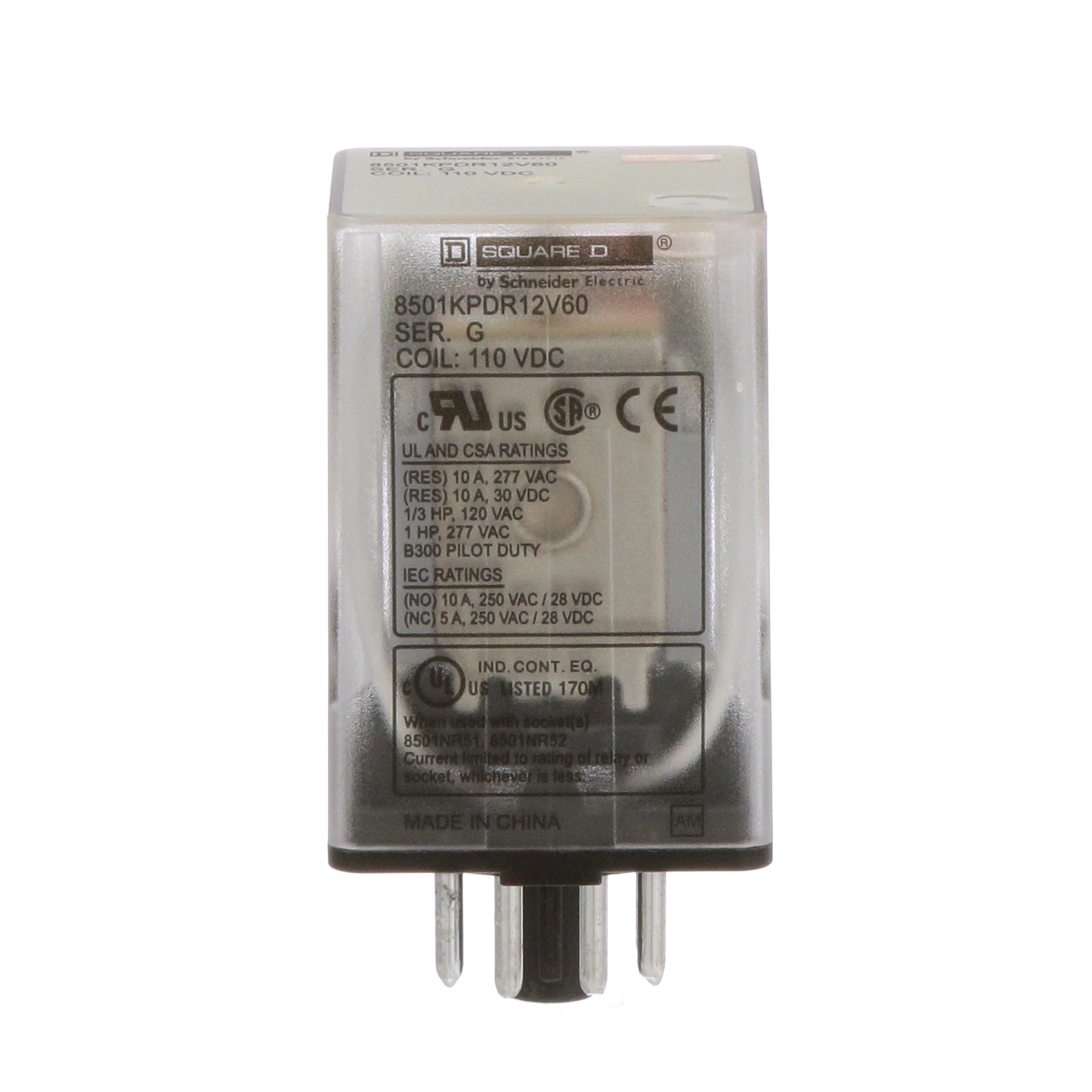

8501KPDR12V60 8501K Series Relay, 10 A, 8 pin, 2 Form C DPDT contact, 24 V DC v coil
- MFR:
- Schneider Electric
- MFR #:
- 8501KPDR12V60
- UPC:
- 785901338536
- Item #:
- 482747
8501KPDR12V60 8501K Series Relay, 10 A, 8 pin, 2 Form C DPDT contact, 24 V DC v coil
- MFR #:
- 8501KPDR12V60
- UPC:
- 785901338536
- Item #:
- 482747
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 110 VDC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Manuals & Documentation
Features
- Horsepower Rated
- DPDT Latching Relay
- AC or DC Operation
- General purpose relay type
- Without test button manual operator
- Silver alloy (AgNi) contact material
- 20 ms - pick-up20 ms - drop-out operating time
- With toxic heavy metal free
| Manufacturer Part Number | 8501KPDR12V60 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901338536 |
| EAN | 0785901338536 |
| Country Of Origin | CN |
| Amperage Rating | 10 A |
| Dimensions | 2.66 in H x 1.4 in W x 1.4 in D |
| Mounting Type | Socket |
| Series | 8501K Series |
| Temperature Rating | -40 to 55 deg F |
| Type | Relay |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Standards Approvals | PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | UL Listed | UL Recognized | CSA | CE |
| Application | For multipole switching applications at 300 VAC or lower |
| Coil Voltage | 24 V DC |
| Contact Form | 2 Form C DPDT |
| Contact Rating | 3 A |
| Number Of Pins | 8 |
| Power Rating | 1 hp at 277 VAC,0.33 hp at 120 VAC |
| Terminal Type | Tubular |
