MC25X75WH2 Panduct Type MC Metric Wiring Duct With DIN 43659 Mounting Holes, 0.19 in Narrow Slot Slot, 0.97 in W x 2.35 in D, PVC
- MFR:
- Panduit
- MFR #:
- MC25X75WH2
- UPC:
- 074983752393
- Item #:
- 482518
MC25X75WH2 Panduct Type MC Metric Wiring Duct With DIN 43659 Mounting Holes, 0.19 in Narrow Slot Slot, 0.97 in W x 2.35 in D, PVC
- MFR #:
- MC25X75WH2
- UPC:
- 074983752393
- Item #:
- 482518

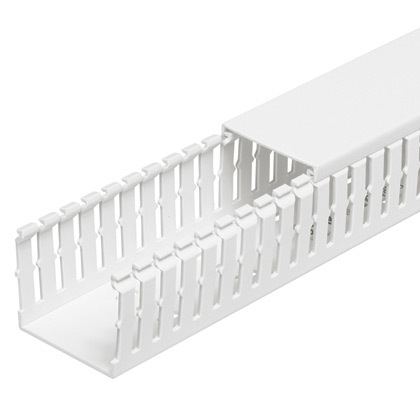

The MC25X75WH2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 24.6 mm x 72.4 mm (0.97 x 2.85). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. Cover included. Color - White. 20 Meters (10 sticks each) - Bases & Covers per package.
Manuals & Documentation
| Catalog Number | MC25X75WH2 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | White |
| Connection | DIN Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.2 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983752393 |
| GTIN | 00074983752393 |
| Item Type | Wiring Duct Base with Cover |
| Length | 78.74 |
| Length UOM | Inch |
| Width | 0.97 |
| Width UOM | Inch |
| Size | 0.97 x 2.35 |
