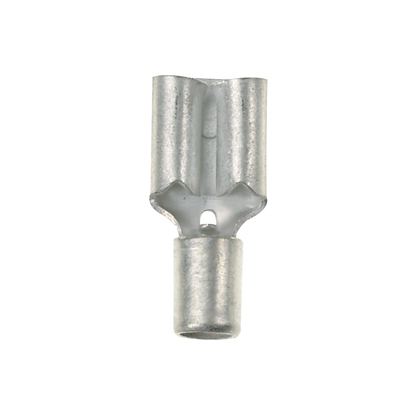

D18-188-C Pan-Term Type D Loose Piece Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Internal Serration/Sleeve/Standard Barrel, Brass, Metallic, Non-Insulated
- MFR:
- Panduit
- MFR #:
- D18-188-C
- UPC:
- 074983822065
- Item #:
- 480005
D18-188-C Pan-Term Type D Loose Piece Vibration-Resistant Female Disconnect, 18 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Internal Serration/Sleeve/Standard Barrel, Brass, Metallic, Non-Insulated
- MFR #:
- D18-188-C
- UPC:
- 074983822065
- Item #:
- 480005
The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.187 x 0.020 (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.58 (14.7 mm) long and 0.23 (5.8 mm) wide. The disconnect is non-insulated, tin-plated, has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100.
Manuals & Documentation
| Catalog Number | D18-188-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Standard |
| Finish | Tin-Plated |
| Insulation | Non-Insulated |
| Material | Brass |
| Standard | UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 , C22.2 No.153 |
| UPC | 074983822065 |
| GTIN | 00074983822065 |
| Item Type | Disconnect |
| Temperature Rating | 302 Degrees Fahrenheit (150 Degrees Celsius) |
| Voltage Rating | 2000 |
| Wire Size | #18 AWG |
