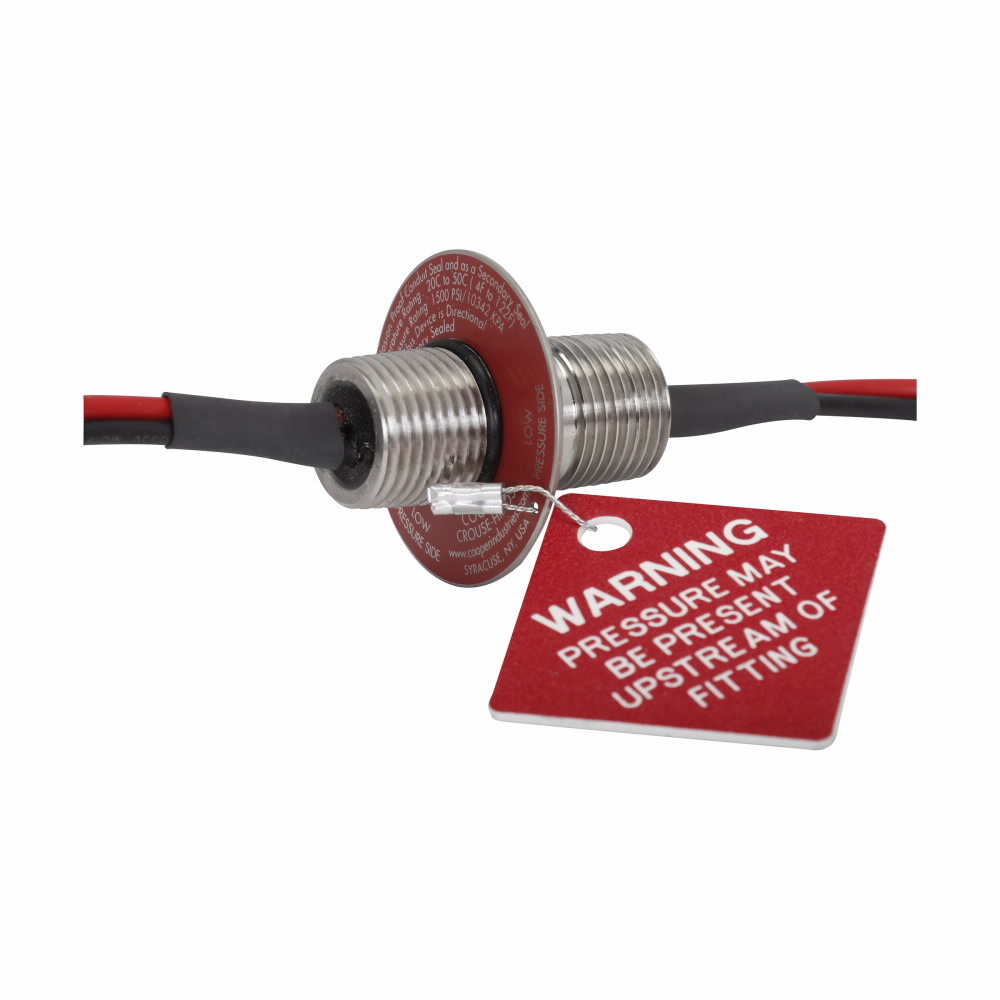

CH6DR500X004D 16G 4-Wire Ultra High Pressure Seal, 1/2 in MNPT x 1/2 in NPT, For Use With Conduit, Cable and Conductor, 16 ga Stainless Steel, Natural
- MFR:
- Eaton Crouse-Hinds
- MFR #:
- CH6DR500X004D 16G
- UPC:
- 662276133877
- Item #:
- 478038
CH6DR500X004D 16G 4-Wire Ultra High Pressure Seal, 1/2 in MNPT x 1/2 in NPT, For Use With Conduit, Cable and Conductor, 16 ga Stainless Steel, Natural
- MFR #:
- CH6DR500X004D 16G
- UPC:
- 662276133877
- Item #:
- 478038
If the primary seal in an instrument should fail, the Crouse-Hinds series CH6DR ultra high pressure seal will prevent gases from migrating through the electrical system into a non-classified location. Rated to 1500 PSI, these seals are designed to prevent the passage of gases under pressure through conduits, cables and conductors. They are ideal where volatile liquids or gases are stored, processed or transported under pressure.
| Catalog Number | CH6DR500X004D 16G |
| Manufacturer | Eaton Crouse-Hinds |
| Brand | Eaton |
| Country of Origin | Canada |
| Made in USA | No |
| Application | Ind Facilities & Factories - Industrial Facilities/Factories - Other |
| Connection | 1/2” MNPT x 1/2” NPT |
| Construction | Conforms to Section 18-108 and 18-158 of the CEC for The Requirements of a Secondary Seal. |
| Enclosure | Class I, Division 1, Groups B, C, D |
| Finish | Natural |
| Material | Stainless steel body |
| Special Features | Each fitting is tested at 1.5 times working pressure (Max. working pressure 1500 PSI) as a gas and liquidtight explosionproof fitting. Each seal is al |
| RoHS Indicator | Contact Manufacturer |
| UPC | 662276133877 |
| GTIN | 00662276133877 |
| Item Type | Ultra high pressure seal |
| Weight UOM | Pounds |
| Size | 16 gauge |
